AJA OG-3-FR OpenGear-Compatible Rackframe features Flexible Input/Output |
|||||
| Home > Main > Convert > OG-3-FR | |||||
|
|||||

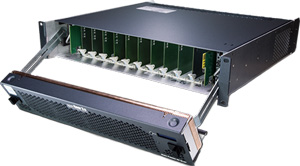

| Overview openGear is an open-architecture, modular frame system designed by Ross Video and supported by a diverse range of terminal equipment manufacturers, which now includes AJA. The AJA OG-3-FR is a 2RU high openGear frame which is compatible with any AJA openGear card. The frame has a 20-slot capacity with excellent cooling capabilities for high-density applications and compatibility with advanced openGear connectivity options for supported cards. Easy Access A fold-down front panel provides you quick access to any of the installed cards for easy maintenance or replacement without having to remove the rack frame or climb behind the rack. |
|||||
|
|||||

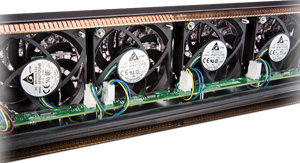

| Cooling While many of AJA's openGear cards are energy-efficient, the high-density nature of rackmount cards can generate heat in a small space. Integrated fans in the OG-3-FR keep internal components operating at acceptable temperatures, leading to improved reliability and longer card life. |
|||||
|
|||||
| Flexible I/O The modular rear panel allows custom I/O connections per card (included with individual cards). |
|||||
|
|||||
| Failsafe The optional redundant power supply provides a secondary power source in the event of a primary power failure. Connectivity A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.* Note: Current AJA openGear cards do not integrate with Dashboard. |
|||||
|
|||||
