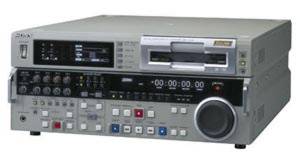

GENERAL

Power requirements AC 100 to 240 V, 50/60 Hz

Power consumption 110 W

Operating temperature 5 °C to 40 °C (41 °F to 104 °F)

Storage temperature -20 °C to 60 °C (-4 °F to 140 °F)

Operating humidity Less than 80%

Storage humidity Less than 90%

Mass 18 kg (39 lb 10 oz)

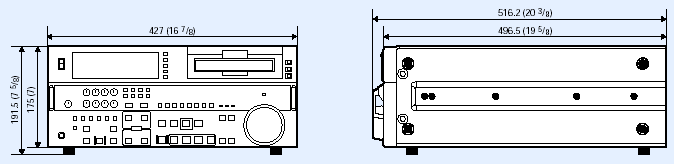

Dimensions (W x H x D) 427 x 175 x 496.5 mm (16 7/8 x 7 x 19 5/8 inches)

Tape speed 28.221 mm/s

Recording/Playback time

Standard size 184 min. with PDV-184ME/184N/184MEM

Mini size 40 min. with PDVM-40ME/40N/40MEM

Fast forward/Rewind time

Standard size Less than 3 min. with PDV-184ME/184N/184MEM

Mini size Less than 1 min. with PDVM-40ME/40N/40MEM

Search speed

Shuttle mode Still to ±60 times normal speed in forward and reverse

Digital slow mode ±1 times normal speed in forward and reverse

VIDEO PERFORMANCE

Band width (via analogue component I/O)

Luminance 25 Hz to 5.5 MHz +1.0/-2.0 dB

5.75 MHz +0/-3.0 dB (Typical measurement)

Chrominance 25 Hz to 2.0 MHz +1.0/-2.0 dB

S/N ratio (via analogue component I/O)

More than 55 dB

K-factor (K2T, KPB) Less than 2.0%

Y/C delay Less than 30 ns

AUDIO PERFORMANCE

Frequency response

2CH mode (48 kHz/16-bit) 20 Hz to 20 kHz +0.5/-1.0 dB

4CH mode (32 kHz/12-bit) 20 Hz to 14.5 kHz +0.5/-1.0 dB

Dynamic range More than 90 dB

Distortion (THD + N) Less than 0.05%

INPUT SIGNALS

REF. Video (BNC x 2, loop-through connection)

Composite, 1.0 Vp-p, 75 ½, sync negative

Video (BNC x 2, loop-through connection)

Composite, 1.0 Vp-p, 75 ½, sync negative

Component (BNC x 3)

Y 1.0 Vp-p, 75 ½, sync negative

R-Y 0.7 Vp-p, 75 ½ (100%)

B-Y 0.7 Vp-p, 75 ½ (100%)

S-Video (DIN 4-pin x 1)

Y 1.0 Vp-p, 75 ½, sync negative

SDI (BNC x 2, active-through connection)

Conforms to Serial Digital Interface (270 Mb/s),

ITU-R BT.656

SDTI (QSDI) (BNC x 1) Conforms to SDTI (270 Mb/s), SMPTE 305M/322M

i.LINK (DV In/Out) (6-pin x 1) IEEE1394-based

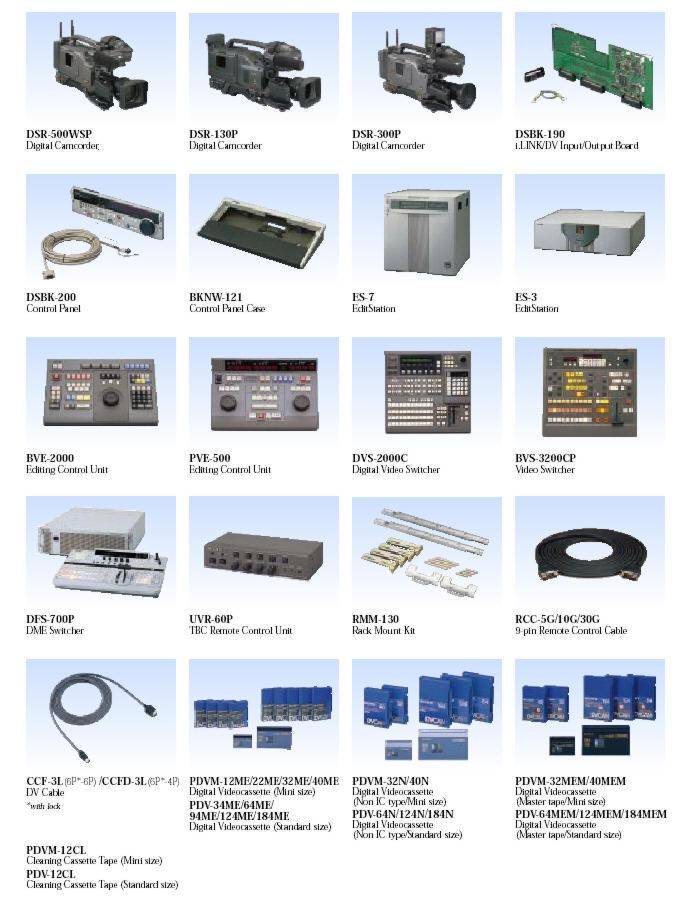

* Using optional DSBK-190 i.LINK/DV Input/Output Board

Audio (XLR 3-pin female x 4) -6/0/+4 dBu, 600 ½ on/off/-60 dBu, high impedance

AES/EBU (BNC x 2) 75 ½, unbalanced

Time Code In (BNC x 1) 0.5 Vp-p to 18 Vp-p, 3 k½, unbalanced

OUTPUT SIGNALS

REF. Video (BNC x 1) 0.3 Vp-p, 75 ½, sync negative

Video 1/2/3(SUPER) (BNC x 3) Composite, 1.0 Vp-p, 75 ½, sync negative

Component (BNC x 3)

Y 1.0 Vp-p, 75 ½, sync negative

R-Y 0.7 Vp-p, 75 ½ (100%)

B-Y 0.7 Vp-p, 75 ½ (100%)

S-Video (DIN 4-pin x 1)

Y 1.0 Vp-p, 75 ½, sync negative

C 0.3 Vp-p, 75 ½ (at burst level)

SDI (BNC x 3) Conforms to Serial Digital Interface (270 Mb/s),

ITU-R BT.656

SDTI (QSDI) (BNC x 1) Conforms to SDTI (270 Mb/s), SMPTE 305M/322M

i.LINK (DV In/Out) (6-pin x 1) IEEE1394-based

* Using optional DSBK-190 i.LINK/DV Input/Output Board

Audio (XLR 3-pin male x 4) +4/0/-6 dBu (selectable by menu)

Monitor (RCA x 1) -11 dBu, 47 k½, unbalanced (-18 dBFS)

Headphone (JM-60 headphone jack x 1)

-° to -13 dBu, 8 ½, unbalanced (-18 dBFS)

AES/EBU (BNC x 2) 75 ½, unbalanced

Time Code Out (BNC x 1) 2.2 Vp-p, 75 ½, unbalanced

REMOTE

RS-422A D-sub 9-pin (female) x 2

Video Control D-sub 15-pin (male) x 1

Control Panel D-sub 15-pin (female) x 1

SUPPLIED ACCESSORIES

AC power cord x 1

Operating instructions x 1
