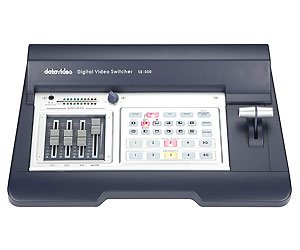

DataVideo SE-500 4 Input Analogue Mixer / Switcher |
Product code : SE500
| PAL version |
 |
| NTSC version |
|
|
| CB-42 Tally Cable |
|
|
Overview
Coming with a color correction feature, four video input groups( 4 being composite and 4 S-Video type), an audio mixer for four
channels, video transition effects, two microphone inputs and a MIDI control interface, an RE-233 remote control interface and other amazing professional features, the DataVideo SE-500 is an
absolute bargain.
The SE-500 defines a video switcher, integrating analog input and digital processing. It is a popular video switcher that comes with
a unique feature known as Quad Preview. This is used in displaying indicators for next video effects and tally light signals. The SE-500 is compact in size and includes all the features you would
need in a video switcher and available in other models that are more expensive than the SE-500. With this model, the operator can further monitor some important activities including all video
transition effects; camera activities while at the same time they can be able to observe as many as four different video input sources.
Main Features
Digital Video
There are talks of digital video all over, and nobody is heard talking about analog equipment. Think about Video 8 cameras,
Betacam and S-VHS cameras and their application or relevance in this era of digital systems. The best thing about the SE-500 as a digital video switcher it is that it allows for analog input. You
won't have to throw away your analog systems as you can still use them to produce high-quality videos. The SE-500 is simple to operate and allows for multi-input, producing high-quality output
and best of all, it is available at affordable prices.
Professional Features
The SE-500 is popular for its wide array of professional features that it provides users with. This video switcher model allows for
input of 4 different video groups, and these include 4x S-Video and 4X composite. It has a MIDI control interface and supports RS-232 interface for remote control which enhances its ease of use. Other
professional features available in the SE-500 is color correction, two microphone inputs, and digital transition effects as well as
four audio mixer channels.
Compact
With the SE-500, the operator may use only one monitor to view as many as four different video input sources. You can use this model
to switch videos that may be as far as 200 meters away using DV Cameras. To achieve this, though, you will need different accessories such as the Datavideo DAC-6 (this includes a component
converter, Y/C and DV to Composite), a DV Repeater (VP-314) and 1=40, 10 and 20 meters DV cables.
Genlock No Longer Necessary
The SE-500 comes with an inbuilt 4:2:2 frame synchronizers and a
Dual Channel Time Base Corrector and these eliminate the need to run external sync when using this switcher. Think about instances where more than a single activity is taking place and the audience
needs to be kept informed on what is being covered at different angles; such a scenario makes a perfect fit for the SE-500 video
switcher.
Wide Application Range
The great and professional features presented by the SE-500 and its ease of use coupled up by its low price makes it a great option for
a wide range of applications. Think outdoor activities, small studios, pubs or clubs, schools or any settings where a single camera wouldn't be enough to cover all the action then SE-500 will
be a great addition.
Additional Features
Other key features found with this model include
• An optional YUV input
• A T-Bar control for effects of digital video
transitions
• A digital processor that guarantees high-quality images
• Support for some different video effects including Quad,
Wipe, Split, PIP, Dissolve, Fade
• Color processing for correction of videos
Specification
| Video Formats |
Analogue S-Video (Y/C) and Composite PAL (NTSC is available as a different model)
YUV at Sony Betacam Standard |
| Video Inputs (4 Max) |
4 x Composite
4 x S-Video (Y/C) |
| Video Output |
Composite and S-Video
Optional YUV output
Quad Preview output with Tally light indicator and next video effects indicator |
| Audio Inputs |
2 x Microphone
1 x Stereo Audio (RCA) Aux |
| Audio Output |
Main output and headphone output with volume control |
Dual Channel Full Frame
Synchronizer TBC |
4:2:2, 13.5MHz |
| Digital Effects |
A/B Dissolve
PIP ,Quad , Split , Wipe, Fade
(Digital Effects with T-Bar manual control) |
| Headphone Monitor Jack |
Stereo Audio, 1.0Wrms in 16ohms |
RS232 Data Control Port for
Remote Control |
Yes |
| MIDI Control Interface |
Yes |
| Colour Processing |
Brightness: +/-30%
Contrast: +3dB / -6dB
Colour: +6dB / -10dB |
| Video Bandwidth |
Component (YUV): > 4.8MHz
S-Video (Y/C): > 4.8MHz
Composite: > 4.8MHz
Audio: 20Hz - 20kHz, +/-3dB |
| Signal/Noise Ratio (SNR) |
Video: > 50dB
Audio: > 70B |
| DG, DP |
+/-3%, 3 degrees |
| Audio THD |
> 0.1% |
| Dimensions |
380x55x245mm (WxHxD) |
| Weight |
2.1kg |
| Power |
Power Adaptor Input: AC 90-240v auto
Power Adaptor Output: DC 12V 15W |
| Accessories |
AC/DC Power Adaptor
BNC cable x 2
S-Video (Y/C) cable x 2
Audio/Video Phono cables x 1 set
Component (YUV) cable
Instruction Manual |
|
Carrying Case For DataVideo SE-500 |
 |
| Pelican 1560 And 1564 |
Pelican 1560
For more details, click here
|
Pelican
1564 ( 1560 Case With Padded Dividers )
For more details, clickhere
|
| |
|
 |
Hard carrying
case JC-5023N
Interior dimension in mm
L X W X H (mm)
421 X 303 X 430
|
|
|
|
