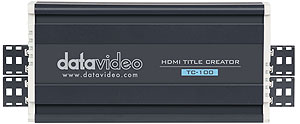

Datavideo TC-100 HDMI Title Creator
Product Code: TC-100
This model has been
discontinued
Features
-
Live Title Generator: Support HDMI input and output for
laptop CG overlay mode
-
Support Luma Key Title and Logo overlay function
-
Real-time Graphics/Titles operation
-
Supports HD video up to 1080p 50/60
-
Free CG software CG-200 included
-
No additional PCI card required, title editing on laptop
-
Compatible with Windows 7/8 or above
|
|
|
The TC-100 is designed to be
portable and rugged as well as quick
and easy to set up in the field, in
the mobile broadcasting, live
conferences, and dynamic video
presentations. Using a standard
laptop, it enables users to create
and deliver professional on-screen
graphics and titles in real-time.
Not only it is easy to operate, the
TC-100 is designed to be intuitive
and responsive under the pressure of
a fast-paced live event. It allows
producers to create professional CG
overlays with a Windows laptop
instead of transporting a high-end
desktop PC with PCIe cards fitted.
The system provides:
1. Overlay a Graphics/Titles
signal from PC HD HDMI output on
passing through TC-100 HD HDMI Live
video signal.
2. The
Graphics/Titles signal have two
options: CG Titles overlay and Luma
Key overlay
3. Overlay a Logo on
the output signal of the TC-100.
|
|
Video Input |
HDMI x 2 |
|
Video Output |
HDMI x 2 |
|
Input Format |
1080p 50/59.94/60
1080i 50/59.94/60
720p 50/59.94/60 |
|
Control |
By Dip Switch/PC |
|
F/W Upgrade |
Ethernet (RJ45) |
|
Power |
7-15V DC |
|
|
