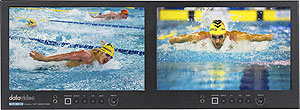

Datavideo TLM-102 Dual 10" LCD Monitor
Product Code: TLM102
Features
- 1280*800 IPS Panel resolution
- Dual monitor, 4RU rack mount
- Support 3G-SDI video input with
loop-through output
- Support HDMI input with loop-through
output
- Support column (YRGB peak), time
code, waveform, vector scope & audio level
meter, peaking,
zoom, pix to pix, underscan, check field, etc
- SDI, HDMI cross conversion
- Individual adjustments of
Brightness, Contrast, Color Saturation and LED
Backlight
Level for each monitor
- Color temperature for user to select
- Front panel headphone jacks
- User-definable function buttons F1,
F2
|
|
The TLM-102,
Dual 10.1” 4RU Rack mount monitor,
is a broadcast quality monitoring
system with built-in
vectorscope/waveform monitor and
video signal converters. Each
monitor has one SDI input and one
HDMI input. Each monitor also has
one SDI output and one HDMI output.
Built-in signal conversion allows
each monitor to use one input for
monitor display and the other input
for signal conversion. The same can
be done simultaneously with monitor
2.
The 4RU rack mount design
offers various of mounting methods
for on-site monitoring, video wall
and video production vans. Excellent
display with advanced auxiliary
functions also provides viewing &
friendly user experience.
TLM-102 pairs perfectly with the
SE-500HD Video Switcher for
multi-view monitoring on the left
side and program output monitoring
on the right (or vice-versa). |
- 1x TLM-102 product
- 1x AD
Switch DC 12V with AC Cord
-
1x Tally Convertor
- 2x Screw
φ3.0*6m/m
- 4x Screw M5 x
10mm
- 1x Thank You Card |
|
