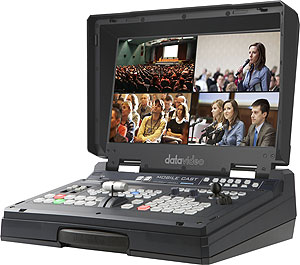

Datavideo HS-1600T 4-Channel HD/SD HDBaseT Portable Video
Streaming Studio
Product Code: HS1600T
This model has been
discontinued
Features
- Supports up to FHD 1080p
- Built-in HDBaseT technology allows
control of up to three PTC-150T or PTC-140T Pan, Tilt, and
Zoom cameras, as well as send power to PTC-150Ts by PoE.
- Support different bitrate for
recording to SD card and streaming function
- One button set up for recording and
streaming
- Broadcast quality H.264 network
streaming
- Pan, tilt, and zoom with speed
control by Joystick
- 4 video inputs (RJ-45 x 3 + HDMI x
1)
- 3 video outputs (HDMI x 3)
- Audio inputs: XLR Analogue x 2 + RCA
Analogue (L/R) x 2
- Flexible Mix/Effects: PIP, WIPE,
Mix, Fade
- Tally Output
- One 17.3-inch with a resolution of
1920x1080 dots
|
|
|
The World's first single wire
switcher with built-in encoder.
The HS-1600T is a 6-in-1 product
that will simplify your workflow. It
is a portable HDBaseT hand carried
studio that has a switcher, monitor,
camera controller, audio mixer,
streaming encoder, and recorder
built in.
The built-in
HDBaseT technology allows receiving
of 1080p signals from three
PTC-150TL or PTC-140T HDBaseT PTZ
cameras via CAT6 cable. It features
PoE to provide power to three
PTC-150TL or PTC-140T cameras,
making installation fast and easy.
Keeping things user friendly, you
only need to push one button to
stream to your preferred CDN and
record to a SD card simultaneously.
Another great feature of the
HS-1600T is the integrated joystick
for controlling the pan, tilt, and
zoom of the PTC-150TL cameras. You
can also adjust focus and iris, as
well as access the camera's menu.
There are four preset buttons for
each camera, making it easy for an
operator to recall preset shots with
a press of a button.
The all
inclusive features of the HS-1600T
make it ideal for various
applications such as live events,
worship, seminars, and corporate
presentations.
|
- 1x HS-1600T Product
- 1x AD
Switch DC 48V with AC Cord
-
3x Ethernet Cable
- 1x Thank
You Card |
|
