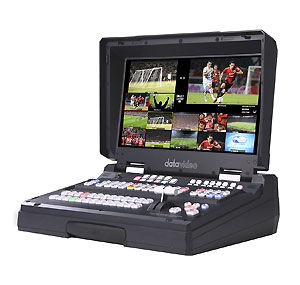

The HS-2850 is a cost-effective,
12-channel, 10-bit 1920 x 1080i
broadcast-quality mobile hand carry
switcher. Featuring 12 digital
inputs, it is designed for live
events and TV programs that need to
blend a variety of video and audio
sources. HS-2850 is light-weight,
portable, and powerful, with
features perfect for mobile
switching.
As a complete AV
package, the HS-2850 HD mobile
studio enables users to switch
seamlessly between video and audio
sources and blend high-quality
digital content on the fly.
Advanced features include a
17.3-inch video monitor which
displays multiple sources, as well
as preview and program.
The
system is equipped with an eight-way
intercom system and is supplied with
four belt packs for effective
communication between the whole
production crew.
The HS-2850
is ideal for TV and video
professionals working in outside
broadcast or temporary video
studios, such as theatres or
conference centers. The HS-2850 is
also a great value solution for the
worship, education, and AV markets.
Highlights:
-
Supports 12 HD or SD Inputs in a
variety of configurations:
HD
Mode: (1) 12 HD-SDI , (2) 9 HD-SDI +
3 HDMI
SD Mode: (1) 12 SD-SDI ,
(2) 9 SDI + 3 HDMI
- 6
user-defined output options on 3 SDI
output channels.
- 1 HDMI output
for multi-view monitoring
- 4x
XLR Analogue Audio Inputs, 2x XLR
Analogue Audio Outputs,
- User
defined and positioned dual PIP.
- Two DSK with a set up choice of
basic Luma key or alpha channel.
- Built-in title overlay system
(TC-200) that works with CG systems.
- Cut, Mix and Wipe with border
-
Logo and Clock on screen
- XPT
(Cross Point Assignment)
- Audio
delay for each de-embedded audio
source.
- SMPTE/ EBU Audio
selectable via OSD.
- Black burst
PAL or Tri-Level Sync Reference.
- Tally, GPI support
- Build in
8CH Intercom system
- One
17.3-inch with a resolution of
1600x900 dots
|
