IF-2D3D1 3D Image Processor |
|
  |
|
Product Code:
IF2D3D1
|
The IF 2D3D1 is a unique processor
designed for 3-D content creators. It converts live or recorded
2-D video into stereoscopic video in real time, saving
significant time and production costs. Standard 2-D cameras may
now be used as part of a 3-D production.
The converter is ideal for live event production such as
sporting events, music concerts and other live performances. It
is also an essential component in the post production workflow
when repurposing archive 2-D content to 3-D.
Additionally, the IF2D3D1 provides 3-D format conversion
allowing separate L/R camera signals to be displayed on a single
monitor such as JVC's GD-463D10.
|
|
|
You can now perform real-time conversion
of 2D video resources, including high-quality HD, into a
variety of 3D formats with speed and simplicity thanks to
industry-first algorithms developed by JVC. What's more,
JVC's new IF 2D3D 1 3D Image Processor supports L/R mixing
during 3D recording, thus cutting the time required for 3D
content creation. This one unit is the key to transforming
your workflow, providing new solutions for virtually any 3D
content creation scenario, whether repurposing 2D resources
or shooting new material in 3D.
- Real-time 2D/3D conversion using
unique JVC algorithms
JVC's 2-D/3-D technology is by far the most advanced and
efficient real time conversion technology that exists.
Connect a conventional 2D high definition source to either
the HDSDI or the HDMI input. The source can be either a live
camera or recorded material. Each frame of the the 2D signal
is analysed with depth estimates based on content. Parallax
and intensity adjustments can be made to adjust the 3D
effect. A stereoscopic output is generated in real time.
Select from four different 3D mixed formats for stereo video
output, or output the L/R signals separately for editing.
- Compatible with
a wide range of 3-D mixed formats

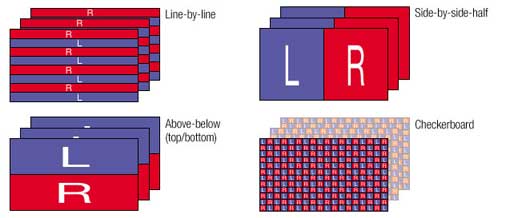

For maximum flexibility you can pick from four 3D mixed
formats* for stereo video output:
line-by-line
side-by-side-half
above-below
checkerboard.
In addition, you can output discrete L & R signals for
processing or dual projection, and also stereo output for TV
display using the HD-SDI and HDMI outputs (1 each). This
means you can hook up the IF 2D3D 1 directly to projectors,
LCD and PDP displays. Anaglyph and sequential viewing modes
offer additional convenience providing multiple ways to
check 3D content.
- Parallax and 3D
Intensity adjustment
For enhancing the 3D effect to make it easier to view, the
IF2D 3D1 offers two adjustments, Parallax and 3D Intensity.

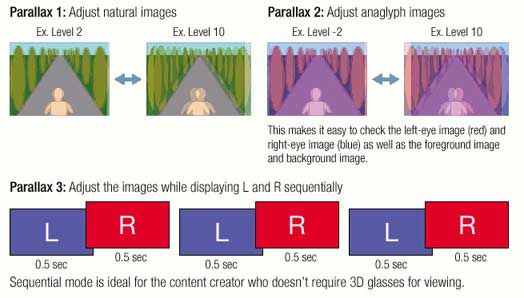

Parallax adjustment: This displaces the left-eye and
right-eye images horizontally, offering a choice of 3
different viewing modes. With Parallax 1, you can adjust the
images naturally, while Parallax 2 presents anaglyph images.
The third mode is Parallax 3, which allows you to make
adjustments while displaying the left and right images
sequentially.

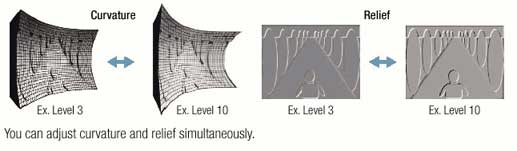

3D
Intensity adjustment: This allows
virtual, simultaneous adjustment of curvature and relief, to
manipulate the intensity of the 3D effect. As with Parallax
adjustment, there are three viewing modes: Intensity 1
(natural), Intensity 2 (anaglyph), and Intensity 3
(sequential).

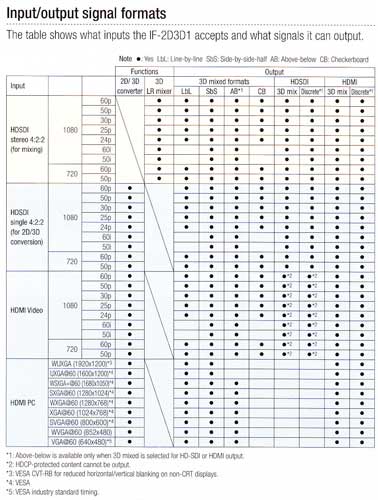

The table shows what inputs the IF 2D 3D 1 accepts and what
signals it can output.
Input/output signal formats:
 |
|
|
IF2D3D1 |
| Input
specifications |
HD-SDI or HDMI
HD-SDI is equipped with reclocked out |
| Output
specifications |
HD-SDI: Simulations
discrete L and R signals
HD-SDI and HDMI: 3D mixed format
HDMI: Selectable (L or R) |
| Audio
specifications |
HD-SDI: Embedded audio
to 8ch (48kHz)
HDMI: Linear PCM to 8ch (48kHz) |
|
Connectors |
| Input |
IN 1 (L) |
HD-SDI: BNC x 2 with
reclocked out |
| IN 2 (R) |
HD-SDI: BNC x 2 with
reclocked out |
| HDMI |
HDMI (Ver1.3): x 1 |
| Output |
OUT 1 (L) |
HD-SDI: BNC x 1 |
| OUT 2 (R) |
HD-SDI: BNC x 1 |
| HDMI |
HDMI (Ver1.3): x 1 |
| External
remote |
RS-232C D-sub 9-pin x
1 |
|
General |
| Power
requirement |
AC120 - 240 V |
| Power
consumption |
10W |

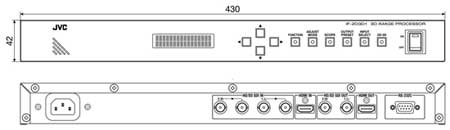

| Dimensions |
430mm x 242mm
(including protrusions) |
| Weight |
2.9kg |
| Supplied
accessories |
AC power cord, cord
holder , rack mount bracket |
 |
|
|
