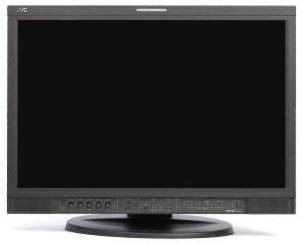

DT-V20L1D, JVC 20-inch  Multi-Format LCD Monitor

Designed for critical image evaluation the DT-V24L1D features true native pixel-to-pixel 1080p image display. Built-in digital HD-SDI and DVI-D interfaces provide loss less connection to broadcast and studio sources. Superior scaling and de-interlacing, 10-bit 1080p processing combined with traditional rotary image controls, area markers, blue check and timecode display make the DT-V24L1D the ultimate choice reference monitor for a variety of professional applications


Model: DT-V20L1D
JVC 20-inch Multi-Format Broadcast Studio LCD Monitor
  • 20 -inch Multi-Format Broadcast Studio LCD Monitor
  • Native 1920 x 1080 resolution 16:9 Flat Studio Monitor
  • HD-SDI / SDI auto-sensing inputs with Time-Code Display
  • Embedded Audio with up to 12 channel Audio Level Display
  • DVI-D (HDMI compatible) for HD-DVD / Blu-Ray Disc playback
  • 1:1 Scaling Mode for pixel-to-pixel 720p display

DT-V20L1D
FEATURES

High Resolution Superior Picture Quality

- DT-V20L1D : WSXGA + (1680x1050) HD Resolution
- Various HD Signals inputs capability
- glare-Panel with high-level control of focus,
scintillation and contrast
- gold HD-SDI connector for preventing corrosion


User Friendly Editing Functions

- HD-SDI Built-In
- 1:1 Scan
- Rotary volume and direct function switches

Easy Install
- Compact and Square Design
- VESA std. Mounting Hole
- Stand provided with TILT & HIGH
Remote control Make/Trigger/RS-485/RS-232C
SPECIFICATIONS
Model DT-V24L1D DT-V20L1D DT-V17L2D DT-V9L1D
Type Multi-format HDTV/SDTV LCD Display Monitor
Screen Size Type 24 Wide Format Type 20 Wide Format Type 17 Wide Format Type 9 Wide Format
Aspect Ratio 16:10 15:9
LCD Panel 24" wide, active matrix TFT 20" wide, active matrix TFT 17" wide, active matrix TFT 9" wide, active matrix TFT
Effective Screen Size 51.84 x 32.4cm 43.34 x 27.09 cm 36.72 x 22.95 cm 19.5 x 11.7 cm
Pixels 1920 x 1200 (W-UXGA) 1680 x 1050 (W-SXGA+) 1440 x 900 (W-SXGA+) 800 x 480 (WVGA)
Display Colours 16.7 million approx. 16.2 million
Viewing Angle Horizontal 176° 170° 140° 170°
Vertical 176° 170° 120° 170°
Brightness 400 cd/m2 350 cd/m2

Contrast Ratio

1000:1 800:1 600:1 400:1
Horizontal/Vertical Frequency (PC Signals) Horizontal 31.469 kHz to 75.000 kHz -
Vertical 60 Hz ± 5 Hz -
  Depending on the signal within the range of these frequencies, some signals may not be displayable, in which case, "Out of range" is shown.

Applicable Standard

HD SDI: BTA S-004B, SMPTE292M

SD SDI: ITU-R BT.656: 525/625, SMPTE259M: 525

EMBEDDED AUDIO: SMPTE299M, SMPTE272M

Audio Output

Internal: 1.0 W + 1.0 W (L/R) 1 W (Mono)

Environmental Conditions

Operating temperature

5°C to 35°C 0°C to 40°C

Operating humidity

20% to 80% (non condensing)

Power Requirements

AC 120/220-240 V, 50/60 Hz

AC 120/220-240 V, 50/60 Hz/DC 12 V

Rated Current

0.67 A 0.60 A 0.36 A (AC 220-240 V),3.0 A (DC 12 V) 0.25 A (AC 220-240V),1.7 A (DC 12 V)

Dimensions (WxHxD) excluding protrusions)

With desktop stand

564 x 448.6 x 243 mm 477 x 394.6 x 243 mm 395 x 344.6 x 243 mm 222.4 x 180.5 (Low) x 202 (Low) mm

Without stand

564 x 408 x 99 mm

564 x 408 x 99 mm 395 x 304 x 86 mm 222.4 x 176 x 116 mm

Weight

Excluding stand

8.7 kg 7.4 kg 5.3 kg 2.6 kg

Including stand

11.6 kg 10.3 kg 8.2 kg 3.5 kg

Provided Accessories

AC power cord, power cord holder, screw x 2 (for power cord holder)

Protective screen x1, screw x4

AC power cord, power cord holder, screw x 2 (for power cord holder)

(for protective screen), AC power

cord, power cord holder, screw

x 2 (for power cord holder)

Options

Protective screen Protective screen/rack mount adapter Rack mount adapter



Input/Output Terminals



Video

VIDEO 1

Composite video signal input/output: 1 line, BNC x 2, 1 V (p-p), 75 ohms *1
(IN and OUT are connected with a bridge connection) (auto termination)

VIDEO 2

Composite video signal input/output: 1 line, BNC x 2, 1 V (p-p), 75 ohms *1
(IN and OUT are connected with a bridge connection) (auto termination)
- -

DVI-D (HDCP)

DVI-D signal input (compatible with HDCP): DVI-D connector x 1 (compatible with DDC2B)

COMPO./RGB*2
(G/Y, B/Pb/B-Y, R/Pr/R-Y)

Analogue component signal/analogue RGB signal input/output: 1 line, BNC x 6
Video signal: G/Y: 1 V (p-p), 75 ohms (sync signal included), B/Pb/B-Y, R/Pr/R-Y: 0.7 V (p-p), 75 ohms
(IN and OUT are connected with a bridge connection) (auto termination)

EXT. SYNC (CS

Composite sync signal input/output: 1 line, BNC x 2, 0.3 V (p-p) to 4 V (p-p), 75 ohms (bipolar tri-signal, negative pole binary signals, BB) (video signals excluded) (IN and OUT are connected with a bridge connection) (auto termination) - -

HD/SD SDI (IN 1)

Digital signal input (compatible with EMBEDDED AUDIO): Auto detection, 1 line, BNC x 1

HD/SD SDI (IN 2)

Digital signal input (compatible with EMBEDDED AUDIO): Auto detection, 1 line, BNC x 1 -

HD/SD SDI (OUT)

Digital signal output (compatible with EMBEDDED AUDIO): 1 line (switched out), BNC x 1

Digital signal output (compatible with EMBEDDED AUDIO):1 line, BNC x 1

Audio

AUDIO ASSIGN (IN 1)

Analogue audio signal input: 1 line, RCA x 2, 500 mV (rms), high impedance Analogue audio signal input: 1 line, RCA x 2, 500 mV (rms), high impedance Analogue audio signal input: 1 line, RCA x 1, 500 mV (rms), high impedance

AUDIO ASSIGN (IN 2)

- -

AUDIO ASSIGN (MONITOR OUT)

Analogue audio signal output: 1 line, RCA x 2, 500 mV (rms)

Analogue audio signal output: 1 line, RCA x 1, 500 mV (rms)

External Control

MAKE/TRIGGER

RJ-45 x 1 (8-pin)

RS-485

RJ-45 x 2 (IN/OUT) (8-pin) -

RS-232C

D-sub (9-pin) x 1

*1: DT-V9L1D; Component (common use) *2: DT-V17L2D; Component only, DT-V9L1D; Component (IN only)
