DT-V21G11Z 21"
Multi-Format Monitor (LED Backlit)
|
|
JVC's Vérité Series is renowned for
its highly accurate production quality and highly reliable display.
Now users can benefit with reduced
running costs and significantly increased lifetime thanks to latest LED
backlight technology, which also improves image quality.
The DT-V21G11Z uses a full-HD 1920 x
1080 panel driven by a white LED backlighting.
The monitor has a power consumption
of 20-30% less when compared with similar monitors using CCFL driven lighting.
This increases the monitor's
lifetime by up to 300%. Images produced with LED backlighting are smoother and
more consistent.
Saving energy not only saves costs but also helps save the environment, since
the LED is mercury-free, unlike traditional CCFL backlights.
|
Product Code:DTV21G11Z
|
|
- Supports 3G-SDI and Dual Link
HD-SDI w/embedded audio
- Wide Viewing Angle 178°x 178° IPS Panel
- 1920 x 1080 pixel Full HD resolution
- LED Backlight enables mercury- free, low power consumption operation
- Vector Scope, Waveform
- 11 Marker Functions: area, marker aspect, safety, center and more
- 10bit Color Processing
- Low Latency Circuitry (<1 frame)
- Audio level meter up to 16ch
- 3 level front control (lockable per menu)
- Full vertical screen mode for SD 4:3 signal (switchable)
- 16.7 million display colors
- 1,000:1 contrast ratio
- ITU-709 color space
- Selectable gamma preset modes
●
Gamma 2.2
●
Gamma 2.35
●
Gamma 2.45
●
Gamma 2.6
- 3 external control terminals: MAKE/TRIGGER, RS-232C, & RS-485
- Tally lamp
- LTC & VITC time code support
- 1080/24psf signal compatibility
- Built-In 1W x 1W Speakers (x2)
- Digital Closed Captioning
|
|
|
An indispensable monitor for
professional studio applications, the DT-V21G11 offers 3G-SDI and dual link
HD-SDI connections, plus handy features including vector scope, waveform monitor
and audio level meter.
Supports 3G-SDI and Dual Link
HD-SDI
The DT-V21G11 supports dual-link HD-SDI (SMPTE 372M) and the latest 3G-SDI (SMPTE
424M) and dual-link HD-SDI (SMPTE 372M) interfaces, both of which are capable of
transferring 1080p uncompressed digital video datatransmitted at a max rate of
60fps at 3Gbit/s. Following signal information can be displayed when a 3G-SDI
signal comes in.
| 3G A-1 |
Level A mapping structure
1 |
| 3G A-2 |
Level A mapping structure
2 |
| 3G A-3 |
Level A mapping structure
3 |
| 3G A-4 |
Level A mapping structure
4 |
| 3G B-DS1 |
Level B data stream 1 |
| 3G B-DS2 |
Level B data stream 2 |
| 3G B-DUAL |
Level B DUAL LINK |
Full HD resolution LCD panel with LED
backlighting
The monitor features a 1920 x 1080 pixel full HD resolution LCD panel with LED
backlighting. Compared to CCFL backlit monitors, LED backlit LCD monitors are
more energy efficient, radiate little heat, and best of all, are free of
mercury.
ITU-709 color space
The DT-V21G11 is compatible with ITU-709 standard color space for HDTV
broadcasting.
|
Built-in vector scope and waveform monitor
The vector scope is used for checking the input signal's hue and saturation. The
displayed scope can be displayed in one of two sizes for ease of use. The
waveform monitor detects the brightness of the input; its display position can
be selected from one of four corners. Both displays can be made translucent or
solid for simultaneous checking of the image and the scope/ waveform.

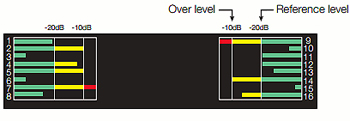

16-channel audio level meter
A convenient 16-channel audio level meter with multiple indications such as peak
hold showing peak audio levels, channel numbers for each channel bar, and
graduation levels, provides at-a-glance recognition of audio signal status.
|
|
 |
Vector Scope (V.S)
with color bar displayed |
 |
Example of a
Wave Form Monitor |
|
|

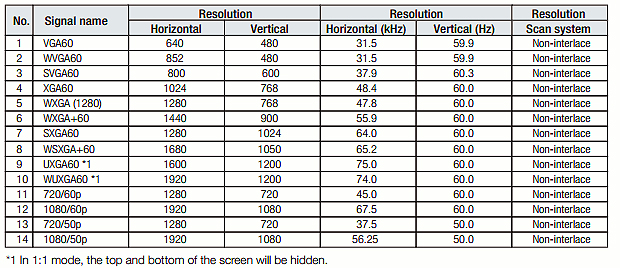

Compatible Signals
Computer (preset) : DVI-D (HDCP) input
 |
|
Display Device |
Display
Type |
21.46"
LCD Display |
| Drive
System |
IPS |
| Aspect
Ratio |
16:09 |
| Number of
Pixcels |
1920
(H) x 1080(V) |
| Panel
Surface |
Non-Glare |
| Color
gumut |
ITU-709 |
| Viewing
Angle |
H:178deg
V:178deg |
| Contrast
Ratio |
1000：1 |
| Display
color |
16.7M
colors |
| Backlight |
LED |
|
Dimension |
VESA
standard |
100mm
x 100mm (M4 x4) |
| Width |
515
mm |
| Height |
387.8
mm |
| Depth |
199
mm with stand |
|
Weight |
|
7.9
kg with stand/ 6.1kg without stand |
|
Power Requirement |
AC |
120,
220-240V 50/60Hz |
|
External In /Out |
Video
IN/OUT |
Composite
Video IN : BNC x 1 |
| Composite
Video OUT : BNC x1 Loopthrough |
| Component |
1pin
Y, 2pin Pb/B-Y, 3pin Pr/R-Y with loop through |
| DVI-D |
DVI-D
x 1 with HDCP |
| HD/SD-SDI |
IN
: BNC x2 (3G compatible) |
| OUT
: BNC x1 (Switched out) |
| Audio |
IN
: RCA x 2 (L/R) |
| MONITOR
OUT : RCA x 2 (L/R) |
| Remote |
MAKE/TRIGGER
: RJ-45(8-pin) x 1 |
| RS-485
IN
: RJ-45 (8-Pin) x 1 |
| RS-485
OUT : RJ-45
(8-Pin) x 1 |
| RS-232C
: D-sub (9-pin) x 1 |
|
Audio |
Speaker |
1W
x 2 |
|
|
DT-V9L3GY |
DT-E17L4G |
DT-V17G1Z |
DT-E21L4U |
DT-V21G11ZU |
DT-R24L41D |
DT-V24G11Z |
| Viewable Screen size class (diag.) |
9-inch |
17-inch |
17-inch |
21-inch |
21-inch |
24-inch |
24-inch |
| Screen type |
Active matrix LCD |
Active matrix LCD (TN) |
Active matrix LCD (IPS) |
Active matrix LCD (TN) |
Active matrix LCD (IPS) |
Active matrix LCD |
Active matrix LCD |
| Panel surface |
Non-glare |
Gloss |
Non-glare |
Non-glare |
Non-glare |
Non-glare |
Non-glare |
| Backlight |
CCFL |
LED |
CCFL |
LED |
LED |
CCFL |
CCFL |
| Aspect ratio |
15:09 |
16:09 |
16:09 |
16:09 |
16:09 |
16:10 |
16:10 |
| Viewing angle (H/V) |
170° / 170° |
160° / 140° |
178° / 178° |
170° / 160° |
178° / 178 |
178° / 178° |
178° / 178° |
| Pixels |
800 x 480 |
1920 x 1080 |
1366 x 768 |
1920 x 1080 |
1920 x 1080 |
1920 x 1200 |
1920 x 1200 |
| Brightness / Contrast |
350cd/m², 400:1 |
300cd/m², 600:1 |
350cd/m², 900:1 |
250cd/m², 1000:1 |
1000:01:00 |
400cd/m², 1000:1 |
400cd/m², 1000:1 |
| Waveform monitor |
Yes |
No |
Yes |
No |
Yes |
No |
Yes |
| Vectorscope |
No |
No |
Yes |
No |
Yes |
No |
Yes |
| Closed captioning |
Analog |
None |
Analog/Digital ITU 608/708 |
No |
Analog/Digital ITU 608/708 |
None |
Analog/Digital ITU 608/708 |
| Image processing |
4:2:2 8-bit |
1080p 10-bit 4:4:4 |
1080p 10-bit 4:4:4 |
1080p 10-bit 4:4:4 |
1080p 10-bit 4:4:4 |
1080p 10-bit 4:4:4 |
1080p 10-bit 4:4:4 |
| Chroma range |
Standard |
100% EBU |
100% EBU |
100% EBU |
ITU-709 |
100% EBU |
100% EBU |
| 1:1 Monitoring mode |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| On screen audio metering |
Digital (up to 12 ch) |
Digital (up to 16 ch) |
Digital (up to 12 ch) |
Digital (up to 16 ch) |
Digital (up to 16 ch) |
Digital (up to 12 ch) |
Digital (up to 12 ch) |
| On screen time code |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| IMD (in monitor display) |
No |
TSL (UMD V4.0) |
No |
TSL (UMD V4.0) |
No |
No |
No |
| SD/HDSDI inputs |
x2 in, 1 switched out with embedded audio/TC |
x2 in, 1 switched out with embedded audio/TC |
x2 in, 1 switched out with embedded audio/TC |
x2 in, 1 switched out with embedded audio/TC |
x2 in, 1 switched out with embedded audio/TC |
x2 in, 1 switched out with embedded audio/TC |
x2 in, 1 switched outwith embedded audio/TC |
| Dual link / 3G |
No |
No |
Yes |
No |
Yes |
No |
Yes |
| DVI / HDMI Input |
No |
HDMI |
DVI |
HDMI |
DVI |
DVI |
DVI |
| Component input/output |
Yes (Y, Pb, Pr) |
Mini D-sub (RGB, Y, Pb,Pr) |
Yes (Y, Pb, Pr) |
Mini D-sub (RGB, Y, Pb,Pr) |
Yes (Y, Pb, Pr) |
No |
Yes (Y, Pb, Pr) |
| Composite video in/out |
x1
(connector shared w/component) |
x1 |
x1 |
x1 |
x1 |
x2 |
x2 |
| External sync |
No |
No |
No |
No |
No |
No |
Yes |
| Tally lamp |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Audio speaker |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Analog audio input |
mono (x1) |
L/R (x1) |
L/R (x1) |
L/R (x1) |
L/R (x1) |
L/R (x2) |
L/R (x2) |
| Analog audio monitor |
mono (x2) |
L/R (x1) |
L/R (x1) |
L/R (x1) |
L/R (x1) |
L/R (x1) |
L/R (x1) |
| Remote control |
MAKE/Trigger |
MAKE/Trigger
RS-485 (I/O)
RS-232C |
MAKE/Trigger
RS-485 (I/O)
RS-232C |
MAKE/Trigger
RS-485 (I/O)
RS-232C |
MAKE/Trigger
RS-485 (I/O)
RS-232C |
MAKE/Trigger
RS-485 (I/O)
RS-232C |
MAKE/Trigger
RS-485 (I/O)
RS-232C |
| Power requirement |
AC120/220-240V,
50/60Hz DC 12-17 V |
AC 120/220V,
50-60Hz DC 12-17V |
AC 120/220V,
50-60Hz DC 12-17V |
AC 120/220V,
50-60Hz DC 12-17V |
AC 120/220V,
50-60Hz |
AC 120/220V,
50-60Hz |
AC 120/220V,
50-60Hz |
| Rated current |
0.35A (AC120V)
1.7A (DC12-17 V) |
0.5A (AC120V)
3.0A (DC12-17 V) |
1.2A (AC120V)
5.0A (DC12-17 V) |
0.6A (AC120V)
3.5A (DC12-17 V) |
0.6A (AC120V)
0.4A (AC240V) |
1.15A (AC120V) |
1.15A (AC120V) |
| Power saving mode |
Yes (P.SAVE) |
Low power mode |
Yes (P.SAVE) |
Low power mode |
Yes (P.SAVE) |
Yes (P.SAVE) |
Yes (P.SAVE) |
| LCD Saver mode |
No |
Yes |
No |
Yes |
Yes |
No |
No |
| Carry handle |
Yes |
Yes |
Yes |
Yes |
No |
No |
No |
| Desktop stand |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| External Monitor calibration software |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
|
| |
| |
 |
|
|
