JVC Non-Linear Editing System

MW-S1200E

Features

High picture quality; all 4:2:2 processing video path from input to output and low compression ratios.
All effects real time (wipes, keys, Genie 3D DVE, Inscriber CG, Etc.)
Turnkey systemisation; all software, hardware in one unit with JVC Service and support.
Open Architecture conforming to industry standards for rapid modular upgrade of both hardware and software. (OS: Windows NT 4.0: Buses: PCI and Matrix Movie 2; Microsoft Direct Show; Open DML consortium extended AVI video and audio stream files).
The system is easily able to perform On-Line or Off-Line editing with scalable MPEG allowing compression ratio from "Lossless" to 30:1.
EDL import/export
AVI file import/export
Inscriber CG( Inscriber Technology, Inc) is combined. Text Animation is available.
VBS, Component and Serial(option) is acceptable. And analogue audio and AES/EBU is acceptable.
RS-422 VTR control port x2.

To Software Detail

Discription	Specification
GENERAL
Motherboard	IBM PC/AT -compatible PC
CPU	Pentimum™3 550 MHz
OS	Windows® NT 4.0 English
Video CODEC	M-JPEG
Audio	48 kHz 16 bit non compressed
Memory	128 MB
HDD	4 GB for system
	2 slots available for removable HDD for AV media.
FDD	3.5 inch 1.44 GB
CD-ROM	1 DRIVE
Video control	Direct show®
SCSI	LVD (wide), Narrow SCSI
Ext. Control	RS-422 VTR control 2ch
I/O
Video Input	Composite: BNC
	Y/C: Din 4 pin
	Component: BNC x3
	SDI: BNC (option)
Audio Input	Analog: XLR 3 female x4
	AES/EBU: XLR 3 female x2
REF Input	BNC x2, Loop-through possible
Video Output	Composite: BNC
	Y/C: Din 4 pin
	Component: BNC x3
	SDI: BNC (option)
Audio Output	Analog: XLR 3 Male x4
	AES/EBU: XLR 3 Male x2
VGA output	D-sub 15 pin

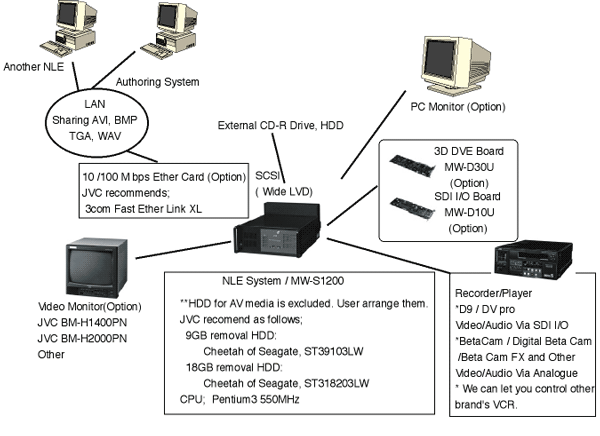

System Configuration

	Optional Accessories
	3D DVE Board MV-D30U	D1 Serial Interface Board MV-D10U
