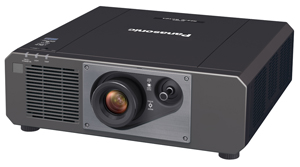

Solid Shine laser: Ideal for Business and Education
Big, bold, pin-sharp images don’t fade away fast with
SOLID SHINE Laser. In fact, image quality and endurance far outstrips that of competitive lamp-based projectors, with almost no maintenance required. Add a
suite of features that makes daily operation a breeze and you start to get the picture: the
PT-RZ570 Series is a smart choice for beautiful images in classrooms, boardrooms, or office meeting spaces. |
| Power supply |
AC 100–240 V, 50/60 Hz |
| Power consumption*1 |
500 W (520 VA, 100 V AC),
(375 W with OPERATING MODE set to NORMAL,
350 W with OPERATING MODE set to ECO or
SILENT,
40 W with the shutter closed, [Picture Mode: Standard, Dynamic Contrast: ON]),
(0.5 W with STANDBY MODE set to ECO*2, 10 W with STANDBY
MODE set to NORMAL),
(22 W with STANDBY MODE in AUDIO SETTING set to ON and
QUICK STARTUP function disabled, 50 W with QUICK STARTUP function enabled). |
| DLP™ chip |
Panel size |
17.0 mm (0.67 in) diagonal (16:10 aspect ratio) |
| Display method |
DLP™ chip x 1, DLP™ projection system |
| Pixels |
2,304,000 (1,920 x 1,200) pixels |
| Lens |
2.0x manual zoom (throw ratio: 1.46–2.94:1), manual focus, F 2.0-3.4, f 21.5–43.0 mm |
| Light source |
Laser diode (Laser class: Class 1) (Class 3R for North America)
Luminance life: 20,000 hours at half luminance
(Normal Mode,
Temperature: 35 °C [95 °F], altitude: 700 m [2,297 ft], Dust: 0.15 mg/m3) |
| Screen size (diagonal) |
1.02–7.62 m (40–300 in), 16:10 aspect ratio |
| Brightness |
5,400 lm (center)*4 / 5,200 lm*3*4 |
| Center-to-corner uniformity*3 |
90 % |
| Contrast*3 |
20,000:1 (full on/full off, Dynamic Mode and Dynamic Contrast: ON) |
| Resolution |
1,920 x 1,200 pixels |
Scanning
frequency |
HDMI/DVI-D/
DIGITAL LINK |
fH: 27–100 kHz, fV: 24–120 Hz, dot clock: 25–162 MHz,
480i (525i),*5 576i (625i),*5 480p (525p), 576p (625p), 720 (750)/60p, 720 (750)/50p,
1080 (1125)/60i, 1080 (1125)/50i, 1080 (1125)/25p, 1080
(1125)/24p,
1080 (1125)/24sF, 1080 (1125)/30p, 1080 (1125)/60p, 1080 (1125)/50p,
VGA (640 x 480)–WUXGA*6 (1,920 x 1,200), compatible with non-interlaced signals only. |
| RGB |
fH: 15–100 kHz, fV: 24–120 Hz, dot clock: 20–162 MHz |
| YPBPR (YCBCR) |
fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH:
33.75 kHz, fV: 60 Hz [1035 (1125)/60i]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 33.75 kHz, fV:
30 Hz [1080 (1125)/30p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH:
37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
fH: 27.00 kHz, fV:
48 Hz [1080 (1125)/24sF]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p] |
| Video/Y/C |
fH: 15.73 kHz, fV: 59.94 Hz (NTSC/NTSC4.43/PAL-M/PAL60),
fH: 15.63 kHz, fV: 50 Hz (PAL/PAL-N/SECAM) |
| Optical axis shift*7 |
Vertical |
+64 %, -44 % (manual) |
| Horizontal |
+34 %, -27 % (manual) |
| Keystone correction range |
Vertical: ±40 °, horizontal: ±20 °
(up to a total of ±60 ° during simultaneous horizontal and vertical correction) |
| Installation |
Ceiling/floor, front/rear, 360-degree free installation |
| Terminals |
HDMI IN |
HDMI 19-pin x 2 (Deep Color, compatible with HDCP),
audio signal: Linear PCM (sampling frequency: 48 kHz/44.1 kHz/32 kHz) |
| DVI-D IN |
DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) |
| COMPUTER 1 IN |
D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR/YC x 1) |
COMPUTER 2 IN/
1 OUT |
D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1),
(input/output selectable using on-screen menu) |
| VIDEO IN |
Pin jack x 1 (composite video) |
| AUDIO IN 1 |
Pin jack x 2 (L x 1, R x 1) |
| AUDIO IN 2 |
M3 x 1 (L-R x 1) |
| AUDIO IN 3 |
M3 x 1 (L-R x 1) |
| AUDIO OUT |
M3 x 1 (L-R x 1) (variable) |
| SERIAL IN |
D-sub 9-pin (female) x 1 for external control (RS-232C
compliant) |
| LAN |
RJ-45 x 1 for network connection, 10Base-T/100Base-TX,
compatible with Art-Net, compliant with PJLink™ (Class 1) |
| DIGITAL LINK |
RJ-45 x 1 for network/DIGITAL LINK connection (video/audio/network/serial control),
100BASE-TX, compatible with Art-Net, Deep Color, HDCP, compliant with PJLink™ (Class 1) |
| USB |
Type A x 1 (5 V, 900 mA) |
| Cabinet materials |
Molded plastic |
| Dimensions (W x H x D) |
498 x 168*8 x 492 mm (19-5/8 x 6-5/8*8 x 19-3/8 in) |
| Weight*9 |
Approximately 16.3 kg (35.9 lbs) |
| Operation noise*3 |
28 dB (Silent Mode), 33 dB (Normal/Eco Mode) |
| Operating environment |
Operating temperature: 0-45°C (32-113°F)*10, operating humidity: 10- 80 % (no condensation) |
| Applicable software |
Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software |
| Supplied accessories |
Power cord with secure lock x 1 (x 2 for EU models), wireless remote control unit x 1,
batteries for remote control (R03/AAA or
LR03/AAA type x 2),
software CD-ROM (Logo Transfer Software, Multi Monitoring & Control Software x 1) |
*1 Operating Temperature: 25 °C (77 °F), Altitude: 700m (2,297 ft), ICE627087: 2008 Broadcast contents.
*2 When
Standby Mode is set to Eco, network functions such as power on over LAN will not operate.
*3 Measurement, measuring conditions, and method of notation all
comply with ISO 21118 international standards.
*4 With operation mode set to Normal.
*5 Only compatible with dot clock frequency of 27 MHz (pixel
repetition signal).
*6 WUXGA resolution supports CVT-RB signals (WUXGA60RB) and CVT (WUXGA60/WUXGA50) signals.
*7 When installed in conventional
orientation, upper side and right side facing toward the screen are “+”.
When installed on the ceiling, bottom side and left side are “+”.
*8 With legs at shortest position.
*9 Average value. May differ depending on the
actual unit.
*10 The operating environment temperature should be between 0 °C (32 °F ) and 40 °C (104 °F ) when the projector is used at altitudes between
1,400 m (4,593 ft) and 4,200 m (13,780 ft) above sea level. When [PROJECTOR SETUP] menu > [ECO MANAGEMENT] > [OPERATING MODE] is set to [ECO] or [SILENT],
the projector cannot be used at an altitude of 2,700 m (8,858 ft) or higher above sea level. When using the projector at an altitude lower than 2,700 m
(8,858 ft) above sea level and the operating environment temperature is 35 °C (95 °F) or higher, light output may be reduced to protect the projector. When
using the projector at an altitude between 2,700 m (8,858 ft) and 4,200 m (13,780 ft) and the operating environment temperature is 25 °C (77 °F) or
higher, light output may be reduced to protect the projector. |
|
|
