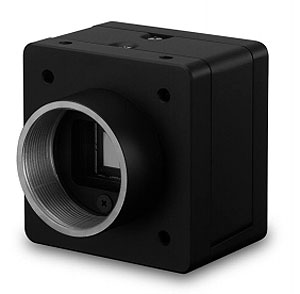

Sony XCLSG510C Digital Video Camera Module (Color)

Sony XCLSG150C
Sony XCLSG510C

Sony XCLSG510C Color Digital Video Camera Module

Product Code: XCLSG510C

Sony XCLSG510C


Features

  • High frame rate
  • Area Gain
  • Area exposure
  • Frame accumulation
  • Image Flip
  • Shading Correction
  • Defect correction
  • 3 x 3 filter
  • Wide dynamic range
  • Multi ROI
  • Temperature Readout
  • Trigger Range Limit
  • Special Trigger modes (Bulk trigger/Sequential trigger)

The XCL-SG510 and XCL-SG510C are the latest digital cameras from Sony to incorporate Global Shutter CMOS sensor technology. The cameras provide Image processing capabilities that satisfy the requirements of high reliability, high speed and high sensitivity in applications such as machine vision.

Camera
Image Type RAW Color
Image Size 5.1 Mega
Image sensor 2/3-type Global Shutter CMOS Sensor
No. of effective pixels (H x V) 2464 x 2056
Standard output pixels (H x V) 2448 x 2048
Color filter RGB Color mosaic filter
Frame rate 16 fps (Base 1tap)
32 fps (Base 2tap)
48 fps (Base 3tap)
64 fps (Medium 4tap)
124 fps (Full 8tap)
154 fps (80bit 10tap)
Minimum Illumination 12lx
(Iris: F1.4, Gain: +18dB, Shutter: 1/30s)
Sensitivity F5.6 (400 lx, Gain: 0 dB, Shutter: 1/30s)
SNR More thatn 50 dB (Lens close, Gain:0 dB, 8 bits)
Gain Auto, Manual: 0 dB to 18 dB
Shutter speed Auto, Maual: 60 to 1/100,000 s
White balance Manual, One push
Camera Features
Readout modes Normal, Partial scan, Multi ROI
Readout features LUT (Binarization, Gamma (arbitary setting), Test pattern
Synchronization Hardware trigger, Software trigger
Trigger modes OFF (Free run), ON (Trigger edge detection, Trigger width detection), Special trigger (Bulk/Sequential)
User Set/ Memory channel 16 channels
User memory 32 kbytes + 64 bytes x 16ch
Partial Scan 16 to 2464 (W)
4 to 2056 (H)
GPO EXPOSURE / Strobe / LVAL / FVAL / Sensor readout / Trigger through / Pulse generation signal / USer definition 1, 2, 3, 4 (Selectable)
Other features Wide dynamic range, Frame accumulation, Area exposure, Area gain, Shading correction, Defect correction, Temperature readout, LUT, 3 x 3 filter
Interface
Video data output digital Raw 8, 10, 12, 16 bit (default Raw setting 8 bits)
Digital Interface LVDS
Camera specification Camera Link Version2.0
Output data clock 85MHz (1, 2, 3, 4, 8, 10tap)
65MHz (1, 2, 3, 4, 8, 10tap)
45MHz (1, 2, 3, 4, 8, 10tap)
Digital I/O ISO IN (x1), ISO OUT (x2), TTL IN (x1), TTL IN/OUT (x2, selectable)
General
Lens mount C-mount
Flange focal length 17.526 mm
Power requirements DC +12V(10.5V to 15.0V)
Power consumption 5.0 W (max)
Operating temperature -5C to +45C
Dimensions 44 x 44x 30 mm (excluding protrusions)
Weight Approx 96g
Supplied Accessories Lens mount cap (1), Operating Instructions (1)
