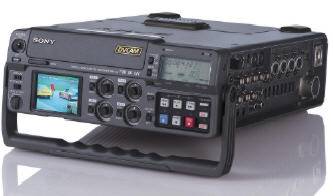

Sony Digital Video Cassette Recorder

DC input      XLR 4-pin (male), +12 V

Power consumption 15 W

Operating temperature 5 to 40 °C (41 to 104 °F)

Storage temperature  -20 to 60 °C (-4 to 140 °F)

Tape speed Approx. 28.2 mm/sec (DVCAM mode),

Approx. 18.8 mm/sec (DV SP mode)

Recording/Playback time

184 minutes (DVCAM mode), 270 minutes

(DV SP mode) with PDV-184ME cassette

40 minutes (DVCAM mode), 60 minutes

(DV SP mode) with PDVM-40ME cassette

Mass 3.9 kg (8 lb 9 oz), excluding battery and tape

Rec mode DVCAM/DV (SP mode only)

PB mode DVCAM/DV (SP mode only)

Rec mode 48.0 kHz: 16 bit: 2ch / 32.0 kHz: 12 bit:

4ch / automatic (DV IN)

PB mode 48.0 kHz: 16 bit: 2ch / 32.0 kHz: 12 bit:

4ch /

32.0 kHz: 16 bit: 2ch / 44.1 kHz: 16 bit:

2ch (automatically selected)

Video (Analog)

Reference: BNC (1), Black Burst 75 .,

Sync negative (use Video IN)

Composite Video: BNC (1), 1.0 Vp-p, 75 .,

Sync negative

S-Video: 4-pin mini DIN (1)

Y: 1.0 Vp-p, 75 ., Sync negative

C: 0.3 Vp-p (subcarrier burst) 75 .

Audio IN (Analog)

Audio: XLR 3-pin, female (4)

(+4 dBu/-20 dBu/-60 dBu) , impedance

more than 3 k.

with +48 V phantom power supply

(independently switched for each channel)

Camera IN:

26-pin camera connector (1)

Composite:1.0 Vp-p, 75 ., Sync

negative

Component

Y: 1.0 Vp-p, 75 ., Sync negative

B-Y: 0.7 Vp-p, 75 ., R-Y: 0.7 Vp-p, 75 .

DV: 6-pin (with lock) *shared with DV OUT

connector

Audio (Analog)

RCA pin: (4), -10 dBu, Standard output

level -18 dB from full bit

RCA pin (Monitor): (1)

DV:

   6-pin (with lock) *shared with DV IN

   connector

Timecode: BNC (1), 2.2 Vp-p, 600 ohms / 1.2 Vp-p, 75 .

Control S: Stereo mini jack (1)

Remote: Stereo mini jack (1) (Edge High /

Edge Low / Level High / Level Low)(Tally)

Control: Stereo minimini jack (compatible

with LANC as a player)

Headphone jack (left side): Stereo

standard jack (1)

   -19 dBu, with Level Control
