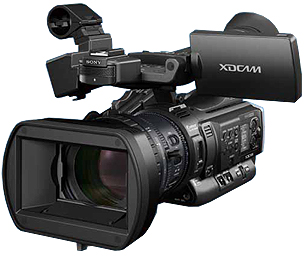

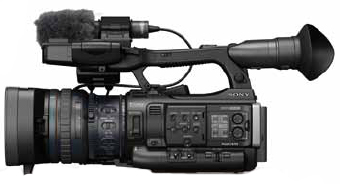

PMW-200 Three 1/2" Exmor CMOS XDCAM
HD422 Memory Handy Camcorder
The PMW-200 is the
sucessor to Sony's well respected
PMW-EX1/R camcorder which supports the
50 Mbps MPEG HD422 codec and MXF
recording. It is a good companion to the
PMW-500 XDCAM HD422 shouldermount
camera. With its three 1/2-inch Full HD
Exmor CMOS sensor (1920x1280), the
PMW-200 is able to achieve high
resolution (1000 TVl), high sensitivity
(F11@2000 lx), low noise (56 dB), and
wide dynamic range. The PMW-200 can be
used for both SD and HD applications. It
can be set to record 50 Mbps MPEG HD422
as MXF files on UDF formatted cards just
like the PMW-500 memory camcorder or the
PDW-700/F800 optical disc based
camcorders. Or you can set the camcorder
for FAT mode recording to shoot SxS
cards which are compabile with the XDCAM
EX format made by the PMW-EX1/R or
PMW-320/350. For SD applications you can
make DVCAM recordings as either MXF
files or XDCAM EX compatible files.
Download PMW-200 V1.20 firmware from:
http://pro.sony-asia.com/support/download/555689/product/pmw-200
[IMPORTANT NOTICE]
There is an IMPORTANT notice. After applying this
firmware from V1.10 or a previous version, please be
sure to perform auto flange back adjustment.
The procedure is described in the attached document
"AutoFbOM(E).pdf".
[The main changes]
- i.LINK DVCAM Input Recording
- The default value of the Brightness of the EVF
Screen is Changed
- The default value of AUDIO IN Reference Input
Level is Changed
- Auto Focus Improvement
- Auto Knee Improvement
- ATW Improvement
- Picture Improvement for when Matrix Setting is off
|
Teleprompters
With Complete Accessories |
Optional
Item
Convergent Design nanoFlash
The images are recorded
in 4:2:2
in CF card
 |
Adaptor for using
SDHC Card
with
XDCAM EX products
 |
Adaptor for using
Memory Stick™
with
XDCAM EX products
 |
Sony
Memory Card
SBS-32G1A
 |
Sony
Memory Card
SBS-64G1A
 |
WiseS2 32GB
SE-32
S2 Express Card
 |
Offer
VSS-17
Less than Price USD 2000
|
Offer
VSS-19
Less than Price USD 2500
|
Convergent Design
HD
Portable Recorder/Player
Less than Price:
USD 2900
nanoFlash
|
MEAD-SDS01
Less than Price :
USD 130
MEAD-SD01
|
MEAD-MS01
Less than Price :
USD 130
MEAD-MS01
|
SBS-32G1A
Less
than
USD 450
SBS-32G1A
|
SBS-64G1A
Less
than
USD 700
SBS-64G1A
|
SE-32
Less than Price :
USD 470
SE-32
|
|
|
|
|
PMW200 Camera
Features |
| |
|
•
Three 1/2-inch Full HD Exmor 3CMOS
sensors
•
50 Mbps MPEG HD422 recording as MXF
files (UDF mode only)
•
SD Recording and Playback (DVCAM)
standard
•
14x Fixed Zoom Lens (servo/manual
switchable) with unique focus ring
mechanism
•
Two ExpressCard SxS Memory Card Slots
•
Record up to 4 hours 50 Mbps MPEG HD422
in camcorder using two 64 GB SxS-1A
memory cards
(must be purchased separately)
•
UDF (Professional Disc compatible) or
FAT (XDCAM EX compatible) file format
mode shooting to
have similar high res files and workflows with existing
Professional Disc and XDCAM EX
camcorders
•
Low power consumption
•
Compact and lightweight
•
16:9, 3.5 inch color LCD
•
Slow & Quick motion
•
Focus Magnification for focus assistance
•
Slow Shutter Function
•
Shutter Angle Settings
•
Picture Cache Recording
•
High-quality four-channel audio
recording
•
HD/SD-SDI output and composite/HD-Y
output
•
USB interface for connecting camcorder
as card reader
•
Six Standard Gamma settings and Four
HyperGama Settings
What's in the Box
Lens hood (1) This is pre-installed to
the PMW-200.
Infrared Remote Commander (1)
EVF eyecup (1)
USB cable (1)
AV connecting cable (1)
Shoulder strap (1)

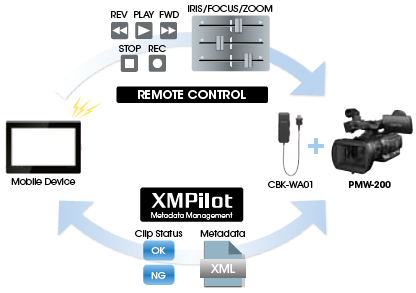

Wi-Fi adaptor bracket (PMW-200 only) (1)
Microphone cable holder (PMW-200 only)
(1)
Screws for mounting microphone cable
holder (PMW-200 only) (1)
BP-U30 battery pack (1)
Battery Charger/AC Adaptor: BC-UI (1)
Lithium battery (CR2032 for backup) (1)
This is pre-installed to the camcorder.
Lithium battery (CR2025 for the IR
Remote Commander) (1)
This is pre-installed to the IR Remote
Commander.
CD-ROM : Utility Software (1), Operating
instructions in PDF (1)
Operating Instructions (1)
|
 |
Automatic adjustment of flange focal
length for PMW-200
The flange focal length can be
automatically adjusted.When automatic
adjustment of flange focal length is
activated, focusing is performed both at
the wide-angle and telephoto ends of the
zoom for flange focal length adjustment
and the result is stored so that the
in-focus condition is maintained even if
you change the zoom position after
focusing.
Notes
• If a subject of insufficient contrast
is used, or if the camcorder or subject
moves during the adjustment, adjustment
cannot be made properly. Once the
adjustment begins, do not touch the
camcorder body or lens until it ends.
• When “Setting” of the “EX Slow
Shutter” of the CAMERA SET menu is “On,”
be sure to set it to “Off” before
starting the adjustment.
• Be careful that no light source, such
as a lamp,the sun, or a bright window,
is in field of view during flange focal
length adjustment.
1 Set the power switch to ON.
2 Set the IRIS switch of the lens to AUTO.
3 Place a high-contrast subject, such as a flange focal length adjustment
chart, about 3 m (10 ft.) away from the
camcorder, and light it
well enough to provide a sufficient video output level.
Frame the subject so that it is located in the center
at the telephoto end of the zoom. Make
sure that any object located closer to
the lens than the subject is out
of frame at the wideangle end.
4 Set the ZOOM switch to SERVO (Power Zoom mode).
5 Press the MENU button to set the camcorder to Menu mode, and select the
CAMERA SET menu, then “Auto FB Adjust”
from the menu.
6 Select “Execute.”
The adjustment begins.
During adjustment, the in-progress
message is displayed.
When the adjustment finished, the
completion message is displayed.
If you press the CANCEL button during
adjustment
Automatic adjustment of the flange focal
length is aborted and the condition
before starting the adjustment is
resumed.
If the adjustment fails, An error
message is displayed.
Check the conditions of the subject and
lighting then perform the adjustment
again.
|
|
|
PMW-200 Technical Specifications |
| Mass |
Approx 2.3 kg (body) |
| |
Approx. 5 lb 1.1 oz (body) |
| |
Approx. 2.7 kg (with lens hood, eyecup, BP-U30 battery, a SxS memory card) |
| |
Approx. 5 lb 15 oz (with lens hood, eye piece, BP-U30 battery, a SxS memory card) |
| Dimensions (W x H x D) *1 |
172 x 164 x 317 mm (without protrusions) |
| |
6 7/8 x 6 1/2 x 12 1/2 inches (without protrusions) |
| Power Requirements |
DC 12 V |
| Power Consumption |
Approx. 12 W (while recording, EVF On, LCD monitor Off, IO Select Off) |
| |
Approx. 14 W (while recording, EVF On, LCD monitor On, IO Select HD SDI & HD HDMI) |
| Operating Temperature |
0°C to 40°C
32°F to 104°F |
| Storage Temperature |
-20°C to +60°C
-4°F to +140°F |
| Battery Operating Time |
Approx. 2 hrs with BP-U30 battery
(while recording, EVF On, LCD monitor Off, I/O Select Off) |
| |
Approx. 4 hrs with BP-U60 battery
(while recording, EVF On, LCD monitor Off, I/O Select Off) |
| |
Approx. 6 hrs with BP-U90 battery
(while recording, EVF On, LCD monitor Off, I/O Select Off) |
| Recording Format (Video) |
UDF
- HD422 mode: CBR, maximum bit rate: 50 Mbps, MPEG-2 422P@HL
- HD420 mode: VBR, 35 Mbps, MPEG-2 MP@HL
- DVCAM mode: DVCAM |
| |
FAT
- HQ 1920 mode: VBR, 35 Mbps, MPEG-2 MP@HL
- HQ 1440 mode: VBR, 35 Mbps, MPEG-2 MP@HL
- HQ 1280 mode: VBR, 35 Mbps, MPEG-2 MP@HL
- SP 1440 mode: CBR, 25 Mbps, MPEG-2 MP@H-14
- DVCAM mode: DVCAM |
| Recording Format (Audio) |
UDF
- HD422 mode: LPCM 24 bits, 48 kHz, 4 channels
- Other mode: LPCM 16 bits, 48 kHz, 4 channels |
| |
FAT
- HD mode: LPCM 16 bits, 48 kHz, 4 channels
- SD mode: LPCM 16 bits, 48 kHz, 2 channels |
| Recording Frame Rate |
UDF
HD422 Mode: MPEG-2 422P@HL, 50Mbps/ CBR
- 1920x1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
- 1280x720/ 59.94p, 50p, 29.97p, 25p, 23.98p
HD420 Mode: MPEG-2 MP@HL, 35Mbps/ VBR
- 1440x1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
- 1280x720/ 59.94p, 50p, 23.98p
DVCAM Mode
- 720x486/ 59.94i, 29.97PsF
- 720x576/ 50i, 25PsF |
| |
FAT
HQ 1920 Mode: MPEG-2 MP@HL, 35Mbps/ VBR
- 1920x1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
HQ 1440 Mode: MPEG-2 MP@HL, 35Mbps/ VBR
- 1440x1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
HQ 1280 Mode: MPEG-2 MP@HL, 35Mbps/ VBR
- 1280x720/ 59.94p, 50p, 29.97p, 25p, 23.98p
SP 1440 Mode: MPEG-2 MP@H-14, 25Mbps/ CBR
- 1440x1080/ 59.94i, 50i, 23.98p (2-3 pull down)
DVCAM Mode
- 720x480/ 59.94i, 29.97PsF
- 720x576/ 50i, 25PsF |
| Recording/Playback |
UDF
HD 422 mode: Approx. 120 min with SBP-64/ SBS-64G1A (64 GB) memory card
Approx. 60 min with SBP-32/ SBS-32G1A (32 GB) memory card
Approx. 30 min with SBP-16 (16 GB) memory card
HD 420 mode: Approx. 180 min with SBP-64/ SBS-64G1A (64 GB) memory card
Approx. 90 min with SBP-32/ SBS-32G1A (32 GB) memory card
Approx. 45 min with SBP-16 (16 GB) memory card
DVCAM mode: Approx. 220 min with SBP-64/ SBS-64G1A (64 GB) memory card
Approx. 110 min with SBP-32/ SBS-32G1A (32 GB) memory card
Approx. 55 min with SBP-16 (16 GB) memory card |
| |
FAT
HQ 1920/HQ 1440 mode/HQ 1280 mode: Approx. 200 min with SBP-64/ SBS-64G1A (64 GB) memory card
Approx. 100 min with SBP-32/ SBS-32G1A (32 GB) memory card
Approx. 50 min with SBP-16 (16 GB) memory card
SP 1440 Mode: Approx. 280 min with SBP-64/ SBS-64G1A (64 GB) memory card
Approx. 140 min with SBP-32/ SBS-32G1A (32 GB) memory card
Approx. 70 min with SBP-16 (16 GB) memory card
DVCAM mode Approx. 260 min with SBP-64/ SBS-64G1A (64 GB) memory card
Approx. 130 min with SBP-32/ SBS-32G1A (32 GB) memory card
Approx. 65 min with SBP-16 (16 GB) memory card |
| Lens Mount |
Fixed |
| Zoom Ratio |
14x (optical), servo/manual |
| Focal Length |
f = 5.8 - 81.2 mm (equivalent to 31.4-439 mm on 35 mm lens) |
| Iris |
F1.9 - F16 auto/manual selectable |
| Focus |
AF/MF/Full MF selectable,
800 mm to ∞ (MACRO OFF),
50 mm to ∞ (MACRO ON, Wide),
735 mm to ∞ (MACRO ON, Tele) |
| Image Stabilizer |
ON/OFF selectable, shift lens |
| Filter Diameter |
M77 mm, pitch 0.75mm |
| Imaging Device (Type) |
3-chip 1/2-inch type "Exmor" Full HD CMOS |
| Effective Picture Elements |
1920 (H) x 1080 (V) |
| Optical System |
F1.6 prism system |
| Built-in Optical Filters |
OFF: Clear, 1: 1/8ND, 2: 1/64ND |
| Sensitivity (2000 lx, 89.9% reflectance) |
F11 (typical) (1920 x 1080/59.94i mode) |
| Minimum Illumination |
0.12 lx (typical) (1920 x 1080/59.94i mode, F1.9, +18 dB gain, with 64-frame accumulation, Gamma off, 100% video level) |
| |
0.02 lx (typical) (1920 x 1080/59.94i mode, F1.9, +18 dB gain, with 64-frame accumulation, Gamma on, 50% video level) |
| S/N Ratio |
56 dB (Y) (typical) |
| Horizontal Rezolution |
1,000 TV lines or more (1920 x 1080i mode) |
| Shutter Speed |
1/32 sec to 1/2,000 sec |
| Slow Shutter (SLS) |
2, 3, 4, 5, 6, 7, 8, 16, 32, and 64-frame accumulation |
| Slow & Quick Motion Function |
720p: Frame rate selectable from 1 fps to 60 fps (from 1 fps to 50 fps in PAL area setting in UDF mode)
1080p: Frame rate selectable from 1 fps to 30 fps (from 1 fps to 25 fps in PAL area setting in UDF mode) |
| White Balance |
Preset (3200K), Memory A, Memory B/ATW |
| Gain |
-3, 0, 3, 6, 9, 12, 18 dB, AGC |
| Gamma Curve |
Selectable |
| Audio Input |
XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable
Line: +4dBu
Mic: -70dBu--30dBu |
| Composite Output |
AV multi connector, NTSC or PAL |
| Video Output |
BNC (x1), HD-Y/Composite
1.0Vp-p, 75Ω
(switchable to Genlock in) |
| Audio Output |
A/V multi connector
-10dBu (Reference Level), 47kΩ |
| SDI Output |
BNC (x1), HD/SD selectable
SMPTE 292M/259M standards |
| i.LINK |
IEEE 1394, 4-pin (x1), HDV (HDV 1080i) / DV input/output, S400 |
| Timecode Input |
BNC (x1) (switchable to TC out)
SMPTE 12M-2-2008 standard
0.5V-1.8Vp-p, 10kΩ |
| Timecode Output |
BNC (x1) (switchable to TC in)
SMPTE 12M-2-2008 standard
1.0Vp-p, 10kΩ |
| Genlock Input |
BNC (x1) (switchable to Video out)
1.0 Vp-p, 75Ω |
| USB |
USB device, mini-B (x1) |
| Headphone Output |
Stereo mini jack (x1)
-18dBu 16Ω |
| Speaker Output |
Monaural, 250mW |
| DC Input |
DC jack |
| Lens Remote |
8-pin, round |
| HDMI Output |
Type A (x1) |
| Viewfinder |
0.45-inch type color LCD:
852 (H) x 480 (V), 16:9 |
| Built-in LCD Monitor |
3.5-inch type color LCD monitor: 852 (H) x 3 (RGB) x 480 (V), 16:9 |
|
Built-in Microphone |
Omni - directional stereo electret condenser microphone. |
|
Type |
Express Card/34 slot (x2) |
|
Supplied Accessories |
Lens hood (1), |
| |
Pre-installed to the Camcorder |
| |
Infrared Remote Commander (1) |
| |
EVF eyecup (1) |
| |
USB cable (1) |
| |
AV connecting cable (1) |
| |
BP-U30 battery pack (1) |
| |
BC-U1 battery charger (1) |
| |
Shoulder strap (1) |
| |
Wi-Fi Adaptor Bracket (1) |
| |
Microphone Cable Holder (1) |
| |
Screw for mounting microphone cable holder (1) |
| |
Lithium battery (CR2032 for data backup) (1), |
| |
Pre-installed to the Camcorder |
| |
Lithium battery (CR2025 for the IR Remote Commander) (1), |
| |
Pre-installed to the IR Remote Commander |
| |
CD-ROM:
- Utility software (1)
- Operating instructions in PDF (1)
Operating instructions (1) |
|
|
|
PMW150 |
|
|
PAL / NTSC PMW-200
