Panasonic HD Varicam AJHC27FE PAL

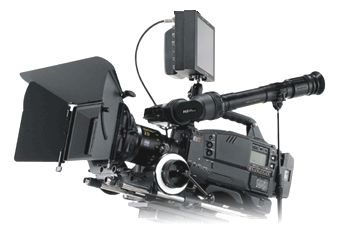

Panasonic AJ-HD27FE Variable Frame-rate HD Camera-Recorder

Product Code:AJHD27FE
Specification

FEATURES

Variable frame rate HD cinema camera enables 46 minutes recording on 1/4” tape in large-sized cassettes

High quality multiple frame-rate production camera with exceptional system ergonomics

1.1-Million Pixel interline transfer (IT) 3-CCD

Resolution of approximately 850 lines for creating rich images

Electronic shutter with optical filter wheel

Switchable frame rates between 4–33 fps (single step) and 36, 40, and 60 fps

Native 720p camcorder but can be used for 60 fps or film-quality 60 fps acquisition

New digital signal processing (DSP) system for high precision color

LCD status menu and diagnostic system

HD-SDI video output and external camera control capability

Low power consumption and no fan, assuring quiet operation.

Ideal for special effects in music videos, sci-fi dramas and dream sequences

P2 Equipment

DVCPRO HD

DVCPRO

AVCCAM

Sony HDV

JVC ProHD

HD Camcorder

AJ-HDC27HE

AJ-HDX400

AJ-HDX900

HD VTR-Tapes Based

AJ-HD1800E

AJ-HD1400E

P2 Cam

AJ-HPX2100

AJ-HPX2700

AJ-HPX3700

AJ-HPX3000

AG-HPX500

AG-HPX502E

AG-HPX555

AG-HPX170

AG-HPX171

AG-HPX172

AG-HPX174

AG-HPX250

HD D5

AJ-HDP2000

AJ-HD3700BE

Mointors

BT-LH2550E

BT-LH1760E

BT-LH1700WE

BT-LH1710

BT-LH900A

BT-LH80WUE

Live Mixer

AV-HS400

AV-HS400A

AV-HS300

AV-HS450N

AW-SW350

NEX-FS700

NEX-FS700K

PMW-100

AJ-HDC27F(P) / AJ-HDC27F(E)

AJ-HDC27F(P) [NTSC] Specifications

General
Power Supply	DC 11V to 17V
Power Consumption	33 W (without VF, SAVE REC MODE), 39 W typical operating conditions
Operating Temperature	32°*F to 104°F (0°C to 40°C)
Operating Humidity	Less than 85%
Weight	About 9.9 lbs (4.5 kg) , About 15.4 lbs (7.0 kg) in operation
Dimensions (W x H x D)	5-1/4" x 8" x 12-5/16" (132 x 204 x 313 mm)
Camera Section
CCD Elements	2/3" IT 3-CCD (RGB)
Picture Elements	1,019,280 pixels (total, 1,370 x 744) 921,600 pixels (effective, 1,280 x 720)
Optical Filters	CC: Cross, 3200K, 4300K, 6300K ND: CLEAR, 1/4ND, 1/16ND, 1/64ND
Quantization	10 bits
Processing	74.1758MHz (59.94Hz), 74.25MHz (60Hz)
Programmable Gain	-6/-3/0/+3/+6/+9/+12/+18/+24/+30 dB
Super Gain	+18/+24/+30/+36 dB
Shutter Speed	1/100, 1/120, 1/250, 1/500, 1/1000 and 1/2000 sec.
Syncro Scan Shutter	20~99.5%
Frame Rate	4 fps to 60 fps (in single increments)
Sensitivity	2000 Lux at F12 (89.9% reflection, 23.98p, 50% shutter)
Minimum Illumination	0.7 lux (F1.4, +36 dB gain 59.94p)
Video S/N	54 dB (typical)
Horizontal Resolution	700 TV lines at center
Registration Error	Less than 0.03% (whole zone, without lens distortion)
Geometric Distortion	Below measurable limit
Lens Mount	2/3" Bayonet type
Viewfinder	AJ-HVF27 (optional)
VTR Section
Recording Format	DVCPRO HD (720p, 59.94Hz/720p, 60Hz)
Tape	1/4" DVCPRO HD cassette tape
Tape Speed	135.28 mm/s (59.94Hz), 135.42 mm/s (60Hz)
Recording Time	Max. 46 minutes using AJ-HP46LP
FF/REW Time	About 3 minutes using AJ-HP46LP
VTR Section-Video
Sampling Frequency	Y: 74.1758MHz, Pb/Pr: 37.088MHz (59.94Hz) Y: 74.25MHz, Pb/Pr: 37.125MHz (60Hz)
Quantization	8 bits
Error Correction	Reed-Solomon product code
Compression Ratio	6.7:1
Bit Rate	100 Mbps
Video Band	Y: 20MHz, Pb/Pr: 10MHz
Audio
Sampling Frequency	48kHz (59.94Hz)/48.048kHz (60Hz)
Quantization	16 bits/sample
Frequency response*	20Hz to 20kHz, ±1.0dB (reference level)
Dynamic range*	More than 85dB (1kHz, AWTD)
Distortion*	Within 0.1% (1kHz, reference level)
Wow & Flutter*	Below measurable limit
Headroom*	20dB
Input
Audio IN	XLR x 2 (CH1/CH2), MIC/LINE/MIC+48V switchable MIC: -60 dBu, LINE: +4dBu
MIC IN	XLR x 1, balanced, Phantom +48V (On/Off)
Genlock IN	BNC x 1, 1.0Vp-p 75
TC IN	BNC x 1, 0.5 to 8Vp-p, High-impedance
Output
HD SDI OUT	BNC x 2, 0.8Vp-p 75
Audio OUT	XLR-5pin x 1, +4dBu
TC OUT	BNC x 1, 2.0Vp-p low-impedance
Phones	Stereo mini-jack x 1
Others
DC IN	XLR-4pin x 1 DC11V to 17V
DC OUT	4P x 1, DC11V to 17V, 100 mA
Lens	12P x 1
ECU	6P x 1
EVF	20P x 1

*The above specifications were measured by playing back tapes recorded by this unit on standard DVCPRO HD VTRs.Weight and dimensions shown are approximate. Features and specifications are subject to change without notice. These products may be subject to export regulations.

AJ-HDC27F(P) / AJ-HDC27F(E)

AJ-HDC27F(E) [PAL] Specifications

General
Power Supply	DC 11V to 17V
Power Consumption	33 W (without VF, SAVE REC MODE); 39 W typical operating conditions
Operating Temperature	0° C to 40° C
Operating Humidity	Less than 85%
Weight	About 4.5 kg About 7.2 kg in operation
Dimensions (W x H x D)	132 x 204 x 313 mm
Camera Section
CCD Elements	2/3" IT 3-CCD (RGB)
Picture Elements	1,019,280 pixels (total, 1,370 x 744) 921,600 pixels (effective, 1,280 x 720)
Optical Filters	CC: Cross, 3200K, 4300K, 6300K ND: CLEAR, 1/4ND, 1/16ND, 1/64ND
Quantization	10 bits
Processing	74.25MHz (60Hz), 74.1758MHz (59.94Hz)
Gain	Programmable: -6/-3/0/+3/+6/+9/+12/+18/+24/+30 dB
Super Gain	+18/+24/+30/+36 dB
Shutter Speed	1/60, 1/100, 1/120, 1/250, 1/500, 1/1000 and 1/2000 sec.
Syncro Scan Shutter	0.8%~97.2% (3.0°~350.0°)
Frame Rate	4 fps to 60 fps (in single increments)
Sensitivity	2000 Lux at F12 (89.9% reflection, 23.98p, 50% shutter)
Minimum Illumination	0.7 lux (F1.4, +36 dB gain 59.94p)
Video S/N	54 dB (standard)
Horizontal Resolution	700 TV lines at center
Registration Error	Less than 0.03% (whole zone, without lens distortion)
Geometric Distortion	Below measurable limit
Lens Mount	2/3" Bayonet type
Viewfinder	AJ-HVF27 (optional)
VTR Section
Recording Format	DVCPRO HD (720p, 60Hz/720p, 59.94Hz)
Tape	1/4" DVCPRO HD cassette tape
Tape Speed	135.42 mm/s (60Hz), 135.28 mm/s (59.94Hz)
Recording Time	Max. 46 minutes using AJ-HP46LP
FF/REW Time	About 3 minutes using AJ-HP46LP
VTR Section-Video
Sampling Frequency	Y: 74.25MHz, Pb/Pr: 37.125MHz (60Hz) Y: 74.1758MHz, Pb/Pr: 37.088MHz (59.94Hz)
Quantization	8 bits
Error Correction	Reed-Solomon product code
Compression Ratio	6.7:1
Bit Rate	100 Mbps
Video Band	Y: 20MHz, Pb/Pr: 10MHz
Audio
Sampling Frequency	48.048kHz (60Hz), 48kHz (59.94Hz)
Quantization	16 bits/sample
Frequency response*	20Hz to 20kHz, ±1.0dB (reference level)
Dynamic range*	More than 85dB (1kHz, AWTD)
Distortion*	Within 0.1% (1kHz, reference level)
Wow & Flutter*	Below measurable limit
Headroom*	18 dB
Input
Audio IN	XLR x 2 (CH1/CH2),MIC/LINE/MIC+48V switchable LINE: 0 dBu,MIC: –60 dBu MIC+48V: Phantom +48V, –60 dBu
MIC IN	XLR x 1, balanced, –40dBu (switchable to –50dBu using internal switch) Phantom +48V (On/Off)
Genlock IN	BNC x 1, 1.0Vp-p 75
TC IN	BNC x 1, 0.5 to 8Vp-p, High-impedance
Output
HD SDI OUT	BNC x 2, 0.8Vp-p 75
Audio OUT	XLR-5pin x 1, 0 dBu
TC OUT	BNC x 1, 2.0Vp-p low-impedance
Phones	Stereo mini-jack x 1
Others
DC IN	XLR-4pin x 1 DC11V to 17V
DC OUT	4P x 1, DC11V to 17V, 400 mA
Lens	12P x 1
ECU	6P x 1
EVF	20 x 1

*The above specifications were measured by playing back tapes recorded by this unit on standard DVCPRO HD VTRs.
Weight and dimensions shown are approximate.
Features and specifications are subject to change without notice.
These products may be subject to export regulations.
