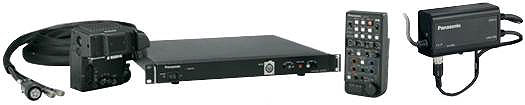

Designed for applications where the camera is
used on-shoulder, the P2 Studio package expands on the basic camcorder studio
package -- including the compact digital Base Station (AG-BS300), a lightweight
camera adapter (AG-CA300G), and an Extension Control Unit (AG-EC4G) - by adding
an AG-YA500G viewfinder interface box. With the YA500G, users can display return
video and tally in the ENG viewfinder.
The AG-BS300 digital base station, which features two HD/SD SDI outputs and a
composite video output, connects with the AG-CA300G camera adapter via optional
studio cables, available in 100-meter (approx. 328 ft.), 50-meter (approx 164
ft.), and 25-meter (approx 82 ft.) lengths. The AG-EC4G extension control unit
provides remote control of the base station and be used remotely or attached
directly the camera. It comes standard with a 10-meter (approx. 32 ft.) cable,
and can be extended up to 50 meters (approx. 164 ft.) with optional cables.
- Flexible camcorder studio system for
applications that require tally indication and return in the ENG viewfinder
(e.g. shooting on-shoulder)
- Viewfinder interface box compatible with
Panasonic AJ-CVF100G, AJ-HVF21G, AJ-VF20WB and AJ-VF15B viewfinder models
(NOT for use with the AG-HPX300 camcorder's viewfinder)
- AG-EC4G Extension control unit offers
control of gain up/down, output camera/bar selection (linked to auto knee),
white balance A/B/Preset selection, AWB/ABB execution, shutter SS/Fix/Off
selection and speed setting, iris auto/manual selection and adjustment,
master pedestal, painting, camera menu settings, recorder operation (Rec/Play/FF/Rew/Rec
check) and programmable user buttons
- Lightweight camera adapter mounts
directly on back of camcorder with two short interconnections for added
flexibility
- Optional accessories include the
300LenReturn cable, which enables access to return video for framing shots,
a range of studio cables, shelf rack kit and rack unit
- Optional battery plate required when
using local battery sources (Anton Bauer, IDX, etc.)
|
Specifications |
|
AG-CA300G Camera Adaptor |
AG-BS300 Base Station |
Power Supply:
Weight:
Dimensions (WxHxD):
Output Connectors:
Input Connectors:
Accessories: |
Input: DC 24 V, 4 A
DC 12V, 6 A
Output: DC 13 V, 5 A
Main unit:3.0 lbs (1.35 kg)
Battery plate:0.3 lbs (150 g)
6-11/16" x 5-3/4" x 4-3/16"
(159 mm x 146 mm x 105 mm)
BS OUT (BNC x 1)
GENLOCK OUT (BNC x 1)
REMOTE (10 pin)
INCOM (XLR x 1, 5 pin (female))
VF OUT (D-sub, 15 pin)
RET OUT (BNC x 1)
DC OUT (2 pin)
SDI IN (BNC x 1)
BS IN (BNC x 1)
DC IN (5 pin)
RET CTRL (6 pin)
BATTERY IN (2 pin)
REMOTE Cable, VF Cable,
Battery Plate, Cable Strap |
Power Supply:
Weight:
Dimensions (WxHxD):
Output Connectors:
Input Connectors:
Accessories: |
Input: AC 100 - 240 V, 50/60 Hz,
1.6 A - 0.6 A
DC 12 V, 1.1 A
Output:DC 13 V, 5 A
DC 13V, 0.3A (Remote power)
11.0 lbs (5.0 kg)
17-1/16" x 1-3/4" x 14-3/16"
(432 mm x 44 mm x 360 mm)
SDI OUT (BNC x 2)
VIDEO OUT (BNC x 1)
CA OUT (BNC x 1)
GENLOCK LOOP OUT (BNC x 1)
DC24V OUT (5 pin)
INCOM (XLR x 1, 5 pin (female))
INCOM / TALLY (D-sub, 9 pin)
CA IN (BNC x 1, from AG-CA300G)
RET IN VIDEO (BNC x 1)
GENLOCK IN (BNC x 1)
DC 12V IN (XLR x 1, 4 pin ,SW)
AC IN (AC INLET)
REMOTE (10 pin)
AC Code, Rack Mount Adaptor |
|
AG-EC4G Extension Control Unit |
AG-YA500G
Viewfinder Interface BOX |
Power Supply:
Power Consumption:
Weight:
Dimensions (WxHxD):
Input/Output Connectors:
Accessories: |
DC 12 V
25 W
1.4 lbs (620 g)
3-1/4" x 7-1/8" x 2-1/4"
(82 mm x 180 mm x 56 mm)
excluding Knobs
CAM / BS (10 pin)
VIDEO OUT (BNC x 1)
Remote Cable (10 pin, 32'/10 meters) |
Power Supply:
Power Consumption:
Weight:
Dimensions (WxHxD):
Input/Output Connectors:
Accessories: |
DC 5.6 V, DC – 5.6 V
0.7 W
1.0 lbs (450 g)
4-9/16" x 2-3/8" x 1-5/8"
(115 mm x 60 mm x 41 mm)
excluding protruding parts
LENS (12 pin)
CAM LENS (12 pin)
CAM VF (20 pin)
VF (20 pin)
CA VF (D-sub 15 pin)
Mounting Bracket x 1, Mounting Screws |
|
