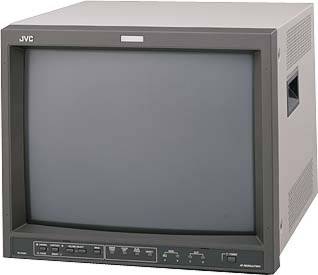

JVC 17-inch SDTV COLOR MONITOR

JVC Professional MonitorJVC Professional Monitor
TM-H1750CG (Discontinued)

Discontinued

JVC Professional Monitor
Product Code:TMH1750CG



SPECIFICATION

Color system NTSC/PAL
CRT 17" (diagonally measured), trio-dot pitch 0.27 mm, P-22 phosphor
Scanning Frequency f(H) 15.734 kHz (NTSC)/15.625 kHz (PAL) f(V) 59.95/50 Hz
Horizontal resolution more than 750 TV lines
Power Requirements 120V AC (UL)/230V AC (CE)
Color Temperature 6,500°K/9,300°K
Input Terminals

Input A Composite Video, BNC x 2, bridged-output possible

Input B Composite Video, BNC x 2, bridged-output possible, Y/C priority input,

mini DIN 4-pin x 2, bridged-output possible

Input Slot 1 slot port for 1 input card for Component or SDI card
Remote Terminal D-sub 15-pin x1, MAKE CONTACT for functions of
- Input Select
- Aspect Changeover (16:9/4:3)
- Color Off
- Underscan
- Tally Lamp
Optional Accessories Component Input Card (IF-C01COMG)
SDI Input Card (IF-C01SDG)
EIA Rack Mount Adapter (RK-C1700E)
Dimensions 15-5/8 x 13-1/4 x 16-1/2 inches (W x H x D) 395 x 334 x 418 mm
Weight  44.3 lbs. ( 20.1 kg)
