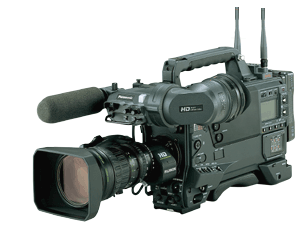

Panasonic DVCPROHD  AJ-HDX400E Camera-Recorder (Discontinued)


AJ-HDX400E
 Product Code:AJHDX400E
Specification

AJ-HDX400EAJ-HDX400E

FEATURES

  • Optimal balance and operating ease for comfortable shooting

  • F10 sensitivity and digital super gain

  • Enhanced image quality with 12-bit A/D, 12-axis color correction, and cine-like gamma

  • A new approach to HD acquisition with digital zooming and a pre-recording function

  • A DVCPRO HD-LP VTR section that uses the compact M cassette

  • Stereo recording with 4-channel audio input and a 5-pin XLR mic

  • Complete with SD down-converter out, and ready for a GPS unit and slot-in wireless receiver

  • VTR section: High-quality recording of progressive scan images.

  • The functions that professionals need, in a compact, lightweight unit with low power consumption.




AJ-HDX400 [PAL] Specifications
General
Power Supply: DC 12 V (11 V to 17 V)
Power Consumption: 37 W
Operating Humidity: 10 % to 85 %
Operating Temperature: 0�C to +40�C
Dimensions (W x H x D): 129 x 204 x 313 mm
Weight: About 4.4 kg
About 7.7 kg operation
Continuous Rec Time: About 120 min. with Anton/Bauer Dionic 80/80W
Camera Section
CCD Elements: 2/3� HD Progressive CCD
Picture Elements: Total:1370 (H) x 744 (V)
Effective: 1280 (H) x 720(V)
Optical System: F 1.4 prism system
Optical Filters: CC: Cross, 3200K, 4300K, 6300K
ND: CLEAR, 1/4ND, 1/16ND, 1/64ND
Quantization: 12 bits
Sampling Frequency: 74 MHz
Programmable Gain: �3/0/+3/+6/+9/+12/+15/+18/+21/+24/+27/+30 dB
Super Gain: +30/+36/+42/+48 dB
Digital Super Gain: +6/+10/+12/+15/+20 dB
Line Mix Gain: +6 dB (On/Off)
Shutter Speed: 1/60, 1/120, 1/250, 1/500, 1/1000 and 1/2000 sec.
Syncro Scan Shutter: 25PsF:1/25.2 to 1/209.4 sec.
50I:1/50.2 to 1/209.4 sec.
Sensitivity: F10.0 at 2000 Lux, 89.9% reflect
Minimum Illumination: 0.008 Lux at +48 dB +20 dB +6 dB Gain
Video S/N: 54 dB (typical)
Horizontal Resolution: 700 TV lines at centre
Registration Error: Less than 0.03 % (whole zone, without lens distortion)
Lens Mount: 2/3" Bayonet type
VTR Section
Recording Fromat: DVCPRO HD-LP (1080/25PsF, 1080/50i)
Tape: 6.35 mm wide metal tape (DVCPRO HD M cassette)
Tape Speed: 67.708 mm/s
Max Rec Time: Approx. 33 min (using AJ-HP33EMG)
FF/REW Time: About 1.5 min. (using AJ-HP33EMG)
Pre-Recording Time: Max. 10 sec
Video
Sampling Frequency: Y: 74 MHz, PB/PR: 37 MHz
Quantization: 8 bits
Compression Method: DCT and Variable-length Coding
Compression Ratio: 6.7:1
Error Correction: Reed Solomon Product Code
Bit Rate: 100 Mbps
Audio
Sampling Frequency: 48 kHz (sync. with video)
Quantization: 16 bits
Frequency Response: 20 Hz to 20 kHz, �1.0 dB (reference level)
Dynamic Range: More than 85 dB (1kHz, AWTD)
Distortion: Within 0.1% (1 kHz, reference level)
Wow & Flutter: Below measurable limit
Head Room: 20 dB
Input
Audio IN: XLR-3pin x 2 (CH1/CH2),
LINE/MIC/MIC +48 V switchable
LINE: 0/+4 dBu, MIC: �60/�50 dBu,
MIC+48V:Phantom +48 V, �50/�60 dBu,
MIC IN: XLR-5pin x 1, Stereo, �40/�50 dBu, Phantom +48 V
Wireless IN: 25pin D-sub, �40 dBu
Genlock IN: BNC x 1, HD/SD (V lock)
TC IN: BNC x 1, 0.5 to 7.0 Vp-p, high impedance
Output
HD SDI OUT: BNC x 1, 0.8Vp-p
Video OUT: BNC x 1, SD Composite (Down Convert Out)
Audio OUT: XLR-5pin (CH1/CH2), 0/+4 dBu
TC OUT: BNC x 1, 2.0 Vp-p, low impedance
Phones: Stereo mini jack x 2 (Front/Rear)
Others
DC IN: XLR-4pin, DC12 V (DC11V to 17 V)
DC OUT: 4pin x 1, DC12V (DC11V to 17 V), 1 A
Lens: 12pin x 1
ECU: 6pin x 1 (AJ-EC3E)
EVF: 20pin x 1
GPS: 6pin x 1 (AJ-GPS900G)
Receiver: UniSlot Wireless Receiver
*DVCPRO HD EX tapes recorded with the AJ-HDX400 can be played on a DVCPRO HD VTR (AJ-HD1700/AJ-HD1200A).
