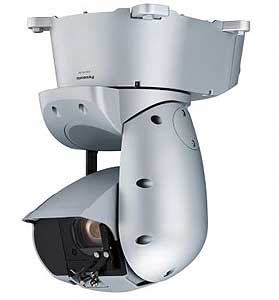

| General
|
- |
| Power Requirements
|
DC 12 V to 21.8 V (DC IN connector)
DC 42 V to 57 V (PoE++ power supply) |
| Current consumption
|
3.1 A to 5.5 A (DC IN connector)
1.2 A (PoE++ power supply) |
| Ambient Operating Temperature
|
-15 °C to 45 °C (5 °F to 113 °F)
(preheating is required when -5 °C (23 °F) or less) |
| Ambient Operating Humidity
|
10% to 100% (no condensation) |
| Storage Temperature
|
-20 °C to 55 °C (-4 °F to 131 °F) |
| Storage Humidity
|
10% to 95% (no condensation) |
| Mass
|
Approx. 9.0 kg (19.84 lb) |
| Dimensions (W x H x D)
|
258 mm x 357 mm x 397 mm
(10-5/32 inches x 14-1/16 inches x 15-5/8 inches)
(including protrusions and cable cover) |
| Finish
|
Silver, salt resistant coating |
| Waterproof and Dust Proof
|
IP65 compliant |
| Maximum Permissible Wind Speed
|
15 m/sec: Operates normally
50 m/sec: Operation possible
60 m/sec: No damage |
| Wiper
|
Installed as standard |
| Heater
|
Installed as standard |
| Defroster
|
Installed as standard |
| Controller Supported
|
AW-RP120G, AW-RP50, AK-HRP200G
・ It may be necessary to upgrade the version of the
controller in order to support the unit. For details on
upgrading, visit the support page on the following website.
|
| Camera Unit
|
- |
| Imaging Sensors
|
1/2.86-type Full-HD 3MOS |
| LENS
|
Optical 20x zoom/10x digital zoom, F1.6 to F3.4
(f=4.5 mm to 90 mm; 35 mm equivalent: 32.13 mm to 642.5 mm) |
| Focus
|
Switching between auto and manual |
| Focus Distance
|
Entire zooming range: 800 mm (2.62 ft)
Wide end: 400 mm (1.31 ft) |
| Color separation optical system
|
3MOS |
| MINIMUM ILLUMINATION
|
2 lx (50 IRE, F1.6, 36 dB, without accumulation) |
| Horizontal Resolution
|
1000 TV lines Typ (Center area) |
| Gain Selection
|
Auto, 0 dB to 42 dB (1 dB steps)
37 dB to 42 dB is Super Gain Mode |
| Frame Mix
|
0 dB, 6 dB, 12 dB, 18 dB, 24 dB
・ This cannot be configured when the format is 1080/29.97p, 1080/23.98p, 1080/29.97PsF, 1080/23.98PsF, 1080/25p, or 1080/25PsF.
・ When [Iris Mode] or [Focus Mode] is set to [Auto], this cannot be set to 18 dB or 24 dB. |
| Electronic Shutter Speed | 59.94p/59.94i
|
1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 |
| Electronic Shutter Speed | 29.97p
|
1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 |
| Electronic Shutter Speed | 23.98p
|
1/24, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 |
| Electronic Shutter Speed | 50p/50i
|
1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 |
| Electronic Shutter Speed | 25p
|
1/25, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 |
| Synchro Scan | 59.94Hz
|
60.15 Hz to 642.21 Hz (255 steps) |
| Synchro Scan | 50Hz
|
50.15 Hz to 535.71 Hz (255 steps) |
| Gamma
|
HD, FILMLIKE1, FILMLIKE2, FILMLIKE3
0.30 to 0.75 (Manual setting) |
| WHITE BALANCE
|
AWB A, AWB B, ATW, 3200K, 5600K, VAR (2000K to 15000K) |
| Chroma Amount Variability
|
OFF, -99% to 40% |
| Scene File
|
Scene1, Scene2, Scene3, Scene4 |
| Intelligent Functions
|
Auto function for each of accumulation, gain, iris, electronic shutter, ND, and ATW |
| Output Format
|
1080/59.94p, 1080/29.97p*1 , 1080/23.98p*2 , 1080/59.94i,
1080/29.97PsF*3 , 1080/23.98PsF*3 , 720/59.94p, 1080/50p,
1080/25p*1 , 1080/50i, 1080/25PsF*3 , 720/50p |
| Synchronization System
|
Internal/External synchronization (BBS/Tri-level sync) |
| Line Input Audio In 1/2 | Input Impedance
|
High impedance |
| Line Input Audio In 1/2 | Input
|
2 channels, XLR balanced input
・ Input signal level: +4 dBu/0 dBu/-20 dBu (selectable in menu)
・ Volume variable range: -40 dB to +12 dB
(can be changed in 1 dB steps in the menu) |
| Line Input Audio In 1/2 | Output
|
・ 4 channels, superimposed over SDI output
・ Embedded audio output level:
FS-12 dB: -12 dBFS, FS-18 dB: -18 dBFS, FS-20 dB: -20 dBFS
(selectable in menu)
・ Sampling frequency: 48 kHz (synchronized to video)
・ Quantization bit rate: 24-bit (LPCM)
・ Audio compression format (IP): G.726, AAC-LC (High quality) |
| INPUT
|
- |
| Input Connector | 12V IN
|
XLR connector |
| Input Connector | G/L IN
|
BNC connector
・ BBS (Black Burst Sync), tri-level sync supported
・ Locking to a subcarrier is not possible with BBS. |
| Input Connector | Audio input
|
mini XLR connector (line input)
#1: INPUT1 Common, #2: INPUT1 HOT, #3: INPUT1 COLD,
#4: INPUT2 Common, #5: INPUT2 HOT, #6: INPUT2 COLD |
| OUTPUT
|
- |
| Video Output | HD-SDI OUT
|
SMPTE424/SMPTE292 standards
75 Ω (BNC x 2)
・ OSD output is possible from the SDI OUT 1/PM
connector but not from the SDI OUT 2 connector. |
| INPUT/OUTPUT
|
- |
| Input/Output Connector | LAN
|
LAN connector for IP control/video output/audio output/
PoE++ power supply
PoE++ (IEEE802.3bt Draft ver.2.0 standard) |
| Input/Output Connector | RS-422
|
CONTROL IN RS-422A |
| Input/Output Connector | EXT
|
#1: DC GND, #2: HOT, #3: COLD, #4: 12V-OUT |
| Pan-tilt Head Unit
|
- |
| Installation Method
|
Stand-alone (Desktop) or suspended (Hanging)
・ To ensure safety, the unit must be secured using the mount bracket supplied. |
| Camera/Pan-Tilt Head Control | IP Connecting Cable
|
・ When connecting through a PoE++ hub:
LAN cable*4 (category 5e or above, straight cable), max. 100 m (328 ft)
・ When a PoE++ hub is not used:
LAN cable*4 (category 5 or above, straight cable) max. 100 m (328 ft) |
| Camera/Pan-Tilt Head Control | AW Series Connecting Cable/Standard Protocol Connecting Cable
|
LAN cable*4 (category 5 or above, straight cable),
max. 1000 m (3280 ft) |
| Pan/Tilt Operation Speed
|
Maximum speed 60°/s or higher |
| Panning range
|
±175°
・ For suspended installations, the positions of the pins that
determine the movement range must be changed. |
| Tilting Range
|
-30° to 210°
・ Depending on the pan or tilt position, the camera may be
reflected in the image.
・ For suspended installations, the positions of the pins that
determine the movement range must be changed. |
| Quietness
|
60°/s (NC45 or less) |
| Vibration Correction
|
D.I.S.S. (Dynamic Image Stabilizing System) |
| Accessories
|
Hexagonal bolt
M8 × 30 mm: 4
M8 washer : 4
Spring washer: 4
Cable cover : 1
Washer nozzle mount bracket: 1
Drop-prevention wire : 1
Drop-prevention wire
mounting screw (with hexagonal socket, for unit)
M4 × 10 mm : 1 |
| Note
|
*1: Native output *2: Over 59.94i output *3: For 1080/25PsF, 50i may be displayed on the monitor screen. Furthermore, for 1080/23.98PsF and 29.97PsF, 59.94i may be displayed on the monitor screen. *4 Use of an STP
(shielded twisted pair) cable is recommended. ・ When connecting directly to a controller without an Ethernet hub, use a cross cable. |
