Upgrade &
Future Proof Your Remote Camera
Systems

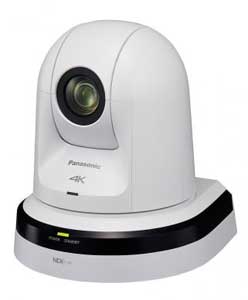

The professional video
industry's first integrated 4K PTZ
camera, the AW-UN70 is your key to
best-in-class pan/tilt/zoom 4K IP
streaming and in-camera 4K
recording. It delivers 3840 x 2160
resolution images at 29.97p/25p via
HDMI, and is capable of doing it via
IP streaming or in-camera. Featuring
key production orientated features
such as genlock, Optical Image
Stabilization (O.I.S) and remote
switchable ND filters.
It's
All About the Image
The AW-UN70
features a next-generation
1/2.3-type MOS sensor and DSP
(Digital Signal Processor) for high
sensitivity and high resolution up
to UHD/30p. With the four-drive lens
system, three zoom lenses and one
focus lens are driven independently
and simultaneously achieving a
smaller body and a zoom mechanism
with high magnification and high
image quality. The AW-UN70W/K has a
high-resolution 20x optical zoom and
a high-performance iA 22x zoom (4K
mode). Built-in optical image
stabilization excels in vibration
caused by wind,
subwoofers/loudspeakers, ventilation
systems, and more.
Broadcast
& Production Ready
The AW-UN70 is
quite a step up from the AW-HE40
introducing broadcast/production
oriented feature-sets including a
motorized ND filter wheel for varied
lighting environments, 3G SDI for up
to 1080/59.94p output, external sync
input (genlock), and more. Even for
HD usage, a higher image quality is
achieved with a higher quality lens
system which has better focus
tracking and evenness throughout the
image.
Connected –
Professional Interfacing for all
sorts of remote production
Video Outputs:
Standard professional interfaces
include HDMI, as well as IP/Network
for single cable delivery of
high-quality content up to 1080/60p.
Audio Input:
Audio input and embedding (on IP,
HDMI) are also available via a
switchable, stereo MIC/LINE input.
Serial Control:
RS-422 serial compatibility is
available for serial-based control
workflows (i.e. connection to
AW-RP50/120 or previous
controllers). RS-232 and RS-422
VISCA protocol is available when
introducing a Panasonic camera into
an existing control structure.
USB or microSD Card
Recording: The mini-USB
connector allows the AW-UN70 to be
utilized as a USB camera utilizing
standard USB Video/Audio class
drivers. Many applications that
connect to USB cameras, such as
teleconferencing or software
switching solutions, will be able to
connect to the UN70 without external
converters. Alternatively, microSD
recording enables ISO MP4/H.264
recording internally in the UN70,
transfer of content over the network
via a web browser or FTP.
Network Connected |
The LAN port on the UN70
unleashes the possibilities:
•
Power of Ethernet+ (PoE+) for easier
system installation and setup.
•
Control the camera via the network
with an AW-RP50/120 hardware
controller or Panasonic software
solutions
•
Access the built-in web interface to
monitor and control all aspects of
the camera
•
Utilize a supported third-party
control system from broadcast
control systems, switchers, lecture
capture systems, AV Control system
and more
•
By default, the camera has a
built-in H.264/MJPEG encoder for 7
channels of encoding up to 25Mbps.
Pair with a supported hardware or
software decoder.
•
Built-in NDI®|HX (a technology of
NewTek Inc.) for the ultimate single
cable production workflow with
ultra-low latency video, audio,
control, tally, and power over a
single cable
Flexible
Installation & Mounting
Blend-in: The
camera is exceptionally easy to
integrate and is available in two
colors (-W: pearl white and -K:
black matte) to suit a wide range of
applications.
Ceiling
Mount: A twist-lock ceiling
mount is included as a standard
accessory.
Tripod Mount
for Mobile Production: The
UN70 is also equipped with a 1/4-20
tripod mounting screw receptacle and
a safety lanyard for use with many
mounting and grip systems.
Wall Mount: An
optional heavy-duty wall mount is
available in either black
(FEC-40WMK) or white (FEC-40WMW). |
| Color
|
Black (K) or White (W) |
| General
|
- |
| Sensor
|
1/2.3 inch MOS |
| Optical Zoom
|
20x |
| i.Zoom
|
30x |
| DIGITAL ZOOM
|
12x |
| FOV (Horizontal)
|
65.1° (W) - 3.2° (T) |
| FOV (Vertical)
|
39.5° (W) - 1.8° (T) |
| FOV (Diagonal)
|
72.4° (W) - 3.7° (T) |
| Focus
|
Auto / Manual |
| Horizontal Resolution
|
1300 Lines (UHD) |
| MINIMUM ILLUMINATION
|
0.35 lx |
| Gain
|
0 dB - 48 dB |
| Power
|
PoE+ or AC |
| Weight (kg)
|
Approx. 1.5 kg |
| Weight (lbs.)
|
3.30 lbs |
| Installation
|
Tripod, Wall*2, Ceiling |
| Mount Position
|
Invertible |
| Standard Warranty
|
1 Year |
| PTZ
|
- |
| Pan Range
|
±175 degrees |
| Tilt Range
|
-30 to 90° |
| Pan / Tilt Speed
|
300°/s (Preset) | 90°/s (M) |
| Operation noise
|
NC35 or Less |
| VIDEO OUTPUT
|
- |
| LAN with built-in NDI|HX*1
|
✓ |
| 3G-SDI
|
✓ |
| HD-SDI
|
✓ |
| SD-SDI
|
- |
| HDMI
|
✓ |
| Composite
|
- |
| USB
|
✓ |
| Output Format
|
2160/29.97p*3, 1080/59.94p, 1080/29.97p,1080/59.94i, 1080/29.97PsF, 720/59.94p, 2160/25p*3,1080/50p, 1080/25p, 1080/50i, 1080/25PsF, 720/50p |
| Control
|
- |
| Browser (PC/Mac/Mobile) via IP)
|
✓ |
| Live Production Center (Streaming Switcher/Controller)
|
AV-HLC100 |
| Wide-Angle Tablet Control
|
AW-HEA10 |
| IR Remote Control
|
AW-RM50 |
| Compact Controller
|
AW-RP50 |
| Full-Size Controller
|
AW-RP120 |
| Remote Operation Panel
|
AK-HRP200 |
| Compact Live Switcher
|
AW-HS50N |
| Features
|
- |
| IP Live Preview
|
✓ |
| Simultaneous Multi-Stream
|
✓ |
| Image Stabilization
|
Optical, Hybrid O.I.S. (FHD) |
| Night Mode (for IR)
|
✓ |
| Dynamic Range Stretch (DRS)
|
✓ |
| Audio Input / Embedding
|
✓ |
| Color Temperature Adjustment
|
✓ |
| Presets
|
Up to 100 |
| microSD Card Recording
|
✓ |
| High Dynamic Range (HDR)
|
✓ |
| Fanless Design
|
✓ |
| ND Filters
|
✓ |
| Genlock
|
✓ |
| Advanced Color Adjustment
|
- |
| Digital Noise Reduction (DNR)
|
✓ |
| Note
|
*1: This product is compatible with NDI|HX technology of NewTek, Inc.
*2: With appropriate right angle wall mount, available locally
*3: HDMI output only.
*4: When either 480/59.94p(i) or 576/50p(i) is selected, the output formats are delivered as follows: P signal for HDMI output and I signal for SDI output. |
| Weight
|
3.30 lbs |
|
