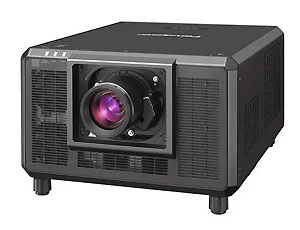

Panasonic PT-RQ35KU 3-Chip DLP™ 4K Laser Projector

Panasonic PT-RQ35U World's smallest and lightest 3-Chip DLP Projector

Revolutionize Projection with Streamlined Workflow

Despite its high brightness and jaw-dropping image quality, PT-RQ35K is the lightest 3-Chip DLP™ 4K projector in its class and can be carried by two people, saving resources.

Spellbinding Picture Quality

Two blue and one red laser expand color-space by 114 %*1. Vivid reds and deep, natural blues heighten realism and help create an immersive projection experience faithful to the artist’s intent..

Original Cooling System for Projection Stability

Cooling system and finless radiator reinforce reliability over 20,000 hours*2 of maintenance-free operation. Backup input and laser failover circuitry maintain image display in mission-critical situations.

Streamlined Installation Workflow

With a body 40 %*1 smaller than the PT-RQ32K and footprint approximate to the PT-RQ22K, PT-RQ35K Series is easily carried by two people. Setup on AC 100–120 V*2 minimizes delays while AC 200–240 V is rolled out. Preactivated upgrade kits for Geo Pro*3 expedite multi-screen calibration. You can check content on PC screen prior to projection via Remote Preview even while the projector is in Standby.

Spectacular Color for Multi-Screen Projection

Red and blue lasers achieve vivid reds and deep, natural blues with color-gamut reproduction expanded to 114 % (91 % DCI) over the PT-RQ32K. Newly developed Gradation Smoother reduces banding noise in gradients of shaded color. Improved edge-blending function allows you to adjust black border to screen curvature using up to 17 control points for precise black-level calibration

Smart Projector Control*4 with NFC Function*5

Get a head start on projector setup even without AC power: just pair your smartphone via NFC and enter Projector ID and IP address. Smart Projector Control app expedites network connection*6 with a QR Code displayed on Information Monitor, no SSID or password required. Adjust settings without menu projection and focus via smartphone camera*7

Engineered for Absolute Reliability

Dynamic Digital Control precisely adjusts red-laser output to image requirements and temperature. Projection stability is maintained by a dedicated cooling system. Finless radiator boosts cooling efficiency while shielded laser drive preserves image quality over 20,000 hours*8 of maintenance-free projection. Backup input and failover circuitry maintain image display in mission-critical situations.

General Specifications
Projector type	3-Chip DLP projector
DLP Chip | Panel Size	24.4 mm (0.96 in) diagonal (16:10 aspect ratio)
DLP Chip | Display Method	DLP chip x 3, DLP projection system
DLP chip | Number of Pixels	2,304,000 (1920 x 1200 pixels) x 3
Light Source	Laser diodes (Blue LD, Red LD)
Light output	30,500 lm/32,000 lm (Center)
Time until light output declines to 50 %	20,000 hours (Normal), 24,000 hours (Eco), 26,000 hours (Quiet)
Resolution	4K (3840 x 2400 pixels) (Quad Pixel Drive: ON)
Contrast Ratio	20,000:1 (Full On/Full Off, Dynamic Contrast [3])
Screen size [diagonal]	1.78–25.4 m (70–1,000 in), 1.78–15.24 m (70–600 in) with ET-D75LE8/ET-D3LET80, 3.05–15.24 m (120–600 in) with ET-D75LE95, 5.08–15.24 m (200–600 in) with ET-D3LEU100/ET-D3LEW200
Center-to-corner zone ratio	90%
Lens	Optional (no lens included with this model)
Lens shift | Vertical(From the origin point of the lens mounter)	±55 % (+78 %, +68 % with ET-D75LE95, ±48 % with ET-D3LEW200, ±44 % with ET-D75LE6/ET-D3LEW60) (powered)
Lens shift | Horizontal(From the origin point of the lens mounter)	±20 % (±15 % with ET-D75LE6/ET-D3LEW60/ET-D3LEW200, ±12 % with ET-D75LE95, +25 %, 0 % with ET-D3LEU100) (powered)
Keystone Correction Range	Vertical: ±45 ° (± 40 ° with ET-D75LE10/ET-D3LEW10/ET-D75LE20/ET-D3LES20, ±28 ° with ET-D75LE6/ET-D3LEW60, ±22 ° with ET-D3LEW50, ±15 ° with ET-D3LEW200, ±8 ° with ET-D3LEU100, +5 ° with ET-D75LE95), Horizontal: ±40 ° (±15 ° with ET-D3LEW50/ET-D75LE6/ET-D3LEW60, ±5 ° with ET-D3LEU100/ET-D3LEW200, 0 ° with ET-D75LE95) When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °.
Installation	Ceiling/floor, front/rear, free 360-degree installation
Terminals | SDI IN	–
Terminals | HDMI In	HDMI x 1 (Deep Color, compatible with HDCP 2.2, 4K/60p signal input)
Terminals | DVI-D IN	–
Terminals | MULTI PROJECTOR SYNC IN	BNC x 1
Terminals | MULTI PROJECTOR SYNC OUT	BNC x 1
MULTI PROJECTOR SYNC IN terminal/3D SYNC 1 IN/OUT terminal (dual purpose)	–
MULTI PROJECTOR SYNC OUT terminal/3D SYNC 2 OUT terminal (dual purpose)	–
Terminals | Serial In	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals | Serial Out	D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
Terminals | REMOTE 1 IN	M3 stereo mini-jack x 1 for wired remote control
Terminals | REMOTE 1 OUT	M3 stereo mini-jack x 1 for link control
Terminals | REMOTE 2 IN	D-sub 9-pin (female) x 1 for external control (parallel)
Terminals | DIGITAL LINK	RJ-45 x 1 for network and DIGITAL LINK connection (HDBaseT compliant), 100Base-TX, compatible with Art-Net, PJLink (Class 2), Deep Color, HDCP 2.2, 4K/60p signal input
Terminals | LAN	RJ-45 x 1 for network connection, PJLink (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
Terminals | USB	USB connector (Type A) x 1 for optional Wireless Module (AJ-WM50 Series)/USB Memory Stick
Terminals | DC OUT	USB Type A x 2 (for power supply, DC 5 V total of 2 A)
Terminals | Expansion slot	SLOT 1/SLOT 2 (total two terminals, vacant) for interface boards, SLOT NX compatible
Power Supply	AC 200 V–240 V (Light output will decrease when using the projector with AC 100 V to AC 120 V)
Power Consumption	2,550 W (Standby: 14 W)
Cabinet Materials	Molded plastic
Operation noise	49 dB (Normal), 46 dB (Quiet)
Dimensions (W x H x D)	Approx. 598 x 353 x 780 mm (23 17/32˝ x 13 29/32˝ x 30 23/32˝) (not including protruding parts)
Weight	69.8 kg (153.9 lbs)
Operating Environment	Operating temperature: 0–45 °C (32–113 °F)*7, operating humidity: 10–80 % (no condensation)
Applicable Software	Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Smart Projector Control for iOS/Android
