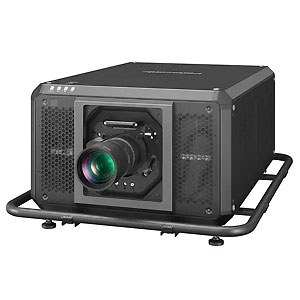

Panasonic PT-RQ50KU 4K 50,000 lm Large Venue Laser
Projector
Awe-Inspiring Color, Brightness, and
Resolution
The PT-RQ50K represents a milestone in projection
technology. Serving flawless Native 4K (4096 x 2160) images with a laser
engine that combines one red laser and two blue lasers operating at
different wavelengths, light output is doubled from the same footprint as
our 26,000 lm PT-RQ32K 4K projector. Deployed at sporting events, arena
concerts, outdoor mapping attractions, or museum exhibitions, the PT-RQ50K’s
refined power will exceed the highest expectations.
Newly Developed Laser Engine Expands the Color
Gamut
An all-new laser engine expands color-gamut to 114
% of our current PT-RQ32K flagship, achieving lush, vibrant hues that pull
audiences into the artist’s world. A new red laser enhances two blue lasers,
which output light at different wavelengths for high color accuracy.
Combined with digital frame-by-frame control to manage light output
according to the scene’s contrast and brightness requirements and dedicated
red-laser cooling to precisely control temperature, the PT-RQ50K attains
vivid reds and deep, natural blues for spectacular on-screen color
expression.
Compact All-in-One Body with Built-in Cooling
The PT-RQ50K’s laser engine and optical drive
doubles output power from the same compact footprint as the PT-RQ32K. A
redesigned airflow path and new finless radiator boosts the efficiency of
the liquid cooling system, while a separate cooling for the red laser is
regulated by Dynamic Digital Control for excellent image consistency and
high reliability. Space-saving design with integrated cooling systems bring
the logistic efficiencies of all-in-one projection to large-venue staging,
saving operators time and money.
Remote Preview Saves Time and Unnecessary
Stress
Newly introduced within Multi Monitoring & Control
Software and also accessible via web browser, Remote Preview allows
projectionists to check the content being received by the projector via a
Wi-Fi®- or LAN-connected laptop. It works with the projector in Standby,
with the shutter on, or when direct sunlight makes inspecting on-screen
images difficult. It gives a chance to fix errors between the source and
projector before setup is completed.
Built-in Upgrade Kits for Geo Pro Software Now
Preactivated
With the PT-RQ50K, upgrade features for Geometry
Manager Pro are built into the software and do not require paid activation.
Simply download and install Geo Pro to a PC to simplify advanced
multi-screen geometric adjustments. Built-in capabilities include uniformity
correction and Auto Screen Adjustment for automatic and simultaneous
calibration of multiple screens (including curved-screen correction) using a
compatible camera. These features expedite edge-blending and color-matching
in mapping applications with automatic calibration for black level,
brightness uniformity, and stacking.
Note: Register your projector at
PASS to download free Geometry Manager Pro software for PC. Note that Mac OS
is not supported. Compatible cameras comprise Panasonic AW-HE70/ AW-UE70 and
Nikon D5200/D5300/D5500/D5600. Visit PASS at for more information.
Geometric Adjustment with Free Grid Correction
via Remote Control
Free Grid is a function in Geometric Adjustment
that enables convenient grid-based image adjustment using the projector’s
remote controller. Grid resolutions of 2 x 2, 3 x 3, 5 x 5, 9 x 9, or 17 x
17 can be projected and areas of the image reshaped or geometrically altered
to compensate for screen distortions. This correction is easily performed by
adjusting control points located at grid-line intersections. Move freely
between grid resolutions to achieve the desired level of granularity without
losing work progress. This clever data-saving function allows technicians to
smoothly create a distortion-free projection in a wide range of installation
situations.
New Information Monitor
To further simplify setup and operation of the
PT-RQ50K, an Information Monitor is located on the side panel adjacent to
terminals and physical controls. The monitor provides menu-based navigation
for smooth setup of Projector ID and basic network configuration. It also
shows projector status including temperature, runtime, and active signal
data, as well as error codes should a problem be detected.
Dedicated Lenses Cover All Throw-Ratios
An exclusive new lineup of optional lenses for the
PT-RQ50K provides gapless throw-ratio coverage from 1.11–1.70:1 to
4.97–7.76:1, adapting projections to suit the installation site. All six
models support powered zoom, lens-shift, as well as lens memory and lens ID
for easier on-site adjustments. AFO (Active Focus Optimizer) feature
optimizes focus based on content APL, keeping images sharp and in focus.
Reliable Red-Laser Performance for Intense Color
Red lasers demonstrably heighten color expression.
However, implementation of the technology has been a challenge due to the
laser’s sensitivity to temperature fluctuation. Panasonic innovates a highly
stable red-laser drive that digitally controls light output within precise
parameters frame-by-frame using Dynamic Digital Control and an independent
cooling system. The additional red laser is key to the PT-RQ50K’s vivid red
reproduction and a superior RGB balance.
Shielded Laser Drive with Finless Radiator
Hermetically sealed DMD block, shielded laser
drive, and filterless cooling system is reinforced by a new finless radiator
that improves cooling efficiency by as much as 30 % over previous
implementations while protecting critical components from dust intrusion.
The projector exceeds common international dustproofing guidelines and is
manufactured in Japan to extremely rigorous quality control standards.
Business operators can expect up to 20,000 hours* of reliable
maintenance-free projection at full brightness.
Backup Input Guarantees Picture Display
If the primary signal is disrupted, the projector
switches to a backup input*1 in just 0.3 seconds at the fastest*2, so image
display is maintained when projection mustn’t be interrupted. No
screen-blanking occurs during backup input-switching.
| General Specifications |
| Specification |
Description |
| Projector type |
3-Chip DLP projector |
| DLP chip | Display method |
DLP chip x 3, DLP projection system |
| DLP chip | Number of Pixels |
8,847,360 (4096 x 2160) pixels x 3 |
| Light source |
Laser diodes (Blue LD, Red LD) |
| Resolution |
Native 4K (4096 x 2160 pixels) |
| Screen size [diagonal] |
2.54–38.1 m (100–1,500 in) with new optional lens for PT-RQ50K, 17:9 aspect ratio |
| LENS |
New optional lenses for PT-RQ50K (no lens included with this model) |
| Lens shift | Vertical (from center of screen) |
±45 % (±25 % with ET-D3QT600, ±30 % with ET-D3QT700/ET-D3QT800, ±40 % with ET-D3QW300) (powered) |
| Lens shift | Horizontal (from center of screen) |
±16 % (±8 % with ET-D3QT600, ±10 % with ET-D3QT700/ET-D3QT800, ±14 % with ET-D3QW300) (powered) |
| Keystone correction range |
Vertical: ±40° (±28° with ET-D3QW300), Horizontal: ±40° (±15° with ET-D3QW300) |
| Installation |
Horizontal/vertical, free 360-degree installation |
| Terminals | MULTI PROJECTOR SYNC IN |
BNC x 1 |
| Terminals | MULTI PROJECTOR SYNC OUT |
BNC x 1 |
| Terminals | SERIAL IN |
D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| Terminals | SERIAL OUT |
D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
| Terminals | REMOTE 1 OUT |
M3 stereo mini-jack x 1 for link control |
| Terminals | REMOTE 2 IN |
D-sub 9-pin (female) x 1 for external control (parallel) |
| Terminals | DIGITAL LINK |
RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT compliant), PJLink (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible |
| Terminals | LAN |
RJ-45 x 1 for network connection, PJLink (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
| Terminals | Expansion Slot 1 |
Interface Board for 12G-SDI (ET-MDN12G10) supplied |
| Terminals | Expansion Slot 2 |
Optional interface boards, SLOT NX compatible |
| Power supply |
AC 200–240 V, 50/60 Hz; AC 100–120 V, 50/60 Hz (Brightness restricted to one-fifth with a voltage of 100‒120 V) |
| Power consumption |
4,100 W (AC 100–120 V: 1,100 W, Standby Mode: 6 W) |
| Cabinet materials |
Metal (Partly Plastic Mold) |
| Operation noise |
52 dB |
| Dimensions (W x H x D) |
720 x 445 x 1,070 mm (28 11/32˝ x 17 17/32˝ x 42 1/8˝ ) (excluding handle, adjuster feet, and other protruding parts) |
| Operating environment |
Operating temperature: 0–45 °C (32–113 °F) , operating humidity: 10–80 % (no condensation) |
| Applicable software |
Logo Transfer Software, Multi Monitoring & Control Software, Geometry Manager Pro, Smart Projector Control for iOS/Android |
| Note |
1. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is the average of all products when shipped. 2. Average light-output value of all shipped products measured at the center of the screen in NORMAL Mode.
3. Around this time, the light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast [3], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. The estimated time until light output declines to 50 % varies depending on the environment.
4. Average value. It May differ depending on the actual unit.
5. The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) if the projector is used at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft).
6. When the optional AJ-WM50 wireless module is attached, operating temperature range becomes 0–40 °C (32–104 °F).
7. When using the projector at an altitude lower than 2,700 m (8,858 ft) above sea level, and the operating environment temperature becomes 30 °C (86 °F) or higher, the light output may be reduced to protect the projector. When using the projector at an altitude between 2,700 m (8,858 ft) and 4,200 m (13,780 ft), and the operating environment temperature becomes 25 °C (77 °F) or higher, the light output may be reduced to protect the projector. |
| Center-to-corner zone ratio |
90% |
| Terminals | USB |
USB connector (Type A) x 1 for optional Wireless Module (AJ-WM50 Series) / USB Memory Stick |
| Terminals | REMOTE IN |
M3 stereo mini-jack x 1 for wired remote control |
| Weight |
Approx. 126 kg (278 lbs) (without lens) |
| Terminals | DC OUT |
USB connector (Type A) x 2 for power supply only (DC 5 V, total of 2 A) |
| Contrast Ratio |
20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) |
| DLP chip | Panel size |
35.1 mm (1.38 in) diagonal (17:9 aspect ratio) |
| Time until light output declines to 50 %3 |
20,000 hours (NORMAL) |
| Light output |
50,000 lm / 51,000 lm (Center) |
|
