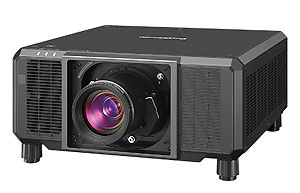

Panasonic PT-RZ14KU WUXGA 3-Chip DLP™ Laser Projector

Panasonic PT-RZ14KU WUXGA 3-Chip DLP Projector


• Efficient and Profitable Events Production

Based on the groundbreaking RQ25K Series, RZ14K weighs 20% less and is about 40% smaller than the previous RZ12K for efficient transport and installation. It supports existing 3-Chip DLP™ lenses5 and full-brightness projection on AC 100–240 V power2 Intel® Smart Display Module (Intel® SDM)-ready slot integrates proprietary or third-party function boards6 that adapt and scale connectivity. Save time with the NFC function, user test-pattern registration7, and preactivated upgrade kits for Geo Pro8

• Compelling Visuals That Inspire the Audience

RZ14K combines high brightness, resolution, contrast, and color accuracy for an awe-inspiring visual experience. Dynamic Contrast increases to 25,000:19 and includes new scene analysis circuitry that better recognizes light and dark areas of the image, dramatically enhancing realism. Gradation Smoother provides easy correction of color banding, while the black level function offers control-point border adjustment for curved screens.

• Maintenance-free Reliability to Reduce Downtime

The projector’s optical engine and laser light source module comply with the IP5X Dust Protected (IEC 60529)10 standard, and together with a filterless liquid cooling system, enable 20,000 hours11 of maintenance-free projection. Backup Input12 and Multi Laser Drive Engine enhance reliability and add insurance against interruptions that impact the guest experience.

Projector type	3-Chip DLP™ projector
DLP™ chip
Panel size	20.3 mm (0.8 in) diagonal (16:10 aspect ratio)
Display metdod	DLP™ chip x 3, DLP™ projection system
Number of pixels	2,304,000 (1920 x 1200 pixels) x 3
Light source	Laser diode
Light output1, 2	14,000 lm / 14,700 lm (Center)3
Time until light output declines to 50 %4	20,000 hours (NORMAL), 24,000 hours (ECO)
Resolution	WUXGA (1920 x 1200 pixels)
Contrast ratio2	25,000:1 (Full On/Full Off, Dynamic Contrast [3])
Screen size (diagonal)	1.78–25.40 m (70–1000 in), 1.78–15.24 m (70–600 in) witd ET-D75LE8/ET-D3LET80, 3.05–15.24 m (120–600 in) witd ET-D75LE95, 5.08–15.24 m (200–600 in) witd ET-D3LEU100/D3LEW200
Center-to-corner zone ratio2	90 %
Lens	Optional (no lens included witd tdis model)
Lens shift (From tde origin point of tde lens mounter)
Vertical	±66 % (±52 % witd ET-D75LE6/ET-D3LEW60/ET-D3LEW300, +71 % / +93 % witd ET-D75LE95, ±66 % witd ET-D3LEU100, ±57 % witd ET-D3LEW200) (powered)
Horizontal	±24 % (±18 % witd ET-D75LE6/ET-D3LEW60/ET-D3LEW300, ±14 % witd ET-D75LE95, -25 % / +30 % witd ET-D3LEU100, ±18 % witd ET-D3LEW200) (powered)
Keystone correction range	Vertical: ±45 ° (± 40 ° witd ET-D75LE10/ET-D3LEW10/ET-D75LE20/ET-D3LES20, ±28 ° witd ET-D75LE6/ET-D3LEW60/ET-D3LEW300, ±22 ° witd ET-D3LEW50, ±15 ° witd ET-D3LEW200, ±8 ° witd ET-D3LEU100, +5 ° witd ET-D75LE95), Horizontal: ±40 ° (±15 ° witd ET-D3LEW50/ET-D75LE6/ET-D3LEW60/ET-D3LEW300, ±5 ° witd ET-D3LEU100/ET-D3LEW200, 0 ° witd ET-D75LE95) When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °.
Installation	Ceiling/floor, front/rear, free 360-degree installation
Terminals
HDMI™ 1/2 IN	HDMI™ x 2 (Deep Color, compatible witd HDCP 2.3)
DisplayPort™	DisplayPort™ x 1 (Deep Color, compatible witd HDCP 2.3)
MULTI SYNC IN/ 3D SYNC 1 IN/OUT (dual purpose)	BNC x 1 (TTL high impedance. When [3D SYNC MODE] is set to output, TTL output: Maximum 10 mA)
MULTI SYNC OUT/ 3D SYNC 2 OUT (dual purpose)	BNC x 1 (TTL output: Maximum 10 mA)
SERIAL IN	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
SERIAL OUT	D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
REMOTE 1 IN	M3 stereo mini-jack x 1 for wired remote control
REMOTE 1 OUT	M3 stereo mini-jack x 1 for link control (for wired remote control)
REMOTE 2 IN	D-sub 9-pin (female) x 1 for external control (parallel)
LAN	RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
USB	USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory
DC OUT	USB Type A x 1 (for power supply, DC 5 V, 2 A)
Expansion slot	Open slot for for function boards, Intel® SDM compatible
Power supply	AC 100–120 V / AC 200–240 V
Maximum power consumption5	AC 200–240 V: 1,050 W (1,060 VA), AC 100–120 V: 1,080 W (1,090 VA)
On-mode power consumption (Operating mode)5	[NORMAL] 950 W [ECO] 780 W
Operation noise2	40 dB (NORMAL/ECO)
Dimensions (W x H x D)	Approx. 550 x 220 x 570 mm (21 5/8˝ x 8 11/16˝ x 22 7/16˝) (not including protruding parts)
Weight6	Approx. 35 kg (77.2 lbs)
Operating environment	Operating temperature: 0–45 °C (32–113 °F7), operating humidity: 10–80 % (no condensation)
Applicable software	Logo Transfer Software, Multi Monitoring & Control Software, Projector Network Setup Software, Early Warning Software, Geometry Manager Pro, Smart Projector Control for iOS/Android™
