Editing Controller
A Portable Editing Controller
For Enhanced Field Operations
|
|
|
|
Outline :

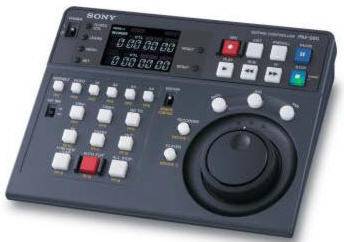

The RM-280 is a compact editing controller intended for simple VTR remote
control or basic two-machine editing.
Using the Sony 9-pin protocol, the RM-280 can control up to two VTRs . Its
extremely compact and lightweight design allows operators to use it as a
handheld VTR remote or place it on any space-limited desktop when used for
editing. Basic editing functions including
insert and assemble editing are available via its compact but clean button
layout, which is accompanied by a jog/shuttle dial. The RM-280 also supports
multiple frame rates. By offering such features at a very affordable price,
the RM-280 editing controller brings new conveniences into the field
operation and compact editing.
Editing Functions
-
Two-machine editing
-
Assemble and insert mode
-
Four-channel audio editing
-
A
variety of edit buttons such as
“IN- and OUT-POINT ENTRY”,
“+ and - TRIM”, “AUTO EDIT”,
“PREVIEW/REVIEW”, “GO TO”,
“ALL STOP”
-
TC/CTL/RTC (Relative Time Code) editing mode selectable
-
Pinch-on-delay time learning capability for accurate timing
adjustments of recorder and player edit in-points
-
Edit delay time setting
-
Cue signal or tally output via a mini-pin port
-
Equipped with reference video input for synchronization with other
equipment
VTR Remote Control
Functions
-
Remote control buttons including
PLAY, REWIND, FAST-FORWARD,
REC, STOP, PAUSE, EDIT, PREROLL
VTR Remote Control
Functions
-
Various
customizable settings
Other Features
-
Multiple system frequencies including 29.97, 25, 24, 23.98 Hz
-
Picture search using the jog/shuttle dial for jog, shuttle and
variable-speed playback modes
-
Can be powered using the supplied AC adaptor or directly from a
connected HDW-S280 HDCAM™ recorder from its DC output
-
Easy-to-use keyboard layout provides straightforward operations
-
Displays error messages on the VFD display, indicating the type of
errors and device name on which the malfunction occurred for instant
action to be taken
L Version
|
SPECIFICATION |
|
|
Power Requirements: DC 11 - 17 V Connectors:
|
1/4 type Super
HAD CCD |
|
Power Consumption: |
5 W Reference video input (BNC) x1
|
|
Mass: |
600 g (1 lb 5 oz) RS-232C x1 |
|
Dimensions (w x h x d): |
210 x 52 x 161 mm (8 3/8 x 2 1/8 x 6 3/8
inches) Mini-jack for REC TALLY or cue signal output x1 |
|
Operating Temperature: |
+5 to +40°C (+41 to +104°F) DC input x1
|
|
Storage Temperature: |
-20 to +60°C (-4 to +140°F)
|
|
Supplied Accessories: |
Operation manual (x1), 9-pin/DC multi-cable
(x1), AC adaptor (x1), template (x1) |
|
Connectors: |
RS-422A 9-pin remote x2
Reference video input (BNC) x1
RS-232C x1
Mini-jack for REC TALLY or cue signal output x1
DC input x1 |
|
 |
|
|
|
|
