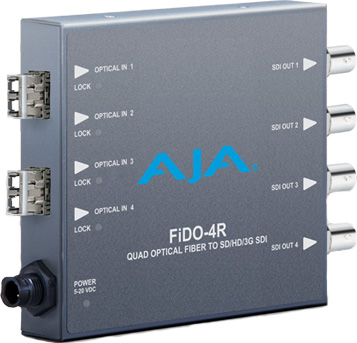

AJA FiDO-4R Quad Optical Fiber to SD/HD/3G-SDI

Home > Main > Convert > FiDO-4R
  • AJA FiDO-4R 3G-SDI Converter
    Product Code:FiDO4R
    Buy Sell Sales AJA FiDO-4R 3G-SDI Converter
    review button

  • Features
    - 4 simplex or 2 duplex input connections (LC connector)
    - 4 independent channels of SDI, HD-SDI, or 3G SDI
    - 4K SDI over 4 fiber links
    - Uses 5-20VDC power (DWP-U-R1 universal power supply included)
    - 5-year warranty
AJA FiDO-4R: Overview
AJA FiDO-4R Mini-Converters offer unmatched flexibility and cost efficiency for SDI-Fiber conversion, allowing for long cable runs up to 10km with electrical isolation - useful for eliminating ground loop problems. FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Specifications:
Formats 3Gb, 1.5Gb, 270Mb, Auto Select
Video Inputs and Outputs SDI (SMPTE 259/292/424), BNC
1x Single mode optical fiber, LC connector (FiDO-R, FiDO-T)
1x Single mode optical fiber, ST connector (FiDO-T-ST, FiDO-R-ST)
1x Single mode optical fiber, SC connector (FiDO-T-SC, FiDO-R-SC)
2x Single mode optical fiber, LC connectors (FiDO-2R, FiDO-2T, FiDO-TR)
4x Single mode optical fiber, ST connectors (FiDO-4R-ST, FiDO-4T-ST)
Cable Equalization
(BNC Inputs, 1694 coax)
270mb, 400m
1.5Gb, 200m
3Gb, 140m
Input/Output Return Loss (BNC) >15db, 270Mb - 3Gb
Optical Outputs Wavelength: 13 10 nm
Output Power: -2dBm typical
Size 4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm) - FiDO-T, FiDO-R, FiDO-T-ST, FiDO-R-ST, FiDO-T-SC, FiDO-R-SC, FiDO-2R, FiDO-2T, FiDO-TR
4.6" x 4.10" x 0.92" (117 x 105 x 24mm) - FiDO-4T-ST, FiDO-4R-ST
Power +5-20 VDC
1.5 watts (FiDO-T, FiDO-R, FiDO-T-ST, FiDO-R-ST, FiDO-T-SC, FiDO-R-SC)
2.5 watts (FiDO-2R, FiDO-2T, FiDO-TR)
4.0 watts (FiDO-4R-ST, FiDO-4T-ST)
Requires Power Supply (AJA power supply model DWP-U-R1 included)
