Analog Way Saphyr - H Seamless Presentation Switcher with 4 HDBaseT™ inputs

Analog Way Saphyr-H

Analog Way Saphyr - H Seamless Presentation Switcher with 4 HDBaseT™ inputs, up to 3 live layers and 2 operating modes.

Product Code: SPX450-H

Buy Sell Slae Analog Way Saphyr - H T HDBaseT
review

Features
• Ten-input hi-resolution mixer & seamless switcher
• 4 HDBaseT™ inputs and 2 mirrored HDMI / HDBaseT™ outputs
• 1 video output (CVBS, YPbPr, 3G-SDI)
• 2 modes: Seamless Mixer and Native Matrix
• Up to 3 live layers

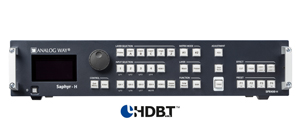

Analog Way Saphyr - H Seamless Presentation Switcher with 4 HDBaseT™ inputs

Analog Way Saphyr - H Ten-input hi-resolution mixer and seamless presentation switcher with four HDBaseT™ inputs, two mirrored HDMI / HDBaseT™ outputs, up to 3 live layers and 2 operating modes.

10 Seamless Inputs

• 16 total input plugs
• 2x DVI-D up to 2048x1152@60Hz
• 4x HDMI up to 2048x1152@60Hz
• 2x Universal Analog up to 2048x1152@60Hz
• 4x 3G/HD/SD-SDI up to 2K@60Hz
• 4x HDBaseT™ (2 with PoE+ 48V 30W). Up to 2048x1152@60Hz. Support of video, embedded audio and Ethernet pass-through

2 Outputs

• Configurable either as two independent Program outputs OR as one Program output and one Preview output
• 2 plugs per output
• 2x HDMI up to 2048x1152@60Hz
• 2x HDBaseT™ up to 2048x1152@60Hz. Support of video, embedded audio, Ethernet, bidirectional RS232 and IR
• HDMI and HDBaseT™ outputs can output simultaneously

High Performance Video Processing

• True-seamless switching technology
• Real time image processing and uncompromising video quality
• Up to 3 resizable live layers on still background (Switcher mode)
• 1 resizable live layer on live/still background per output (Matrix mode)
• Custom output formats for non-standard display applications
• Advanced de-interlacing processing
• Pan & Zoom resizing up to 1000%
• Layer effects: Chroma/Luma Key, Flying, Zooming and Cropping
• Transitions: Fade, Cut, Wipe and Slide
• Border & Shadow

Independent Video Output

• Configurable as video output or program clone
• 1x 3G-SDI up to 2K@60Hz
• 4x BNC for Analog SD TV (CVBS, YPbPR) up to 625/576i

Enhanced Features

• 8 Memory Presets per output and up to 64 via RCS²
• Quick Frame mode: Instantly display a stored frame above all layers
• Mosaic Preview mode: 1 live image and 9 images refreshed as fast as possible or 10 images refreshed as fast as possible
• Internal test patterns: Select between 9 available test patterns
• EDID management on 6 inputs. Ability to read & display outputs EDIDs
• HDCP Compliant

Advanced Audio Management

• 3 modes: Breakaway, Fast Routing and Top Layer
• Delay compensation (manual up to 80ms or auto)

Audio input:
• DVI (as HDMI) / HDMI / SDI Audio de-embedded
• 4x Audio stereo Analog (Balanced/Unbalanced)
• 2x S/PDIF (AES-3id compatible)

Audio output:
• HDMI / SDI Audio embedded
• 2x Audio stereo Analog (Balanced/Unbalanced)
• 2x S/PDIF (AES-3id compatible)

Simple Setup and Advanced Control

• Full-featured and easy to use front panel with large VFD screen
• RCS²: User-friendly and intuitive graphic interface
• Controllable via a standard TCP/IP or RS-232 serial interface
• RK-350: Remote Keypad
• SB80-2: Shot Box²
• AMX/Crestron drivers

• 1 x Power supply cord
• 1 x Pair of front handles + screws
• 1 x Ethernet cross cable (for device control)
• 8 x MCO 5 pin connector
• 1 x Quick Start Guide including safety instructions

INPUTS
10 seamless inputs, 16 total input plugs
2 x DVI-D up to 2048x1152@60Hz
4 x HDMI up to 2048x1152@60Hz
2 x Universal Analog up to 2048x1152@60Hz
4 x 3G/HD/SD-SDI up to 2K@60Hz
4 x HDBaseT™ (2 with PoE+) up to 2048x1152@60Hz

OUTPUTS
2 outputs with 2 plugs per output
2 x HDMI up to 2048x1152@60Hz
2 x HDBaseT™ up to 2048x1152@60Hz
1 x 3G-SDI up to 2K@60Hz, useable as video output or program clone
4 x BNC for Analog SD TV (CVBS, YPbPR) up to 625/576i

AUDIO
5-pin MCO connectors: 4 for analog audio inputs and 2 for analog audio outputs
4 RCA connectors: 2 for S/PDIF audio inputs and 2 for S/PDIF audio outputs

Input:
DVI (as HDMI) / HDMI / SDI Audio de-embedded
4 x Audio stereo Analog (Balanced/Unbalanced)
2 x S/PDIF (AES-3id compatible)

Output:
HDMI / SDI Audio embedded
2 x Audio stereo Analog (Balanced/Unbalanced)
2 x S/PDIF (AES-3id compatible)

STANDARDS
SMPTE: ST 259:2008, ST 260:1999, ST 274:2008, ST
292-1:2012, ST 296:2012, ST 424:2012, ST 428-19:2010
VESA: GTF1.1, CVT 1.1, DMT1.0 rev.12

OPERATING MODES
Mixer mode:
Seamless switching with full preview with 1 layer
Up to 2 Layers on Live Background
Up to 3 Layers on Still Background
Matrix mode:
Seamless switching
1 Title on Live Background on each output
1 Layer on Live or Still Background on each output

CONTROL
Full-featured Front Panel
RCS2: Remote Control Software with intuitive GUI
RK-350: Remote Keypad
SB80-2: Shot Box2
AMX/Crestron drivers

OTHER FEATURES
DB9: RS232 for remote control
RJ45: Ethernet connection
