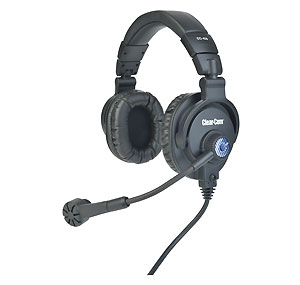

Clear-com CC-400 Double Ear Headset with Cardioid Microphone

Clear-com CC-400

Clear-com CC-400 Double-ear Standard Headset with Dynamic Microphone

Product Code: CC-400

CC-400-X4 Clear-Com CC-400 Intercom Headsets
CC-400-X5 Clear-Com CC-400 Intercom Headsets
CC-400-X6 Clear-Com CC-400 Intercom Headsets
CC-400-X7 Clear-Com CC-400 Intercom Headsets
CC-400-Y4 Clear-Com CC-400 Intercom Headsets
CC-400-Y5 Clear-Com CC-400 Intercom Headsets
CC-400-MD4 Clear-Com CC-400 Intercom Headsets
CC-400-B6 Clear-Com CC-400 Intercom Headsets















review button


Features

• High quality dynamic cardioid microphone
• High ambient-noise attenuation headphones
• Microphone: 300Hz - 20kHz frequency response
• Headphone: 40Hz - 20kHz frequency response
• Cushioned with soft leatherette padding
• Flexible gooseneck microphone positioning

A versatile high performance range of headsets designed to give excellent audio quality, comfort and ease of use to suit every need.

Clear-com CC-400 (double-ear) headsets feature high performance headphones and cardioid dynamic microphone that provide high quality audio.


Operation

The CC-400 headsets can be easily adjusted to accommodate the preference of any user. The microphone boom has a 300° rotation to allow the microphone to be worn on the left or right side of the head. Users can make the headset larger or smaller by using the slide adjusts on either side of the headband. Cushioned with super-soft leatherette padding, the headphones sit on the ear to provide a comfortable fit for users. A rotating, flexible gooseneck is included for optimal positioning.


Integrated Mute Switch Operation

The CC-400 headset microphones can be turned on and off by moving the microphone boom. To turn ON the microphone, pull the boom gently downwards (past the 10 o’clock/2 o’clock position). To turn the microphone OFF, push the boom gently upwards (above the 10 o’clock/ 2 o’clock position).


Interchangeable Cabling

The CC-400 headsets have been designed so that the cabling and connector type can be adapted quickly to the application. Users can order cables with different XLR connector choices and appropriate pin-outs. To change the connector cable in the field, simply disconnect the cable from the headset and exchange the cable with a standard Phillips screwdriver. The same process can be used to repair and replace a damaged cable
on the fly.

Headphone
Type: Closed-back
Driver: 40mm diameter, neodymium magnet,
copper-clad aluminum wire voice coil
Frequency Response: 40Hz v- 20kHz

Microphone
Element: Dynamic
Polar Pattern: Hyper-cardioid
Frequency Response: 300Hz - 20kHz

Impedance
CC-400: 200O ±30%; at 1kHz typical
Microphone: 200Ω ±30%; at 1kHz typical

Connector:

Cable: 5ft (1.55m) long with 8-pin connector at
headset end; 4-pin Female XLR

Headphone Sensitivity
CC-400: 98dB ±3dB (SPL) /1mW at 1kHz typical)

Sensitivity
Microphone Open Circuit Sensitivity: -61dB
±3.5dB (0dB=1V/1Pa, at 1kHz , typical)

Power
Maximum: 500mW

Dimensions
4.8 x 13 x 10.43in (WxHxD)
(122 x 330 x 265mm)
