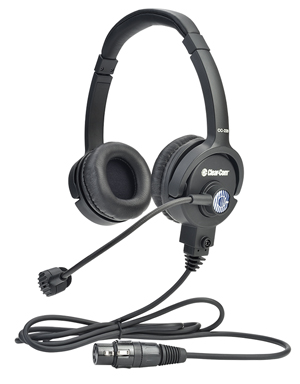

Clear-Com CC-220 Intercom Headsets
Product Code: CC220
review button
Model Number Description
CC-220-X4 Double-ear 4-pin Female XLR Clear-Com CC-220 Intercom Headsets
CC-220-X5 Double-ear 5-pin Male XLR Clear-Com CC-220 Intercom Headsets
CC-220-X6 Double-ear 6-pin Male XLR (balanced mic) Clear-Com CC-220 Intercom Headsets
CC-220-X7 Double-ear 7-pin Female XLR Clear-Com CC-220 Intercom Headsets
CC-220-Y5 Double-ear 5-pin Female XLR Clear-Com CC-220 Intercom Headsets
CC-220-B6 Double-ear no connector Clear-Com CC-220 Intercom Headsets

Features:
- Double-ear premium light-weight headset
- High quality dynamic cardioid microphone
- 20Hz -20KHz frequency response
- Choice of earpads: leatherette or foam
- Flexible gooseneck microphone positioning
- Boom rotation ON/OFF switch for quick microphone muting
- Interchangeable cabling for easy connector changing and repair
- Fully serviceable headset
- Rugged design

Specifications of CC 220
Headphone
Type: Closed-back
Driver: 36mm diameter, neodymium
magnet, copper-clad aluminum wire voice coil
Frequency Response: 20Hz v- 20kHz

Microphone
Element: Dynamic
Driver: 15mm, neodymium magnet
Polar Pattern: Cardioid
Frequency Response: 250Hz – 20kHz

Sensitivity
Open Circuit Sensitivity: -64 dB ±3.5 dB; at 1kHz, typical
99 dB ±3 dB (SPL); at 1kHz typical

Power
Maximum: 500mW
Impedance
400 ohms ±30%; at 1kHz typical

Connector
Cable: 5ft (1.55m) long with 8-pin connector at
headset end; 4-pin Female XLR

Dimensions
Packaging for CC-220:
6.7 x 8 x 3.5 in (WxHxD)
(170 x 205 x 90 mm)

Weight
6.8 oz (195g) without 8-pin cable assembly and M3*18mm SCREW
