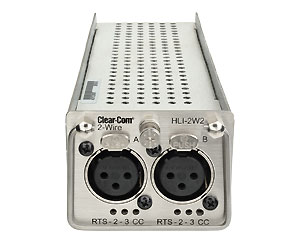

Clear-com HLI-2W2 Interface Module for HMS-4X Main
Station
Clear-com The HelixNet HLI-2W2 is a dual 2-wire
interface module for the HMS-4X** main station.
Interfacing
HLI-2W2’s 2-wire analog partyline interface are
assignable to any channel in the HelixNet system and provide connectivity to
powered Clear-Com or RTS-TW analog partyline systems. Level control and
VOX/Gate capability is provided for each interface to accommodate the
connected system.
HLI-2W2 include call signaling and remote mic kill
circuits when used with compatible Clear-Com and RTS-TW partyline devices.
Local and Central Management Options
HLI-2W2 can be added to any HMS-4X** main station
with an available option slot. Once installed, any channel can be
independently assigned to either 2-wire port locally on the HMS-4X front
panel or centrally from the Core Configuration Manager™ (CCM*).
*CCM
requires HLI-ET2
**HMS-4X is a legacy product as of 2022
Interface
• 2-wire interface for HMS-4X**
• Auto nulling
• Level and VOX control
• Clear-Com / RTS-TW Compatible
• Call and RMK signaling
The HelixNet System
• Wired Partyline - Networked
• Flexible cabling
• Up to 24 Channels – Licensed
• Program Audio user
level control
Effortless Management
• Fast
front panel control & configuration
• Easy to use CCM browser
configuration
• Plug-and-go with auto discovery
• Central upgrades
from main station
• Connectors
2-wire Partyline: (2) 3-pin XLR-F
• Partyline
Compatibility: Clear-Com, RTS-TW
configurable with Call and Remote Mic Kill
Termination: External
system
Nulling: R-L-C hybrid; user initiated Auto-Calibration
with Echo Cancellation
Power: 25mA from external system
Voltage: 20-30V DC (max)
Maximum Level Before Clipping: 6dBu
Nominal Input Level: -18dBu (CC), -12dBu (RTS-TW)
Input
Impedance: >= 10KO bridging
Route to 4-wire input at 0dBu in:
Frequency Response: 100Hz - 10kHz ±3dB
Distortion: <0.2% THD @
1kHz
Noise: <-55dBu
Route from a 4-wire output at 0dBu
out: Frequency Response: 40Hz - 10kHz ±3dB
Distortion: <0.2% THD
@ 1kHz
Noise: <-75dBu
• Dimensions
2.2 x 7.4 x 1.5in (HxWxD)
(57 x 187 x 39mm)
•
Weight
13oz (0.38kg)
• Network Specifications (Firmware Version 4.2+)
Network Protocols
Ethernet IPv4–Unicast Audio
and Control mDNS–Multicast Device Discovery
Layer 3–Routable with
mDNS function limitations
HTTP–Management RTP–Audio Transport
WavPack–Audio Codec
• Network Ports
Unicast:
Port 80 TCP–System Management
Port 6001 TCP–System Management
Port 6001 UDP–Audio Streams
Multicast:
Port 5353 UDP–mDNS, Names, Discovery
• Network
Parameters
HMS-4X Endpoint Resource Use: 1 per active port
Bandwidth: 300
(max) kbps from each active port to HMS 1200 (max) kbps from HMS to each
active port
Network Jitter Tolerance:<= 128ms jitter buffer per
audio stream receiver automatically adjusted to network performance
QoS Tags: DSCP=41, Assured Forwarding (AF)
System reserved IP
range: 10.0.0.0/8 for endpoints
