YoloLiv YoloBox Pro Live Stream Studio

Yololiv Yolobox Pro

Yololiv YoloBox Pro Live Stream Studio With Encoder, Switcher, Monitor and Recorder

Product Code: YOLOBOXMINI

Buy Sell Slae Yololiv Yolobox Pro
review

Features
• Encoder, switcher, recorder, monitor, in One
• Live switch up to 6 video sources
• No computer/desk workstation/professional crew required
• Production at your fingertip, great ease to operate
• Compact size, fit into your backpack
• Support 4G LTE & built-in battery

Yolobox Pro is the upgraded version of its previous Yolobox .YoloBox Pro is a video switcher, encoder/streamer, monitor, recorder and audio mixer all in one. With built-in re-streaming service, native support integrates directly with YouTube/Facebook/Twitch, adding graphic overlays and featuring comments to the stream, Side-By-Side, Split-View and much more.

YoloBox Pro brings the professional features and processing power required for the most demanding live broadcasts.

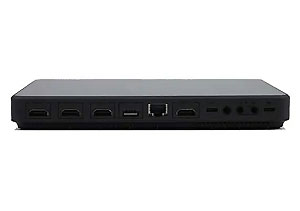

The YoloBox Pro is 8-inch large and 750g weight, featuring 3 HDMI inputs, 1 HDMI output, 1 full-featured USBC, allowing you to switch up to 8 sources, of which up to four physical local cameras. The other two pre-recorded videos, either stored on an internal memory chip or from a web source. The Pro supports input resolutions of 720p and 1080i/p, as well as streams of 540p, 720p, and 1080p60 at your choice, using the H.264 codec. With HDMI output, you can display your stream locally on an HDMI device.

The YoloBox Pro provides you with a large LCD touchscreen interface for easy streaming and control, demonstrating the streaming image as well as the input streams; the LCD display also presents the control interface, which allows you to switch sources of information with a simple touch. It also has a line-level audio input, and a separate headphone audio out. You can record your stream directly in the .mp4 format to an optional SD card, up to 128 GB in size, using the built-in SD card slot. The line-in allows you to connect with the synthesizer and mic-in can be connected to the microphone for recording.
*USB Webcam Out coming soon in a future firmware update

Touchscreen Control
The YoloBox Pro provides you with a large touchscreen interface for easy streaming and control.

Functions
The device works as a switcher, with a variety of picture-in-picture templates as well as graphic layers. It has a built-in encoder that allows for live streaming, and it can record to optional SD cards.

Overlays
You can brand your live stream by adding logos/watermarks/rolling captions
Customized PiP options, including Interview mode, allow you to bring a unique look and feel to your stream
Engage with your audience in real time via feature comment overlays
The customizable scoreboard feature displays a real-time-controlled scoreboard for professional looking results
Built-in lower-thirds templates can be edited or you can add your own
Simultaneous Streaming
YoloBox Pro will first push your feed to the YoloLIV platform, from where it automatically forwards your feed to a maximum of 3 destinations simultaneously.

Streaming Platforms
Major streaming platforms such as Facebook live, YouTube, and Twitch are directly integrated, you can simply login your social account and stream.

Internet
You can connect to the internet using the integrated RJ45 (Ethernet) port, Wi-Fi, and via cell service using an optional SIM card.

SD Card Input
Roll in pre-recorded videos for intro, countdown, B-rolls, or special segments from an SD media card.

PDF
You can load a PDF as a local source to your YoloBox Pro

Battery Life
The internal battery can power your YoloBox Pro for approximately 3 hours. The YoloBox Pro charges via the USB connection, which is used for power only.

Other Site:
Introduction to Yolobox
Comparison - OBS vs Yolobox, Yolobox Pro
Yololiv Yolobox
Yolobox Pro

Blog
Comparison between Yolobox Pro and ATEM Mini Pro
Enhanced Yolobox Pro and Instream streaming capability with Ultimate Stability
Comparing OBS Software with Yolobox Pro
Read our Yolobox Blog

- 3 x HDMI, 1 x USB In, 1 x SD card, 1 x PDF; 1 xIHDMI out; 1 x SIM card; Mic-in & Line-In;
- Live switch up to 8 sources
- Direct integration with YouTube/Facebook/RTMP(s)
- Built-in simultaneously streaming
- Stream via Ethernet, Wi-Fi, LTE 4G
- Import pictures/videos from SD card
- Add logos/watermarks/rolling captions to the stream
- Feature comment overlays to the Stream
- Add and edit customizable scoreboard, built-in lower-thirds
- Load PDF as an extra source locally
- Records internally to SD card
- Battery life up to 3 hours
Display 8-inch LCD
Brightness 400 nits
HDMI Inputs 3
HDCP Compliant Yes
USBC One for Charging, Another full-featured USBC
Audio Input Audio In & Mic In
Mixing Audio Yes
CPU Qualcomm 660
