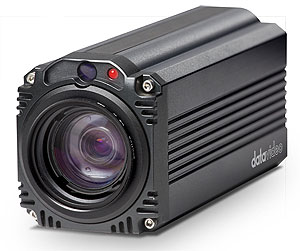

Datavideo BC-50 1080P IP Camera with Streaming Encoder

Datavideo BC-50 IP Block Camera with Stunning Full HD Resolution

1/2.8 1080P IP Camera with Streaming Encoder with Stunning Full HD resolution

1/2.7 inch CMOS sensor. 1080p Full HD resolution.

20x optical zoom, 16x digital zoom

The BC-50’s 20x optical zoom and 16x digital zoom allows you to mount it near or far and still get great, sharp shots.

3G-SDI output

3G-SDI output for use in regular workflows. Tally lights for broadcast-level applications.

Controllable by VISCA/Pelco-C/Pelco-D

The BC-50 supports VISCA/Pelco-D/Pelco-P enabling the camera to be controlled via RS-485.

Compression H.264/H.265/Motion-JPEG and IP Streaming

The BC-50 camera can provide the H.264 / H.265 / MJPEG compressed video signal, as well as the RTMP protocol for broadcasting to Facebook and YouTube via an RJ-45 connection.

Power over Ethernet

PoE means Power over Ethernet. The PoE technology allows Ethernet cables to transmit data and power simultaneously using a single network cable. The most typical PoE application is to power digital video and audio devices. The BC-50 supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT 6 cable to power your BC-50.

Seamlessly compatible with DVCloud

The BC-50 is seamlessly compatible with Data video’s DVCloud service. You can also record your production on the DVCloud platform in h.264 formats. After recording, you can directly use this recording to upload it to your favorite content platform.

Other Web:

Datavideo BC-50 IP Block Camera

Video format/Resolution	1080p 60/50/30/25 1080i 60/50 720p 60/50
Image Sensor	1/2.7" progressive scan CMOS sensor
Effective Pixels (approx.)	2.07 Mega pixels
S/N Ratio	55dB
Min. Illumination	0.05 Lux @ (F1.8, AGC ON)
Electronic Shutter	1/30 ~ 1/10000 sec
Zoom Ratio	20x Optical zoom, 16x Digital zoom
Gamma Control	Off / Normal
Iris Control	Auto / Manual
Digital Noise Reductions	2D & 3D
On-Screen Display (OSD)	English, Simplified Chinese, Traditional Chinese
White Balance	Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K_1, 6500K_2, 6500K_3
AGC / Gain Control	Auto / Manual (0 to 28 step) Max. Gain Limit (6 to 28 step)
Mirror / Flip Image	Yes
Focus Mode	Auto / Manual
Panning / Tilting Range	--
Panning / Tilting Speed	--
Preset	--
Focal Length	f=4.3 mm (WIDE) to 88.5 mm (TELE) F1.6 to F4.7
Field of View (Horizontal, Wide)	Approx. 63.7° (WIDE END) / 2.3° (TELE END)
Image Compensation	Day & Night function
Video Output	3G/HD-SDI x1
Audio Input	3.5mm Jack (Stream Output Only)
Tally LED	Dual color (Red, Green)
Lens Filter	M52.0 x 0.75 Thread with UV Protection
Control Protocol	VISCA / DVIP Protocol
Remote Control Interface	RS-485: Transmit up to 1000m
Video Compression Format	H.265, H.264, MJEPG
Audio Compression Format	AAC
Audio Bitrate	---
HD IP Interface	---
Streaming Protocols	TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc
First Stream Supported Resolution	---
Second Stream Supported Resolution	---
Video Bitrate	---
Video Bitrate Mode	---
Encoding Frame rate	---
POE	IEEE 802.3 af
F/W Update	Ethernet
IR Control	---
Camera Control Unit	---
Tripod Mount	1/4-20 UNC
Color	Dark Blue
Dimension (LxWxH)	71 x 162 x 83 mm
Weight	0.7 kg
Operating Temp. Range	0~40 °C
Power	DC 12V 8W

• 1 x BC-50 main unit
• 1 x DC 12V power adaptor
