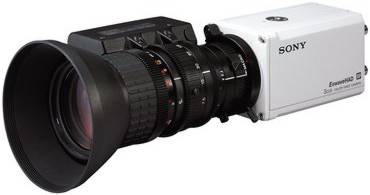

DXC990P
1/2 Type DSP 3CCD Video Camera

FEATURES


High Resolution: 850 TVL
3CCD with new 10 Bit DSP Technology
Compact size - measuring 70 X 72 X 123.5mm
Lightweight, weighing only 800g or approximately 1.7 lbs
Bayonet mount with double hot shoe lenses available
RGB, Y/C and Y/R-Y/B-Y and composite outputs


SPECIFICATION


AE Area Multi/Large/Medium/Spot/Slit/Manual
AE Detect Average/Peak selectable
AE Level Variable
AE Speed Fast/Mid/Slow selectable
ATW Area Normal/Manual
ATW Speed Slow/Mid/Fast
Baud Rate 19200/9600/4800/2400/1200 selectable
Black Balance ABB
Black Stretch Variable
CCD Integration Mode Field/Frame
Contrast Effect Manual/DynaLatitute/DCC+ selectable
Detail Frequency High/Mod/Low
Detail Level On (Variable) Off
Gamma On/Off
Knee Point High/Normal/Low selectable
Linear Matrix On/Off
Linear Matrix Mode Standard/R Enchanced/G Enhance/B Enhance/Manual Selectable
Partial Enhance All/In/Out
Pedestal Master, R/B manual adjustable
Scene File Standard/Microscope/Full Auto/Strobe/File A or B
Sensing Area 6.4 x 4.8 mm
Serial Data RS-232
Shading Compensation On/Off (Manual)
Synchronization RGB/G/OFF
Trigger On/Off
Trigger Polarity Positive edge trigger/Negative edge trigger selectable
User File A/B
White Balance AWB/ATW normal/ATW wide/Manual/3200K/5600K selectable, AWB or ATW R/B paint, manual R/G gain
Weight 630 g (1 lb. 6 oz)
Power Requirements DC 10.5 V to 15.0V
Dimensions (W x H x D) 70 x 72 x 123.5 (2 7/8 x 2 7/8 x 4 7/8)
Power Consumption Approx. 8.0W
S/N Ratio 63 dB (NTSC) / 62 dB (PAL)
Scanning System 1/2 type interlined
Sensitivity F11 (2000 lux)
Vertical Frequency 59.94 Hz
Horizontal Resolution 850 TV lines
Output Signal VBS, RGB/SYNC, Y/C, Y/R-Y/B-Y
Operating Temperature -5°C to 45°C (23°F to 113°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Connector RGB/SYNC (9pin D-sub.) DC IN/VBS (12 pin), VIDEO OUT (BNC), TRIGGER IN (BNC), REMOTE (8 pin mini DIN), GEN LOCK IN (BNC), Lens (6 pin)
Lens Mount Bayonet Mount
Minimum Illumination 1 lux (F1.4, GAIN. HYPER)
Pickup Device 1/2 Type IT Exwave HAD CCD
Gain STEP/AGC (0-24 dB) HYPER
Horizontal Frequency 15.734 kHz
Shutter Speed 0.5 - 1/100,000 s
Synchronization Internal or external with VBS, HD/VD
