Sony HSC-100R Three 2/3-inch Power HAD FX CCD Sensors Portable HD/SD Camera for Digital Triax Operation

Home > Sony > XDCAM > HSC-100R

7% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall GST Refund Centre before departure with goods within 30 Days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme's conditions and eligibility criteria can claim for the GST refund. Please visit: https://www.iras.gov.sg/IRASHome/GST/Consumers/Tourist-Refund-Scheme/ for GST Guide for Visitors on Tourist Refund Scheme.

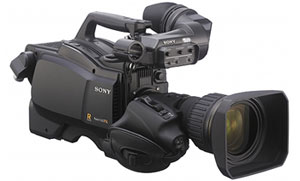

  • Sony HSC-100R Portable HD/SD Camera
    Product Code :

    Discontinued

    review button


  • Optional Accessories

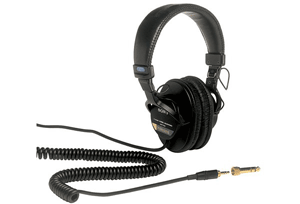

    Sony Headphone
    Sony MDR-7506

    MDR-7506

    Buy Sell Sale Sony MDR-7506

Excellent picture quality for High Definition production over digital triax
The Sony HSC-100R incorporates digital triax technology and is equipped with sophisticated 16-bit A/D conversion circuitry as well as superb three 2/3-inch CCDs to bring out a high level of picture quality over conventional digital triax infrastructures. The Sony HSC-100R Camera also has a built-in high-quality down-converter for superior SD images, as standard.

Sony HSC-100R: Features
Simple and yet versatile system configuration
The Sony HSC-100R Series camera offers flexible configuration with the highly compact 1.5 RU-size HSCU-300R and HSCU-300RF Camera Control Units, creating a standardized 19-inch rack system that is ideal for space-limited production areas. When the front panel of the HSCU-300R or HSCU-300RF is replaced with the optional CCU Front Control Panel HKCU-FP2, a simple remote control system can be configured. Many functions of the camera can be controlled by the control knobs and switches on the HKCU-FP2.

Robust design
In order to survive the stresses of professional use, the main chassis of the HSC Series is made of a magnesium-alloy casting. This rigid body makes the camera highly durable and helps to protect its lightweight precision components such as the integrated optical and electronics.

Position-adjustable shoulder pad
The position of the shoulder pad can be adjusted - either forwards or backwards - to provide users with the optimum weight balance. This is particularly useful when the camera is docked with any type of lens or camera adaptor. In addition, no tool is required for this adjustment.

Two types of Focus Assist functions
Viewfinder Detail: adds dedicated image-enhancing edge signals directly to the viewfinder for a camera operator to recognize a focusing point.
Focus Assist Indicator: displays an indicator for adjustment at the bottom or other position of the viewfinder frame. It's beneficial especially when shooting by wide-viewing angle.

Optimized handle shape for stable shooting
The Sony HSC-100Rdesigned carrying handle enhances the camera's operability. A protrusion positioned on the front of the handle enables users to hold the camera with added stability while shooting. In addition, the non-slip structure of its lower surface helps users to grasp the handle firmly.

Function-assignable switches
The Sony HSC-100R Series camera has dedicated 'assignable switches' available for frequently used functions. Located on both the side and rear panels, these switches allow functions such as electronic colour-temperature conversion to be assigned as required. Buttons on the handle are also available as function-assignable switches. All of these switches greatly enhance the camera's operational convenience.

HD to SD down-converter
The Sony HSC-100R camera is equipped with a built-in high-quality down-converter for superior SD images, as standard.

HyperGamma
Hyper Gamma is a set of new transfer functions designed to provide powerful contrast handling by making maximum use of the capacity and wide dynamic range of the CCD sensor. These functions are quickly accessed via the set-up menu, and camera operators can select one curve from a choice of four that best suits their needs and conditions. For example, they can select to enhance natural reproduction in low-key areas to achieve greater flexibility in wide dynamic scenes.

Multi-matrix function
The multi-matrix function of the HSC Series cameras allows colour adjustments to be applied over the colour range specified by the operator. The colour spectrum is divided into 16 areas of adjustment, where the hue and/or saturation of each area can be modified. This function is especially useful when only the hue of certain colours needs to be adjusted for special-effects work. Multi-matrix is extremely effective for capturing images with similar colour tone in a system configured with existing SD cameras or other models of camera. This function enables the picture from another model of camera to be easily matched.

Adaptive-matrix function
Sony HSC-100R enables ideal colour conversion for shooting even under excessively strong ambient lighting conditions such as live shooting under bright monochromatic blue light. These conditions would typically cause a conventional matrix function to exceed the colour conversion range.

Master White Gain function
The Master White Gain function of the HSC Series of cameras enables step-less adjustment of gain levels. This makes it possible to adjust the gain level more precisely compared to conventional stepwise adjustment.

Specification
Camera Specifications:
Pickup device 3-chip 2/3-inch type CCD
Effective picture elements (H x V) 1920 x 1080
Signal format 1080/50i, 59.94i, 720/50p, 59.94p, 1080/25PsF*1, 29.97PsF*1
Spectrum systemt F1.4 prism system
Lens mount Sony bayonet mount
Built-in filters CC Electrical
ND 1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
Sensitivity
(at 2000 lx, 3200 K, 89.9% reflectance)
F10 (59.94 Hz) / F11 (50 Hz) at 2000 lx (3200 K, 89.9% reflectance)

Signal-to-noise ratio (typical) HD : -60 dB (1080i)z
Horizontal resolution HD : 1,000 TV lines
SD : 900 TV lines
Shutter speed selection 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 (s) (59.94i mode)
1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 (s) (50i mode)
Modulation depth HD : 45% at 27.5 MHz (1080i)
SD : 90% at 5 MHz
General Specifications:
Power Requirements DC 180 V, 1.0 A (max.), DC 12 V, 7 A (max.)
Operating temperature -20°C to +45°C (-4°F to +113°F)
Storage temperature -20°C to +45°C (-4°F to +113°F)
Mass 4.5 kg (9 lb 15 oz)
Input/Output Connectors Specifications:
Audio input (CH1, CH2) XLR 3-pin, female (x1 each)
For MIC: -60 dBu (may be selected to -20 dBu by menu or HSCU operations), balanced
For LINE: 0 dBu, balanced
Mic 1 input XLR 3-pin, female (x1)
Return control input 6-pin (x1)
Prompter output/Genlock input/Return input BNC (x1), 1 Vp-p, 75 Ω
DC input XLR 4-pin (x1), DC 10.5 V to 17 V
DC output 4-pin (x1), DC 10.5 V to 17 V, 0.5 A (max.), 2-pin (x1), DC 10.5 V to 17 V, 2.5 A (max.)
Test output BNC (x1)
SDI output BNC (x1)
Earphone output Stereo mini jack (x1)
CCU Triax (x1)
Tracker 10-pin (x1)
Intercom XLR 5-pin, female (x1)
Remote 8-pin (1)
Lens 12-pin (x1)
Viewfinder 20-pin (x1)


 Supplied Accessories

- Operating instruction (1)
- Cable clamp belt (1)
- Warranty booklet (1)
