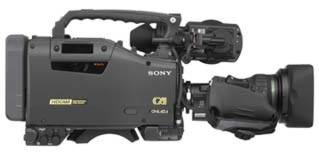

General
-
Mass : Approx. 8 kg
(17 lb. 0 oz) with typical ENG lens, cassette and BP-L60A
Battery
-
Power requirement : DC
12 V (+5.0 V/-1.0 V)
-
Power consumption : 42
W (With 12 V power supply, REC mode, with
HDVF-20A)
-
Operating temperature
: 0 ¡C to +40 ¡C (+32 ¡F to +104
¡F)
-
Storage temperature :
-20 ¡C to +60 ¡C (-4 ¡F to +140
¡F)
-
Operating humidity :
25 % to 80 % (Relative humidity)
-
Continuous operating
time : Approx. 80 min (With BP-L60A)
Inputs/outputs
-
Genlock
video input : BNC, 1.0 Vp-p 75 ½
-
Time code
input : BNC, 0.5 V to 18 Vp-p, 10 k½
-
Audio
CH1/CH2 input : XLR-3-pin type (Female), -60 dBu/+4 dBu selectable,
high impedance, balanced
-
MIC input
: XLR-3-pin type (Female), -60 dBu
-
Monitor
output : BNC (x3, Y/PB/PR), 1.0 Vp-p, 75 ½,
unbalanced
-
Audio
output : XLR-5-pin type (Male), 0 dBm
-
Time code
output : BNC, 1.0 Vp-p, 75 ½
-
Earphone
: Mini-jack, 8 ½, - ° to Ð18 dBs
variable
-
DC input
: XLR-4-pin type (Male), 11 to 17 V DC
-
DC output
: 11 to 17 V DC, Max. 100 mA
-
Lens :
12-pin
-
Remote :
8-pin
VTR section
-
Recording
format : HDCAM
-
Tape
speed : Approx. 77.4 mm/s (24P mode)
-
Playback/Recording time : Max. 50 min with BCT-40HD (24P
mode)
-
Fast
forward/rewind time : Approx. 6 min with
BCT-40HD
-
Recommended tape : Sony BCT-40HD/22HD
-
Sampling
frequency : Y: 74.25 MHz, PB/PR: 37.125 MHz
-
Quantization : 10 bit/sample of input-output signals (8 bit
sample for internal compression process)
-
Error
correction : Reed-Solomon code
-
Error
concealment : Adaptive three dimensional
Audio performance (Playback with standard
HDW-F500)
-
Dynamic
range : More than 85 dB (Emphasis ON)
-
Distortion : 0.08 % Max.
-
Cross
talk : -70 dB
-
Wow &
flutter : Below measurable limit
-
Frequency
response : 20 Hz to 20 kHz, +0.5 dB/-1.0 dB
Viewfinder
-
CRT : 2.0-type
monochrome
-
Controls : Brightness control, Contrast control, Peaking
control, Tally switch, Zebra Pattern switch, Display/Aspect
switch
-
Horizontal resolution : 500 TV Line (At
center)
-
Microphone : Ultra-directional
(Detachable)
|
Camera
section
-
Pickup device : 3-chip 2/3-type FIT type
CCD
-
Picture elements : 2,200,000
pixels
-
Optical system : F1.4 prism
system
-
Built-in filters : A: Cross B: 3200 K C: 4300 K D: 6300 K,
1: Clear 2: 1/4 ND 3: 1/16 ND 4: 1/64
ND
-
Shutter speed (1080/60i mode) : 1/100, 1/125, 1/250,
1/500, 1/1000, 1/2000 (sec)
-
Clear scan : (ECS) 24 to 7000 Hz (Minimum setting depends
on frame rate selected)
-
Lens mount : Special bayonet
mount
-
Sensitivity : f10.0 at 2000 lux, 89.9 % reflective, At 24
fps, with a 1/48-second shutter speed (equivalent to a 180¼
film camera shutter setting),
-
the exposure index is approximately equivalent to 300
ISO.
Supplied
Accessories
-
HDVF-20A, HD Electric Viewfinder
(1)
-
Microphone, Super cardioid directional,
external power supply type (1)
-
VCT-14, Tripod Adapter
(1)
-
Shoulder strap (1)
-
Rain cover (1)
-
Operation manual (1)
-
Maintenance manual
(1)
Optional Accessories
-
HDCA-901, HD-SDI
adapter
-
HDVF-C750W, HD LCD Color
Viewfinder
-
BP-L60A/L90A, Lithium-ion
battery
-
BC-L100/L100CE, Battery
charger
-
AC-550/550CE, AC
adapter
-
BCT-40HD/22HD, HDCAM tape
cassette
-
BKW-401, Viewfinder rotation
bracket
-
RM-B150, Remote control
unit
-
C-74, Microphone
-
LC-HD7, Carrying
case
-
Part No. 1-547-341-11, Fog-proof
filter
-
Part No. 3-174-685-01, 1/8 ND
filter
-
Part No. 3-174-683-01, 1/32 ND
filter
-
Part No. 3-174-682-01, Cross
filter
-
Part No. 3-186-442-01, Mounting
ring
-
Part No. A-8314-798-A, Viewfinder eyepiece
(High performance x3, with soft cushion)
-
Part No. A-8262-537-A, Viewfinder eyepiece
(High magnification)
-
Part No. A-8262-538-A, Viewfinder eyepiece
(Low magnification)
-
Part No. A-8267-737-A, Viewfinder eyepiece
(Standard magnification with special compensation for
aberrations)
|
