This ENG microphone kit is
configured to include the mic and accessories necessary for
electronic news gathering and electronic field production.
The ENG/EFP kit contains a d:screet™ SC4071 Miniature
Microphone with DPA reinforced cable relief (pre-equalized for
speech clarity) and various accessories.
The SC4071 features a
specially designed, fixed microphone grid with a soft presence
boost of typically 5 dB at 4 to 6 kHz. Speech intelligibility,
clarity and definition of voices and instruments lie within the
area that the SC4071 grid boosts.
Included is also an XLR adaptor with midrange attenuation
(DAD6024), which is the final tonal adjustment needed for going
directly on air or to tape without editing. A combination of SC4071
and DAD6024 makes voices more distinguishable and improves speech
intelligibility and definition.

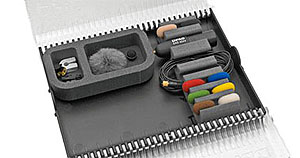

The ENG mic kit is delivered in a sturdy, hard case with a
transparent lid.
Applications
Typical applications are ENG/EFP use on the reporter in studio or
in the field, or film production use, with hidden microphone
placements on the actors.
Wireless ENG microphone
A wide range of connection adapters makes it possible to use DPA
miniature microphones with all professional UHF, VHF or digital
wireless system available plus 48 V Phantom.
DPA has specific adapters for AKG, Audio Ltd., Audio-Technica,
Beyerdynamic, Electro-Voice, Lectrosonics, Micron, Mipro, Pastega,
Telex ProStar, Ramsa, Samson, Sennheiser, Shure, Sony, Toa, Vega
and other systems. Each adapter for your cordless microphone is
guaranteed to perfectly mate to your system of choice.
|
• 1 x
SC4071 Omnidirectional Mic, Presence Boost
• 1 x DAD6024 Adapter
• 1 x DMM0002-B Miniature Holder, Double Pin
• 1 x DMM0017-B Miniature Mic Holder
• 1 x DUA0570 Foam Windscreens, Color Mix
• 1 x DUA0571 Windjammer for 4071, Grey Fur
• 1 x DUA0572 Miniature Mesh for 4071
|
| Directional
characteristics: |
Omnidirectional |
|
Principle of operation: |
Pressure |
|
Cartridge type: |
Pre-polarized condenser element vertical
diaphragm |
|
Frequency range, ± 2
dB: |
100 Hz - 15 kHz with 5 dB soft boost at 4-6
kHz |
|
Sensitivity, nominal, ±3
dB: |
6
mV/Pa; -44.4 dB re. 1 V/Pa |
|
Equivalent noise level
A-weighted: |
Typ. 26 dB(A) re. 20 µPa (max. 28
dB(A)) |
|
Equiv. noise level ITU-R
BS.468-4: |
Typ. 38 dB (max. 40 dB) |
|
S/N ratio, re. 1 kHz at 1 Pa (94 dB
SPL): |
Typ. 68 dB(A) |
|
Total harmonic distortion
(THD): |
< 1 % up to 123 dB SPL peak, < 1 % up to 120 dB
SPL sine |
|
Dynamic range: |
Typ. 97 dB |
|
Max. SPL, peak before
clipping: |
144 dB |
|
Output impedance: |
30-40 Ohm |
|
Cable drive capability: |
Up to 300 m (984 ft) |
|
Power supply: |
For wireless systems: Min. 5 V – max. 50 V
through DPA adapter; with DAD6001: 48 V phantom power ±4
V. |
|
Connector: |
MicroDot |
|
Color: |
Black |
|
Weight: |
9
g incl. cable and MicroDot connector |
|
Capsule diameter: |
5.4 mm |
|
Microphone length: |
17 mm |
|
Cable color: |
Black |
|
Cable length: |
1.8 m (6 ft) |
|
| |
|
|
