 ABonAir AB-305 Professional Wireless HD Camera Link

View AB3xxHD Selection Table

ABonAir AB305        ABonAir AB305
    RECEIVER                         TRANSMITTER
Product Code: AB305
Buy Sell Sales ABonAir AB305
review button

Applications:
• Electronic News Gathering (ENG)
• Sport events
• Reality shows
• Studio/director monitor
• Portable AV applications
• Defense and homeland security


Key Features:
• Full SD/HD support- 1080p, 1080i, 720p, NTSC, PAL
• H.264 Encoding / Decoding
• Low Delay
• SD/HD-SDI inputs
• Unlicensed frequencies (5Ghz, 2.4Ghz)
• Low power consumption (10W)
• Range up to 500 meters


Overview:

ABonAir’s AB305TM wireless video link is a revolutionary design of the ABonAir technology that was created to cut system cost dramatically while maintaining all the famous high-end performance of ABonAir products.

The AB305 brings all the performance and features of the high-end quality products of ABonAir in a low cost package to enable budgeted production teams to benefit from robust reliable wireless video systems.

AB305
TM is a wireless video system enabling camera teams to send video content directly from a camera to a news van or director-monitor and over the air, without complex and time-consuming cable setting.

The AB305
TM supports HD and SD in all resolutions and frame rates, with low delay mode of only 90msec.
The system allows video transmission of up to 500 meter in range, while consuming only 10W of power. All these features are delivered in a small, lightweight and compact form factor that is easily attached to any camera.

ABonAir’s unique algorithms achieve unmatched picture quality, stability and range.
Built on ABonAir’s video streaming technology with its continuous bitrate adaptation mechanism, Re-Transmit algorithm and a set of unique enhancement algorithms (including: dynamic/adaptive transrating, buffer management, variable CBR©, Flexrate©, Superframe) the AB305
TM is the best solution available today.

ABonAir professional wireless HD links utilize the new H.264 Codec technology that enables 2X compression over MPEG-2 while maintaining the same picture quality.
This immediately translates to longer distance and higher picture quality PSNR.
AB305
TM utilizes OFDM radio that assures robust and reliable radio link under the most difficult conditions.

ABonAir’s systems have the lowest power consumption in the industry, achieving more battery air time than any other system.



Features of AB 305

· Full SD/HD
The system supports all the resolutions: 1080p, 1080i, 720p, NTSC, PAL at all frame rates 60fps, 59.94, 50, 30, 29.97, 25 and 24.

·Unlicensed frequencies
(5Ghz, 2.4Ghz)  ABonAir products utilize the unlicensed frequencies allocated world wide for public use, this enable any camera crew to operate their system anywhere world wide without the need to buy specially allocated frequencies at high costs.


·Low Delay mode
This mode enables the user to reduce the overall system delay to 90msec when needed by the use case. In cases where low delay is not needed, operator can select Normal mode to increase range and picture quality.

·Automatic set up
The system is fully automatic and set the operation parameters for the users automatically, based on the field conditions. This releases the cameraman to do his main task of shooting and avoid spending time on difficult system configuration. Among the automatically configured parameters are RF channel, Encoding bit rate, OFDM modulation mode, Forward Error Correction ratio and others.

·Antennas options - Distance up to 500 meters
ABonAir offers a wide selection of Antennas, either Omni, Sector or Directional that enable user to reach far up to 0.5Km and beyond for special filming scenarios.

·Audio
Audio can be embedded in the HD-SDI video stream directly from the camera.

·Low power consumption (10 W)
With low power consumption of only 10W users can operate the system for few hours with a regular camera battery.

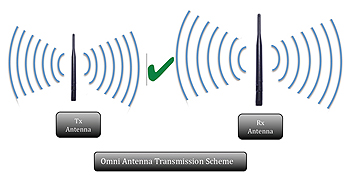

 Communication between AB305 Transmitter and Receiver:

ABonAir AB305

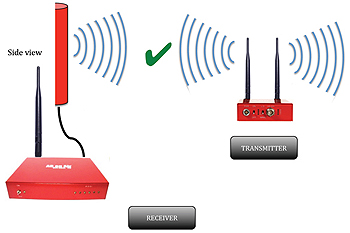

 Sector Antenna Side View Diagram:

ABonAir AB305


 Technology:

Full Duplex Radio
Both the Transmitter and the Receiver can send/received control information to each other, this enable acknowledgment on each pixel transmitter over the air hence assure 0 errors. Full Duplex also enables automatic system configuration based on changing environment condition to ensure robust link performance.

H.264 CODEC
Utilising the advanced H.264 Encoding assure the for best picture quality possible in the current environment at all time.  The H/264 Encoder is 2X-3X better then MPEG-2 and thus enable higher picture quality over the same radio conditions.

OFDM Radio
ABonAir system utilizes the robust OFDM radio that assure radio coverage even in the most difficult scenarios. Frequency hopping.


Re-transmit Algorithm
Re-transmit algorithm increase channel capacity by almost 2X in the same radio conditions.
- FEC uses redundancy of 50%-100% and sometimes even more.

- Typical BER in OFDM systems is 1%
- Not Knowing where and when the 1% errors are forces FEC on all the data.


ABonAir’s Solution:
-Full-Duplex Data System with packet acknowledgement mechanism to identify errors and fix them quickly, before frame is present
• forward error correction (FEC) or channel coding is a technique used for controlling errors in data transmission over unreliable or noisy communication channels
• With Re-Transmit algorithm we get 98% more throughput over FEC system in same   conditions à Picture quality is much better!


ariable-CBR Algorithm
Wireless link throughput is not consistent and is affected by distance, movement of Tx/Rx, external interferences, environmental conditions (concrete, rain, forest), etc.ABonAir’s Solution:
An algorithm continuously adapts the encoder parameters based on wireless link quality to fit wireless throughput.
Result à Video SNR is much better
Adaptive bitrate Algorithm:


Buffer management Algorithm
• Both Tx and Rx store slices of frame
• Buffer status indicates overall system performance, link stability, wireless conditions etc.  mart management of Buffers, and adaptation of Modem & CODEC parameters based on Buffer status will assure quality video streaming Result à avoiding overflow/underflow of frames in buffer, resulting in improved video quality (Minimize Skip/Repeat).


Additional algorithms Algorithm
• Flexrate© Algorithm – continuously changes modem parameters based on PER   and other system indicators for best net throughput. • Time Stamp and Jitter Attenuation
• Superframe – specifically designed MAC layer for Video/Audio over wireless PHY. • TrueVideoQOS
• Dynamic/Adaptive Transrating Embedded security AES128All transmitted data is encrypted by AES 128 to assure maximum privacy and exclusivity
of the transmitted content.



Specifications:

Performance:
Distance: Up to 500 meter

Low Delay mode: 90 msec

Encryption: AES 128 Bit

Antenna Diversity Selection:  Automatic

Received Signal Indication: 4 LED Display

Radio:
Modulation:  OFDM
BPSK, QPSK, 16QAM, 64QAM

FEC: 1/2, 2/3, 3/4, 5/6, 7/8
Frequency Range: 2Ghz Band - 2.4 - 2.483 GHz
5Ghz Band - 4.9 - 5.875 Ghz

RF Output Power: Preset: 50 mW to 350 mW

Antenna Connector: RP-SMA

Video:
Video Formats: 1080p, 1080i, 720p, NTSC, PAL
(59.94Hz, 60Hz, 50Hz, 30Hz, 25Hz, 24Hz, 23.97Hz)

Frame Size: HD - 1920 x 1080, 1280 x 720
SD - 720 x 576, 720 x 480

Codec: H.264

GOP Size/Types: I Frame only / IP

Connector: SD/HD-SDI

Audio:
Channels:  Embedded SDI

Analog Range: -60 dBm to +18 dBm

Sampling Rate: Embedded SDI at 48 kHz

Crosstalk: Better than 60 dB

Power:
Input Voltage Range:

10 to 14 Volts DC
Under/Over voltage protection

Power Consumption: 10 Watts

Mechanical:
Size: 16 x 8.5 x 3.5 cm

Weight: 0.3 Kg (0.7lbs)

Environmental Operating Range: -10°C to +45°C

Humidity: 95%

Tx Form Factor: Camera mount
