CANON BU-51H Remote
Control Pan-Tilt System
|
|
BU-51H (For Indoor use)
The BU-51H is a highly versatile turnkey HD Pan-Tilt-Zoom camera system intended to address a wide range of indoor applications. It features a pan-tilt head, a built-in 20X zoom
lens, and a 3 CCD HD video camera all housed in an elegant design. The system offers extensive control of the pan-tilt head, lens functions, and key camera CCU adjustments.
The system was specifi cally designed to achieve an excellent HD cost-performance optimization.
|
Product Code:BU-51H
|
| Main Features |
·
HIGH QUALITY HDTV/SDTV VIDEO IMAGES
The BU-51H has a 1/3 inch 3CCD HD camera with 1,670,000 pixels per CCD. It offers exceptional video quality for broadcasting, event
coverage and high quality surveillance, among others.
· NON-PROPRIETARY PROTOCOL

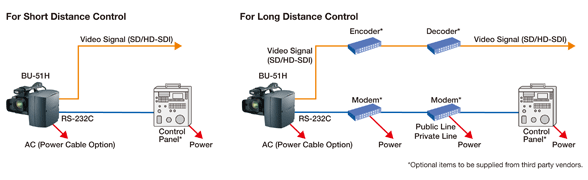

As the control protocol is non-proprietary and open to the public, a user or system integrator can provide their own control system or contract with a third party provider.
·
HIGH OPTICAL PERFORMANCE AND IMAGE STABILIZATION
The 3 CCD HD camera combines a 20X Optical Zoom HD lens (4.5-90mm, 9-180mm with 2X Digital Extender) with Auto Focus and Image
Stabilization, providing exceptional HD video images with enhanced operational fl exibilities.
· VARIETY OF OUTPUTS
The camera outputs an uncompressed HD-SDI (or SD-SDI) signal. The HD-SDI signal and an SD Composite signal (NTSC or PAL)* can be
output simultaneously. The SD signal can be used for monitoring. In addition, the BU-51H features GENLOCK for video synchronization.
* Please request NTSC or PAL format at time of purchase
· NIGHT MODE
The BU-51H now includes a newly designed "night mode". The shutter speed is slowed down to a minimum of 1/4(60i,30F) or
1/3(50i,25F,24F) allowing frame accumulation that elevates camera sensitivity.
· EXTREMELY QUIET
The BU-51H is an extremely quiet Pan-Tilt system featuring a maximum noise level of NC30. Thus it is well suited for operation
in a very quiet environment such as a conference, lecture, or a classical concert.
· BUILT-IN MICROPHONE
The BU-51H has a convenient, built-in microphone with adjustable settings.
· POSITIONAL INFORMATION
The BU-51H provides PAN/TILT/ZOOM/FOCUS position information.
|
|
General Specifications
|
| Pan Tilt Section |
Operation condition |
Indoor |
| Operational angle |
Panning:300°, Tilting:+40°~-40° |
| Operating speed |
Panning:0.3~30°/s, Tilting 0.3~30°/s |
| Repeatability |
Within ±10' |
| Connector Receptacle |
AC Inlet, Control (RS-232C), AUX out (includes position information) |
| Video output |
HD-SDI, HD analog component, SD composite |
| GEN LOCK input |
BNC 1line (Tri-level/BB) |
| Operating temperature |
Ambient 0~40°C/ ~90% (Without being dew condensation) |
| Noise |
NC30 below (when operated in 25/s) |
| Power source |
AC100~240V 50/60Hz 60W |
| Size |
305(W) x 275(H) x 350(D) mm |
| Mass |
Approx. 11kg |
| Camera & lens |
Pick-Up device |
1/3" HD 3CCD, total of approx. 1.67mega pixels per CCD |
| Range of Focal Length |
4.5~90mm(9~180mm w/2x) F1.6~3.5 (2/3"conversion: 8.25~165mm, 16.5~330mm w/2x) |
| Zoom ratio |
20x Optical zoom (2x digital extender) |
| Focusing system |
AUTO, Manual |
| IRIS |
AUTO, Manual |
| Frame rate and Shutter speed |
BU-51H 1A |
Frame Rate: 60i Shutter Speed:1/4, 1/15, 1/60, 1/100, 1/1000 |
| BU-51H 2A |
Frame Rate: 50i Shutter Speed:1/3, 1/12, 1/50, 1/100, 1/1000 |
| Gain |
AUTO, 0dB, 6dB, 12dB, 18dB, 36dB |
| White balance |
AUTO, Set |
| Picture quality adjustment |
Master pedestal, R-gain, B-gain, G-gain, color tone, color gain, knee, ganma, sharpness, set up level, color matrix, black, horizontal detail frequency |
| GEN LOCK Phase adjustment |
Adjustment range approx. ±0.4H |
| Image Stabilizer |
Optical Shift method |
| Shooting Mode |
AUTO, Manual, Night |
|
|
