CANON XU-80 Remote Control Pan-Tilt System
|
|
XU-80 (For Outdoor use)
As the worldwide transition to HD imaging continues to
accelerate, many video content creators—including broadcasters, cable networks, Houses of Worship, and diverse businesses—are seeking cost-effective, turnkey,
remotely-controllable Pan-Tilt-Zoom HD camera systems to provide unique visual perspectives while ensuring high image quality of the production.
To meet these disparate needs, Canon has harnessed multiple advanced technologies and its experience in HD optics and robotics to produce a more cost-effective, integrated HD PTZ Camera System
offering exceptional picture quality. The XU-80 is a versatile indoor/outdoor single-CMOS camera system, featuring a high waterproof and dustproof design which, when combined with its compact size, makes it ideal for:
- Outdoor Event Broadcasting
- Weather POV
- Traffic POV
- Outdoor Monitoring
- Indoor Event Broadcasting
- House of Worship
- Education
- Video Conference
Building on the success of the BU-51H (Indoor) and BU-46H (Outdoor) HD PTZ Camera Systems for higher-end applications, the XU-80 is optimized for both environments while providing economies of scale,
and incorporating the same control protocol as its sibling products, offering " exible systemization options within a given location.
|
Product Code: XU-80
|
| Main Features |
·
High Quality HDTV/SDTV Video Images
The XU-80 has a single 1/3-inch CMOS imaging sensor with 2.1 Megapixels. Utilizing a Canon 20x HD Zoom Lens, it captures
exceptional, high-quality images in full-HDTV format. Dynamic Range Compensation allows for shooting in environments with a high contrast of light and shade (such as a building lobby on a sunny
day) by automatically correcting the contrast of the video according to the range of scene illumination.
·
Optimized Design for Broadcast Applications
The XU-80 incorporates high operability optimized for broadcast applications. By pressing a single pre-set button on operation
panel (provided optionally), the camera head pans and tilts very smoothly while simultaneously zooming, allowing for on-air movements similar to manually-operated cameras. Also, the XU-80
utilizes HD-SDI output, the standard in the broadcast market, which enables it to acquire beautiful, important images from a distance of up to 100m.
·
Waterproof and Dustproof for Indoor / Outdoor Applications
With a waterproof and dustproof design featuring an IP55 enclosure rating, the XU-80 can be installed in challenging locations and is
not affected by environmental conditions. The model with servo ND filter and wiper unit is also available as XU-80W for outdoor applications. Optionally XU-80W can be equipped with washer.
·
Fast, Quiet, and Precise Pan & Tilt Movements
The XU-80 is an exceptional PTZ camera which combines smooth, fast, and highly precise movement. In Normal Mode, operational movement
has a noise rating of NC<30, making it extremely suitable for quiet indoor environments. In High Speed Mode, the movements of the pan-tilt mechanism are accelerated by 50%, which is valuable in
circumstances where higher speed is required.
·
Upright/Inverted Mounting Option
The XU-80 can be mounted upright or inverted (ceiling mount). In either position, the picture image will automatically " ip when the
tilt angle reaches 90°.
·
Compact Size and Weight
The XU-80 includes a handle for convenient portability, and weighs only 14.5 lbs/6.6 kg, making setup almost effortless.
·

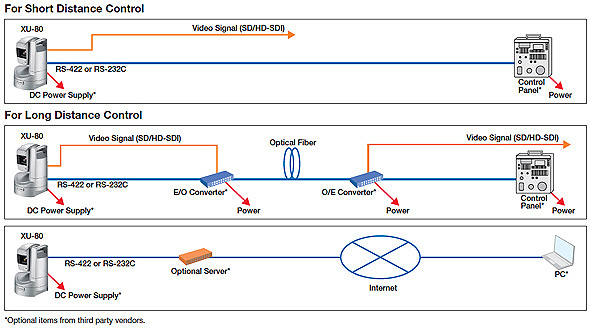

Locally Switchable Output/Control
Users have the ability to select either the 1080i or 720p HD output to match their existing systems. Additionally, control can be
toggled between RS-232 and RS-422, making the XU-80 extremely adaptable to new and existing multi-camera environments.
·
Low-light Capability/Night Mode
When shooting under low-light conditions, the XU-80 can acquire extra brightness by using the slow-shutter function (frame
accumulation). The black & white mode without the IR cut filter will also support shooting in near-darkness.
|
|
General Specifications
|
| Pan Tilt Section |
Operation condition |
Indoors/Outdoors |
| Operational angle |
Pan : ±180° Tilt : +220°~-40° |
| Operating speed |
Pan/Tilt : 0.3~40°/sec(normal speed mode)
Pan/Tilt : 0.3~60°/sec(high speed mode) |
| Preset Position |
128 |
| Stationary accuracy |
±10'below |
| Video output |
HD : BNC(HD-SDI), SD : BNC(Composite Monitor) |
| GEN LOCK input |
BNC(BB Sync/HD3value Sync) |
| Picture Flip Function |
Flip : ON/OFF |
| Control Interface |
D-sub9(RS-232)×1, 6pin(RS-422) ×1 |
| Operating temperature |
Ambient -15~40°C / ~90%(non-condensing) |
| Control Protocol |
NU Protocol |
| Communication Speed |
9,600bps |
| Microphone |
Waterproof Microphone:
lower part of the camera/0dBm/600Ω unbalanced output(with limiter) |
| Noise |
NC30(40°/s), NC45(60°/s)
(when Wiper, ND Filter, and IRC Filter are not in operation) |
| Power source |
DC12V±10% |
| Power Consumption |
20W |
| HD-SDI Format |
1080/59.94i/1080/50i/720/59.94p/720/50p |
| SD Format |
NTSC/PAL(linked with the HD-SDI output) |
| Waterproof/Dustproof Rating |
IP55 |
| Wind Velocity-Resistance |
Normal Operation : ~15m/s
Operation Possible : ~30m/s
Non Destruction : ~60m/s |
| Models |
XU-80 / XU-80 W *
(*XU-80 W is the model with servo ND filter and wiper) |
| Optional Outdoor Installation |
Washer |
| Size (Include Camera & Lens) |
7×311×217[mm](without projection) |
| Mass
(Include Camera & Lens) |
6.6kg(without optional ND Filter and Wiper) |
| Camera & lens |
Image Sensor |
1/3CMOS |
| Focal Length / F-No. |
f=4.7-94mm / F1.6-3.5 |
| Minimum Object Distance |
1m(at Tele End) |
| Angle of View |
W59.4°-T3.0°(1920×1080) |
| Zoom Ratio |
20x |
| Digital Zoom |
12x |
| Focusing System |
AUTO/MANUAL/INF |
| Shutter Speed |
2sec~1/10,000sec |
| Gain |
AUTO/MANU(0~+32dB) |
| White Balance |
AUTO/OUTDOOR/INDOOR/MANU/ATW |
| ND Filter |
OFF/1/32 |
| Mounting Options |
Upright/Inverted |
| AE Control |
AUTO/MANU/NIGHT/Shutter priority/Aperture priority |
| ICR |
ON/OFF |
|
|
