Roland V-1SDI 3G-SDI Video Switcher Support for SDI and HDMI cameras

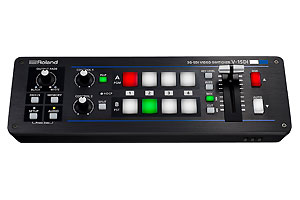

Roland V-1SDI 3G-SDI Video Switcher

Roland V-1SDI 3G-SDI Video Switcher Supports up to Full HD 1080p

Product Code: V-1SDI
Roaldn V-1SDi

review button

Features
• Easy to operate with hardware controls
• Compact size
• Supports up to Full HD 1080p
• 3 x 3G-SDI and 2 x HDMI*1 inputs
• 2 x 3G-SDI and 1 x HDMI*1 output

Roland V-1SDI Professional SDI Video Switcher

Roland V-1SDI is a flexible and versatile video switcher that makes it easy to connect and switch professional 3G SDI cameras and playback sources along with HDMI sources including cameras, smart phones, computers, tablets, Blu-ray players.

Compact and portable, the Roland V-1SDI delivers professional switching results with its easy to use hardware interface complete with T-Fader and easy-to-see backlit buttons.

With support for 3G-SDI, the Roland V-1SDI can operate at full 1080p resolution and can take advantage of the longer cable distance of SDI making this compact solution suitable for events and applications in even large spaces with the most professional level of SDI camera sources.


Inputs

The Roland V-1SDI has two dedicated 3G SDI inputs, a third channel input that supports 3G SDI or HDMI and a fourth channel HDMI input that also includes scaling.

This makes the Roland V-1SDI ideal in a variety of configurations for both an all camera applications and applications that mix cameras, video sources and computer data sources.

Inputs 1 to 3 of the V-1SDI support 1080p/1080i/720p video resolutions with Input 4’s scaler supporting a wider range of video and VESA resolutions. Both progressive and interlace signals can be input allowing for both 1080i and 1080p signals to be used at the same time. HDCP is supported* for input of copy protected content from devices such as Blu-ray disc players.


Outputs

The Roland V-1SDI has two 3G SDI Outputs and one HDMI output. SDI PVW and MULTI-VIEW outputs are assignable from Program, Multi-view Preview or Full Frame Preview for flexibility in different applications where output display devices support either SDI or HDMI inputs.


Quad Input Multi-viewer

The four-way multi-view preview screen shows all four input sources on a single display for confident monitoring. A red border shows the video currently being output and a green one indicates the video to be output next. It also includes audio metering for all input sources and the main output.


Composition Effects

The Roland V-1SDI includes DSK (Downstream Keying), Picture-in-Picture (PinP), Split and Quad composting effects ideal for creating news style broadcasts and corporate presentation content.

The DSK function is great for overlaying titles, song lyrics or logos onto incoming video sources that can be switched in the background while text or images remain displayed. The DSK supports both Luminance Keying (Black / White) and Chroma Keying (Blue / Green).


Remote Control

Remote control is possible with the Roland V-1SDI RCS dedicated computer software for Mac and PC connected via a USB cable. The application offers a detailed view of the connected V-1SDI and can be used to switch video, mix audio or change settings.


V-1SDI RCS Ver.1.5 supports sending a Still Image to the V-1SDI.*

The STILL IMAGE EDITOR allows both images and text to be edited making it ideal for easy, on-demand creation of subtitles and graphics. For integration with A/V control systems, the V-1SDI is equipped with a serial connection for control by industry standard RS-232 serial controls.

* The Still-image data is deleted, once the power is turned off.

• Support for SDI and HDMI cameras, smartphones, tablet computers and PCs etc.
• Easy to operate with hardware controls
• Compact size
• PSB-7U, provided AC adaptor or Battery operation
• Battery information
• Supports up to Full HD 1080p
• 3 x 3G-SDI and 2 x HDMI*1 inputs
• 2 x 3G-SDI and 1 x HDMI*1 output
• Input 4’s scaler now supports a wider range of video and VESA resolutions.*1 *2
• Quad input multi-viewer with source labelling and audio metering
• Composition effects including DSK (Downstream Keyer), picture-in-picture etc.
• Capturing a still Image from Input Video on channel 4*3 [Ver.1.5]
• Full 14 channel audio mixer included
• Software control using V-1SDI RCS application for Mac and PC and remote control via RS-232 connection

• Sending a still image to the V-1SDI by V-1SDI RCS*3 [Ver.1.5]
*1 HDCP Compliant
*2 Built-in EDID Emulator
*3 The Still-image data is deleted once the power is turned off.

Video
Video Processing 4:2:2(Y/Pb/Pr), 8-bit
Input Connectors SDI INPUT 1--3: BNC x 3
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI INPUT 3--4: Type A (19 pins) x 2
* HDCP Supported
* INPUT 3: SDI or HDMI selected.
Output Connectors SDI OUT PGM: BNC x 1
SDI OUT PVW: BNC x 1
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI OUT MULTI-VIEW: Type A (19 pins) x 1
* HDCP Supported
Input Formats SDI INPUT 1-3 Conforms to SMPTE 296M, SMPTE 274M
HDMI INPUT 3
720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080i or 1080p)
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).

HDMI INPUT 4
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p

VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)

WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz)

FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)

UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking.
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
Output Formats SDI OUT(PGM/PVW) Conforms to SMPTE 296M, 274M
HDMI OUT MULTI-VIEW
720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
1080/59.94i, 1080/50i SMPTE 274M(FORMAT switch = 1080i)
1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080p)
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
Video Effects Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types)
Composition: PinP, SPLIT, QUAD, DSK (Luminance Key, Chroma Key)
Audio
Audio Processing Sampling rate: 24bit/48kHz
Audio Formats SDI: Linear PCM, 24 bits/48 kHz, 2ch Conforms to SMPTE 299M
HDMI: Linear PCM, 24 bits/48 kHz, 2ch
Input Connectors Digital: SDI INPUT 1--3 (BNC) x 3 SMPTE 299M
HDMI INPUT 3--4 (HDMI Type A 19 pins) x 2

Analog: AUDIO IN (RCA phono type)
MIC (Stereo mini type, plug-in power supported)
Output Connectors Digital: SDI OUT PGM: BNC x 1 SMPTE 299M
SDI OUT PVW: BNC x 1 SMPTE 299M
HDMI OUT MULTI-VIEW: Type A (19 pins) x 1

Analog: AUDIO OUT (RCA phono type)
PHONES (Stereo mini type)
Input Level AUDIO IN: -10 dBu (Maximum: +8 dBu)
MIC: -41-- -13 dBu (Maximum: -1 dBu)
Input Impedance AUDIO IN: 15 k ohms, MIC:10 k ohms
Output Level AUDIO OUT: -10 dBu (Maximum: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance AUDIO OUT: 1k ohms, PHONES: 10 ohms
Audio Effects EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect
Others
Other Connectors USB: B Type (for remote control from PC)
RS-232: DB-9 type
Other Functions MEMORY (8 types)
FREEZE (input video captured)
OUTPUT FADE (Audio, Video: WHITE or BLACK)
Power Supply AC adaptor
Current Draw 2.1A
Power Consumption 25W
Operation Temperature +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions 313 (W) x 108 (D) x 59 (H) mm
12-1/3 (W) x 4-1/4 (D) x 2-1/3 (H) inches
Weight 1.2 kg (excluding AC adaptor) 2 lbs 10-2/5 oz
Accessories Owner’s Manual, AC Adaptor, Power Cord, Cord Hook
