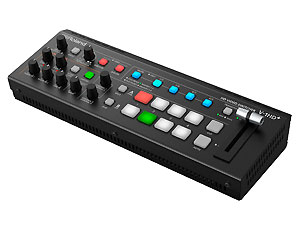

Roland V-1HD+ Compact and Portable HD Video Switcher

Roland V-1HD+ HD Video Switcher

Roland V-1HD+ Compact and Portable HD Video Switcher

Product Code: V-1HD+
Roaldn V-1HD+

review button

Features
• Compact and portable for fast set up
• Technology-assisted automatic video switching
• Pro audio I/O with legendary Roland sound quality
• Eight memory presets to recall visual layouts on cue


Switch, Mix, and Create Like a Pro

The Roland V-1HD+ is the ultimate compact A/V switching solution for serious visual storytellers. Elevate your creative production process with versatile I/O, a familiar user interface, deep control, and essential monitoring tools that help keep your content looking great and sounding perfect.

The Roland V-1HD+ delivers the superior performance you want and the production-critical reliability you demand—plus the Roland support and training resources you deserve.


Say Goodbye to Workflow Workarounds

While many video switchers promise easy workflows, they often require workarounds for optimum results. Too often, those workarounds force you into technical compromises and purchasing extra gear. With its feature-rich design, the Roland V1 HD Plus provides the key tools you need to get the job done right.


A Legacy of Success

Since its release in 2015, the Roland V-1HD has been the most popular high-definition, four-channel HDMI video switcher available. V1 HD Plus extends this legacy with a deeper feature set for advanced applications—while still maintaining the simple operation, pro performance, and rugged reliability that’s made the V-1HD a favorite of users around the world.


No-Compromise Video I/O

Video professionals shouldn’t be forced into making technical compromises. With its full-featured video I/O, the V1 HD Plus is inspired by your need to do more.


Four Video Inputs and Onboard Scaling

Four HDMI inputs with frame rate conversion let you mix a variety of sources, including cameras, presentation computers, tablets, and video game consoles. And when you have a troublesome source that won’t display correctly, simply plug it into Input 4 and let the built-in video scaler sync and calibrate the image automatically.


Two Video Outputs

Two independent HDMI outputs can be assigned to display one of three different video busses, providing the versatility you need for pro production. For example, you can use one as your main program output for a recorder or livestream, and the second output to turn any HD video monitor into an “up-next” input preview display or expanded multiviewer with 10 windows.


14-Channel Audio Mixing with Effects

The Roland V1HD Plus allows a single operator to do more than switch cameras—they can mix professional sound too. The integrated 14-channel digital audio mixer blends HDMI audio with mic and line sources, and also offers a variety of onboard effects to sweeten mixes.


Audio Inputs

With two XLR mic inputs and selectable phantom power, the V1HD Plus lets you bring pro-grade microphones into your productions, including condenser broadcast mics. There’s also an 1/8-inch input for a lavalier mic or stereo audio source like a smartphone, plus another stereo input on RCA jacks. Embedded stereo audio from the four HDMI inputs can be included in your mix as well.


Audio Outputs

With the Roland V-1HD+, there’s no need for a dedicated small audio console. Distribute analog sound to a PA system via two balanced ¼-inch TRS outputs, and use embedded digital audio in the HDMI outputs to feed recorders and livestream broadcasts.


Audio Effects

Leave the outboard gear in the recording studio—each audio input on the Roland V1HD Plus has its own three-band equalizer, high-pass filter, compressor, and noise gate, plus a sync delay to align audio with video if needed. The XLR and 1/8-inch inputs also include de-essers to clean up vocal sounds in real time. And with the limiter, three-band equalizer and compressor on the main outputs, you can deliver broadcast-quality sound every time.

Professional HD switching solution for live events, livestreaming, or both at once
Compact and portable for fast set up
Technology-assisted automatic video switching
Pro audio I/O with legendary Roland sound quality
Eight memory presets to recall visual layouts on cue
Standalone video switcher and 14-channel audio mixer for single operators
Familiar interface that’s quick to learn and easy to use
Four-layer effects and keying engine to engage audiences with graphics, lower thirds, and social callouts
Free iPad remote control app available

VIDEO
Video Processing 4:2:2 (Y/Pb/Pr), 8-bit
Input Connectors INPUT 1--3: HDMI type A x 3
*HDCP SupportedINPUT 4: HDMI type A
* HDCP Supported
* Multi-format Supported
Output Connectors OUTPUT 1--2: HDMI type A x 2
* HDCP Supported
Input Formats INPUT 1--3
720/59.94p, 720/60p *1, *3
720/50p *1, *4
1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
1080/50i, 1080/50p, 1080/25p *2, *4
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i or 1080p
*3 FRAME RATE = 59.94 Hz
*4 FRAME RATE = 50 HzINPUT 4
480/59.94i, 480/59.94p, 720/59.94p, 720/60p, 1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)
FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 HzStill Image:
Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
* It can store up to 4 files in the internal memory.
* PNG alpha channel not supported.
Output Formats OUTPUT 1--2:
720/59.94p *1, *4
720/50p *1, *5
1080/59.94i *2, *4
1080/50i *2, *5
1080/59.94p *3, *4
1080/50p *3, *5
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i
*3 SYSTEM FORMAT = 1080p
*4 FRAME RATE = 59.94 Hz
*5 FRAME RATE = 50 Hz
Video Effects Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types)
Composition: PinP (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer (Luminance key, Chroma key), DSK (Luminance key, Chroma key)
Other: Flip horizontal, Flip vertical, Still image capture, Still image playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
AUDIO
Audio Processing Sample rate: 24 bits/48 kHz
Audio formats Linear PCM, 24 bits/48 kHz, 2 ch
Input Connectors INPUT 1--4: HDMI Type A x 4
AUDIO IN 1--2: XLR-3-31 type (balanced, phantom power DC 48 V, 14 mA Max)
LINE IN: RCA phono type
MIC/AUX IN: Stereo miniature phone type (PLUG-IN power)
Output Connectors OUTPUT 1--3: HDMI Type A x 2
AUDIO OUT L, R: 1/4-inch TRS phone type
PHONES: Stereo miniature phone type
Nominal Input Level AUDIO IN 1--2: -60 to +4 dBu (Maximum input level: +24 dBu)
LINE IN: -10 dBu (Maximum input level: +10 dBu)
MIC/AUX IN: -51 to -10 dBu (Maximum input level: +10 dBu)
Input Impedance AUDIO IN 1--2: 10 k ohms
LINE IN: 15 k ohms
MIC/AUX IN: 10 k ohms
Nominal Output Level AUDIO OUT L, R: +4 dBu (Maximum output level: +24 dBu)
PHONES: 72 mW + 72 mW (32 ohms load)
Output Impedance AUDIO OUT L, R: 600 ohms
PHONES: 10 ohms
Audio Effects Delay, High pass filter, De-Esser, Compressor, Noise gate, Equalizer, Limiter, Reverb, Test tone output
OTHERS
Other Connectors USB MEMORY: USB A type (for USB flash drive)
REMOTE: USB B type (for remote control)
RS-232: DB-9 type (male, for remote control)
TALLY: DB-9 type (female, for TALLY output)
Other Functions Preset memory (8 types)
Panel lock function
EDID emulator
Auto switching
Auto input detect
Power Supply AC adaptor
Current Draw 2.1 A
Power Consumption 25.2 W
Operation Temperature +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions 316 (W) x 121 (D) x 65 (H) mm
12-1/2 (W) x 4-13/16 (D) x 2-9/16 (H) inches
Weight (excluding AC adaptor) 1.4 kg
3 lbs 2 oz
Accessories Startup Guide
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord* 0 dBu = 0.775 Vrms
All specifications and appearances are subject to change.
