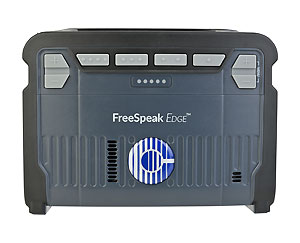

Clear-com FSE-BP50 FreeSpeak Edge 5.GHz
Multichannel Beltpack
Clear-com FSE-BP50 is a rugged, water-resistant
multi-channel beltpack that operates in the 5 GHz frequency range, coupled
with a dedicated modulation scheme to use signal reflection and multipath to
deliver low-latency, best-in-class 12 kHz audio and data for a premier
high-density wireless solution. The beltpack has an ergonomic design with
nine programmable keys, large color screen, dedicated A & B encoders,
individual level controls for C & D, a dedicated master volume control, and
a built-in mic and speaker station mode.
Operation
FreeSpeak Edge beltpacks can be supported by a
range of options, including the FreeSpeak
Edge Base Station, the Arcadia®
Central Station, and the Eclipse® HX digital matrix, all of
which support
the FSE-BP50 via the FSE-TCVR-50-IP transceiver (region specific). FSE-BP50
users can roam seamlessly between FSE-TCVR-50-IP transceivers over wide
areas. When configured by an Eclipse matrix, the system can scale up to meet
the needs of even the very largest productions.
Increase System Size
The FSE-BP50 can be mixed with FSII-BP19 and
FSII-BP24 beltpacks on the same system,
increasing the quantity of
beltpack users in a single deployment. Eclipse supports 64 FSE-BP50
beltpacks on one E-IPA-HX IP card, however systems utilizing multiple E-IPA
cards within a single Eclipse HX frame can support up to 200 beltpacks (see
Capacity Chart for details).
Durability
The FSE-BP50 is IP54 rated for wet weather or dusty
conditions, making it ideal for outdoor
productions. For better grip and
protection, the beltpack has a rubberized over-mold to
protect from the
most rugged environments.
Battery
Using the BAT80 Li-Ion battery, the FSE-BP50 has
12+ hours of battery. Housed within
the beltpack is a USB-C charging port
(cable included with package) for recharging or
for continuous powered
transmissions. The BAT80 can be charged within the AC80
battery charger.
Beltpack
• TFT color display
• 4 top buttons with individual level control
• 5
additional programmable buttons
• Rotary controls on both sides and up/
down level controls
• Master volume control on bottom
• Mic and
speaker mode
• Built-in flashlight
• Drop-in and USB-C charging
Connectivity
• Functions with FreeSpeak Edge base, Arcadia Central Station, and E-IPA-HX
cards
• 5 GHz radio frequency
• 20-27 radio channels (region specific)
• Robust radio link works in high multipath or reflective environments
•
Dual redundant radios
• 2.4 Ghz radio; beltpack pairing and firmware
updates over the air
• Low latency audio: < 35ms (60ms beltpack to
beltpack)
• Wi-Fi coexistence
• 5 GHz Scanner Mode - built in scanning
tool for selecting channels
• AES256 shared key encryption
Mechanical
• Curved shape fits to body
• IP54 rating for wet and dusty conditions
Audio
• Audio Bandwidth: 200 – 12kHz
• No. of Full-Duplex Audio
Paths: 9
• Mode of Operation: Full duplex on all routes
• Level/Talk Controls: 9 push buttons, 5 level controls (2
rotary and 2 button level controls, with 1 master level control)
•
Menu Button: 1
• Headset Connector: 4-pin male, Clear-Com
standard, options for 5-pin female and 7-pin male with PTT
•
Microphone Type: Electret and Dynamic, selectable in beltpack menu
• Headset Limiter: Selectable from beltpack menu
Radio
• Frequency Spectrum: 5170 -5875MHz (20MHz channels set by country)
• Output Power: Adjustable from 1 – 24dBm (Maximum output
power is determined by selected channel and country)
•
Modulation: OFDM
• Range: Typical indoor range 250ft (80m),
outdoor range 750ft (230m)
Battery
• Battery: 4400mAh
• Power: 16Wh
• Typical
Voltage: 3.6V
• Battery Life: 12 hours
Environmental
• IP54 water and dust resistance
• Operating: 32º to
113ºF (0º to 45ºC)
• Storage: -22º to 158ºF (-30º to 70ºC)
• Humidity: 20-90%, Non-Condensing
Dimensions
• 5.31 x 4.07 x 1.92in (WxHxD)
(134.87 x 103.34 x 48.77mm)
Weight
• Without Battery: 0.72lbs (0.37kg)
• With Battery:
0.96lbs (0.44kg)
