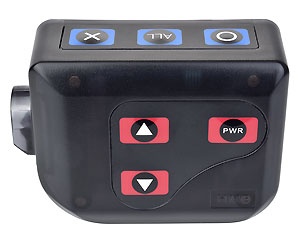

Clear-com BP340 2-Channel Beltpack
Clear-com BP340 is a rugged, light-weight,
ergonomically designed beltpack compatible with the DX340ES digital wireless
system. The BP340 operates in the license-free 2.4GHz frequency range and
are used with the BS340 base station.
• 2.4GHz license-free operation
• Up to 4 full-duplex or 15 half-duplex
beltpacks and/or all-in-one handsets per base station
• 7kHz wideband
audio
• Single or dual-channel operation
• Light-weight, compact
design, ergonomic design, weighing 7.4 oz
• Rugged and reliable
•
Voice prompts
• Internal antenna
• Up to 20 hours of battery life
•
Uses BAT41 Batteries and AC40 Battery Charger
System
• Frequency Range: All (2400 –
2483.5MHz), Low (2401.92 to 2439.936MHz) or High Band (2443.392 to
2481.408MHz)
• Frequency Response: 200Hz to 7kHz
•
Security: 64-Bit Encryption
• Temperature Range: -4 to131°F (-20
to 55°C)typical
• Transmit/Receive: Frequency-Hopping, Spread
Spectrum (FHSS)
• Transmit Power: 100mw Burst
• Modulation
Type: Gaussian Filtered FSK, TDMA
• Frequency Stability: 13ppm
• Harmonics/Spurious: Exceeds FCC and ETSI Specifications Over
Temperature
• RF Sensitivity: <-90dBm w 10-3 BER
• System
Distortion: <2%
• Dynamic Range: -90dBm to –20dBm
• FCC
Acceptance: Part 15
Beltpack
• Antenna
Type: Internal, Dual Diversity (beltpack)
• Transmission Modes:
Continuous (Latched) or Push-to-Talk (PTT)
• Mic Input: Electret
• Headset Output: 160mw into 32W
• Controls (Default):
Power-On/Off, Volume-Up/Down, IC-Talk, ISO-Relay
• Indicators:
Power/Transmit/Low Battery LED & Voice Prompts
• Beltpack Headset
Connector: Mini-DIN
• Beltpack Carrying Pouch: Santoprene
Battery Life
• Latched: Up to 14 Hours
•
PTT: Up to 20 Hours
• Dimensions 3.4 x 2.6 x 1.5in (WxHxD)
(86 x 66 x 38mm)
• Weight 7.4oz (0.21kg) with Battery & Pouch
