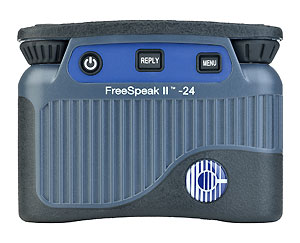

Clear-com FSII-BP24 FreeSpeak II 2.4GHz Beltpack
Clear-com FSII-BP24 is a rugged, water-resistant
beltpack that operates in the ISM licensefree 2.4 GHz frequency range.
Featuring the “Clear-Com Sound”, the FSII-BP24 has high audio bandwidth for
superior intelligibility and listening comfort.
Operation
The FSII-BP24 can connect to the FreeSpeak II Base
Station, FreeSpeak Edge Base Station, Arcadia Central Station or to the
Eclipse® HX matrices using the E-IPA-HX interface card. FSII-BP24 users can
roam seamlessly between FSII-TCVR-24 transceivers over wide areas. The
“Listen Again” feature allows users to replay earlier commands, eliminating
the need to repeat communication or disturb productions. Volume Swap allows
for independent level control on channels A, B, C, and D listens.
Increase System Size
The FSII-BP24 can be used interchangeably with any
other FreeSpeak II or FreeSpeak Edge beltpack on the same system. Depending
on what system you connect to, you can increase the quantities of beltpack
users that operate on a single system (see Capacity Chart for details).
Durability
The FSII-BP24 is IP53 rated for wet weather or
dusty conditions making it ideal for outdoor productions. For better grip
and protection, the beltpack has a rubberized over-mold to protect it from
the most rugged environments.
Battery
Using the BAT60 Li-Ion
battery, the FSII-BP19 has 18+ hours of battery life. Using an
alternative set of 3 AA cells, the battery life is 6-9 hours. The beltpacks
also include an USB charging port for recharging or for continuous powered
transmissions.
Beltpack
• Functions with FreeSpeak BASE-II, FreeSpeak Edge Base, Arcadia Central
Station and Eclipse HX via E-IPA cards
• 1.9, 2.4 and 5.0 GHz beltpacks
operate on a single system
• Supports up to 200 beltpacks on a single
system (see Capacity Chart for details)
• Encoder Volume Swap between A&C
and B&D
• “Listen Again” message replay
• Simple 2-channel partyline
operation to 5-channel intercom on the same beltpack
• Over-the-air
beltpack registration
Connectivity
• 1.9 GHz radio frequency
• Typical
range 300ft (90m), outdoor range 800ft (240m)
• Robust radio link works
in high multipath or reflective environments
• FSII 1.9 beltpacks
supports Bluetooth headset connection up to version 5.1
Mechanical
• IP53 rating for wet and dusty
conditions
• 18+ hour battery life or USB port for continuous operation
Compatible Headsets and Mics
CC-110
Audio
• Audio Bandwidth: 200Hz-7.5KHz
• No. of Full-Duplex
Audio Paths: Up to 5 with individual level control (2 dedicated
rotaries, 3 with menu), 2 controls and a main volume
• Mode
of Operation: Full duplex on all routes
• Level/Talk
Controls: 4 pushbuttons, a reply button and 2 rotary controls
•
Enter/Answer-Back Button: 1
Bluetooth 4.3 Headset Profile
Codec: MSBC using HFP (Hands Free Profile)
Frequency
Spectrum
USA, Canada, Mexico: 1920-1930 MHz
Transceiver Range Output Power: 100mW
EU, Russia, Ukraine,
Singapore, Hong Kong, Australia, New Zealand,
South Africa: 1880-1900
MHz
Transceiver Range Output Power: 250mW
Japan: 1893-1906 MHz
Transceiver Range Output Power: 250mW
Argentina: 1910 MHz-1930
MHz
Transceiver Range Output Power: 250mW
Brazil: 1910
MHz-1920 MHz
Transceiver Range Output Power: 250mW
Chile: 1910
MHz-1930 MHz
Transceiver Range Output Power: 70mW
Taiwan:
1880-1895 MHz
Transceiver Range Output Power: 250mW
Connectors
• Headset Connector: 4-pin male,
Clear-Com standard, options for 5-pin female and 7-pin male with PTT
• Headset Voltage: Maximum of ~+8dBu as set by firmware
• Microphone Type: Electret and Dynamic, selectable in
beltpack menu
• Microphone Voltage: Electret Mic:-45dBu
(additional 2.5V DC bias voltage positive on Pin 2 and negative on Pin 1
via a 1k resistor).
• Dynamic Mic: -55dBu
•
Headset Limiter: Selectable from beltpack menu
Power
• Modulation: GFSK, TDMA frame 10ms Full and Long
slot
• Output Power: (EU/Russia) 10dBm average, (US)
18-20dBm
• Range: Typical indoor range 300ft (90m), outdoor
range 800ft (240m)
• Battery: Li-Ion or 3 AA alkaline cells
• Battery Charging: Drop-in charger (AC60) or local USB
• Battery Life: 18+ hours with Li-Ion; 9 hours with 3 x
Alkaline AA cells
Environmental
•
IP53 water and dust resistance
• Operating: 32º-125ºF
(0º-50ºC)
• Storage: 32º-150ºF (0º-70ºC)
•
Humidity: Between 20% and 90%, Non-Condensing
Dimensions
• Tapered design at largest points
3.75 x 5 x
1.5in (HxWxD)
(97 x 130 x 45mm)
Weight
• 9.0oz (0.4kg) including batteries
