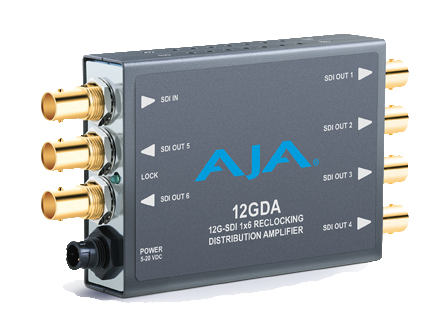

 AJA 12GDA is a miniature 1x6 12G-SDI re-clocking distribution amplifier

AJA 12GDA Distribution Amplifier
Product Code:12GDA
Buy Sell Sales AJA 12GDA Distribution Amplifier
review button

AJA 12GDA is a miniature 1x6 12G-SDI re-clocking distribution amplifier that allows facilities to save on cable runs and install times. With support for 12G-SDI for 4K/UltraHD single link workflows, the format-agnostic device features six separately buffered SDI outputs identical to the recovered input. It also offers automatic input detection, re-clocking and cable equalization, as well as a throw down package and LED signal detection indicator.

Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Quality - Guaranteed
All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

Features
• Compact 12G-SDI distribution
• Six separately buffered outputs
• Miniature size
• 12G cable equalization (1694 coax)
• 12 Gbps, 90m
• 6 Gbps, 125m
• 3 Gbps, 160m
• 1.5 Gbps, 200m
• 270 Mbps, 470m
• 12G/6G/3G/HD/SD-SDI input, auto sensing
• Passes all ancillary data
• DWP-U-R1 power supply included
• Five year warranty


Technical Specifications
Video Formats 100 Mbps - 12 Gbps, format agnostic
Video Input Digital 1 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
Video Output Digital 6 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
Cable Equalization (Belden 1694A coax)
• 270 Mbps, 470m
• 1.5 Gbps, 200m
• 3 Gbps, 160m
• 6 Gbps, 125m
• 12 Gbps, 90m
Reclocking 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
All other rates are passed through and not reclocked
Size (w x d x h) 5.8" x 3.1 x 1" (147mm x 79mm x 25mm)
Weight 0.7 lb (0.3 kg)
Power +5-20VDC, regulated, 3 watts, power supply required, included with purchase
AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)

AJA

Digital Recorders

Ki Pro Ultra 12G
Ki Pro Go
Ki Pro Rack

Mobile I/O

Io 4K Plus
Io X3
T-TAP PRO
U-TAP SDI
U-TAP HDMI

Desktop I/O

Kona X

Kona 5

Kona 4

Kona HDMI

Kona 1

Kona LHi

Kona LHe Plus

Streaming

HELO PLUS

Io 4K Plus

Io X3

U-TAP SDI

U-TAP HDMI

Frame Sync

FS HDR
FS 4
FS 2
FS 1-X
FS Mini

Routers

KUMO CP

KUMO CP2

KUMO 1616-12G

KUMO 3232-12G

KUMO 1616

KUMO 3232

KUMO 6464

OpenGear

OG-X-FR
OG-DANTE-12GAM
OG-12GM
OG-FS-MINI
OG-12GDA-2X4
OG-3GDA-2X4
OG-3GDA-1X9
OG-3G-AMA
OG-3G-AMD
OG-Hi5-12G
OG-Hi5-4K-Plus
OG-HA5-4K
OG-ROI-HDMI
OG-ROI-SDI
OG-UDC
Mini Converters
FiDO HA5
D5PSW Hi5
D10A Hi5 3D
D10CE Hi5 Fiber
D10C2 Hi5 3G
D10AD HD10AVA
D4E HD10CEA
D5CE HD10C2
D5D HD10A
D10CEA HD5DA
UDC HD10DA
ADA4 HD10MD3
3GM HD10AM
3GDA HD10AMA
GEN10 HDP2
HA5-4K HA5-PLUS
Hi5-4K Hi5-PLUS
4K2HD HD10MD4
HD10A-PLUS ROI-DVI
ROI-DP ROI-HDMI
V2Analog V2Digital
LUT Box HB-T-HDMI
HB-R-HDMI HB-T-SDI
HB-R-SDI FiDO-4R
FiDO-4T FiDO-4R-ST
FiDO-4T-ST FiDO-R
FiDO-T FiDO-TR
FiDO-2R FiDO-2T
FiDO-R-SC FiDO-T-SC
FiDO-R-ST FiDO-T-ST
FiDO-2T-CWDM OG-3-FR
OG-1x9-SDI-DA OG-FIBER-2T
OG-FIBER-2R 3G-AM
3G-AMA D5DA
DRM 12GDA
12GM Hi5-4K-Plus
IPR-10G2-SDI IPR-10G2-HDMI
AJA 12GDA SD-SDI Distribution Amplifier
review button
** Admin **
While there are a lot of good reasons to sell AJA’s new 12G converters, such as build quality, signal integrity, 5 year warranty with advanced exchange, the 12GM and the 12GDA have more one compelling reason to be sold: they can support much longer cable distances than their rivals. Using just standard 1694A Belden cabling, the 12GM and 12G DA are conservatively rated for distances of 70 meters.

We also use the same reclocking device in our 12G FiDO products, our fiber to SDI / SDI to fiber family, so that once the you convert from fiber to 12G, or you use the loop through of your incoming 12G signal, you can expect to get at least 70m distance.

This is a very important competitive advantage to raise with customers who are looking for these types of solutions, and who need reliability over longer cable runs.
