OG-Hi5-4K-Plus 3G-SDI
to HDMI 2.0 Converter

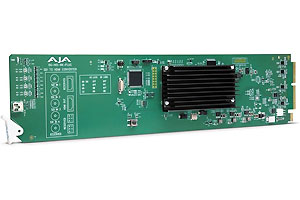

AJA OG-Hi5-4K-Plus is an
openGear card that offers 3G-SDI to HDMI 2.0
conversion for 4K/UltraHD/2K/HD/SD sources,
supporting up to 60p from professional 4K/UltraHD
devices when monitoring to HDMI 2.0 displays.
OG-Hi5-4K-Plus generates HDR metadata in accordance
with HDMI v2.0a/CTA-861.3 and offers a simple
monitoring connection from 4K devices with Quad
3G-SDI or Dual 3G-SDI outputs to compatible HDMI 2.0
displays, with two sample interleave (2SI) or square
division (Quadrant) source mapping.
Designed
for use in high-density openGear 2RU frames
including AJA?s OG-3-FR 2RU frame, new DashBoard
Software support on Windows?, macOS? and Linux?
offers remote control and monitoring of the openGear
architecture and provides convenient and
industry-standard configuration, monitoring and
control options over a PC or local network.
Connectivity
The latest generation of
affordable 4K monitors utilize an HDMI 2.0
connection, which allows a full 4K signal to be
passed over a single cable. Typical professional 4K
workflows use four SDI cables to carry the full
resolution image, making it difficult to incorporate
these newer monitors. AJA 3G-SDI to HDMI 2.0
Converter is an easy-to-use converter that bridges
the gap between these two worlds for seamless
integration.
HDR
AJA 3G-SDI to HDMI 2.0
Converter HDR or High Dynamic Range, provides the
ability to display a wider and richer range of
colors, much brighter whites, and much deeper,
darker blacks than standard signals allow. This
gives your imagery a more ?dynamic? look and allows
for natural true to life colors to be communicated
to your audience.
AJA OG-Hi5-4K-Plus 3G-SDI to
HDMI 2.0 Converter
AJA OG-Hi5-4K-Plus
provides this support for your 4K/UltraHD/HD HDR
pipelines to?HDMI compatible displays by generating
HDR metadata in accordance with HDMI
v2.0a/CTA-861.3. OG-Hi5-4K-Plus also provides
support for Hybrid Log-Gamma (HLG) HDR displays over
HDMI.
4K and UltraHD
Typical 4K signals use a
resolution of 4096×2160 pixels while UltraHD signals
measure 3840×2160. This difference can prevent some
monitors from being used either in full 4K workflows
or in UltraHD workflows. OG-Hi5-4K-Plus can
compensate for these resolution differences,
allowing UltraHD monitors to be used in 4K
productions and vice versa.
OG-Hi5-4K-Plus
also supports High Frame Rate (HFR) inputs.
4K/UltraHD signals at 50 or 60p can be fed into
OG-Hi5-4K-Plus and output at up to 60p for viewing
with appropriate HDMI 2.0 capable displays.
HD Support
Not every job is a 4K job.
When you’re not working in 4K, OG-Hi5-4K-Plus can
still be a useful tool for converting HD-SDI to
HDMI. A single HD-SDI signal coming into the
OG-Hi5-4K-Plus will be sent out as an HD resolution
HDMI signal.
Features:
• openGear compatible
card
• Convert Quad 3G-SDI to HDMI 2.0 at up to
4K 60p
• Support for 4:2:2/4:4:4 HDMI 2.0 output
• Supports 12-bit workflows
• HDR signaling
metadata pass-through and optional override
• HDR
support for HDR10 and HLG
• Embedded audio
support 8-channel 24-bit
• Embedded audio
pass-through of AC-3 (Dolby Digital) and E-AC-3
(Dolby Digital Plus) compressed audio, including DD+
Atmos (aka DD+ JOC)
• Remote Ethernet
configuration through Ross DashBoard software
•
Power: 12 watts
• Hot-swappable
• Rear I/O
card included
• Two slots required for each card
• Compatible with OG-X-FR, OG-3-FR and DFR-8321
openGear frames
| Video Formats |
(4K) 4096 x 2160p
(UltraHD) 3840 x 2160p
(2K) 2048 x 1080p
(HD) 1920 x 1080p
(HD) 1920 x 1080i
(HD) 1280 x 720p
(SD) 720 x 576i
(SD) 720 x 480i |
| Video Input Digital |
4x 3G-SDI BNC, SMPTE-259/292/424
YCbCr 4:2:2/4:4:4
RGB 4:4:4, SMPTE or Full level
8 or 10-bit
Two Sample Interleave (2SI) or Square Division (Quadrant) source mapping
4x 3 Gb SDI (Level A or B-Dual Link)
- (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (4K) 4096 x 2160PsF* 23.98, 24, 25, 29.97, 30
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (Ultra HD) 3840 x 2160PsF* 23.98, 24, 25, 29.97, 30
4x 1.5 Gb SDI
- (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
- (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
- (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
2x 3 Gb SDI (Level B-Dual Stream)
- (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
- (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
- (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
1x 3 Gb SDI (Level A or B-Dual Link)
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p** 50, 59.94, 60
2x 1.5 Gb SDI
- (HD) 1920 x 1080p 50, 59.94, 60
1x 1.5 Gb SDI
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
- (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
1x 270 Mb SDI
- (SD) 625i 50
- (SD) 525i 59.94
*PsF is Level B-Dual Link
**1280 x 720p is Level A Only |
| Video Output Digital |
1 x HDMI Type A connector*, HDMI v2.0
YCbCr 4:2:2/4:4:4/4:2:0
RGB 4:4:4, SMPTE or Full level
8 or 10-bit (HFR 4K/UltraHD 4:4:4 limited to 8 bit)
HDR Infoframe generation as defined in CTA-861.3 and HDMI v2.0a
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60
(SD) 720 x 576i 50
(SD) 720 x 480i 59.9*If a connected monitor doesn?t support HDMI
protocol the unit automatically switches to DVI protocol (which does not pass
audio) |
| Audio Input Digital |
SDI embedded audio, 24-bit, 8-Channel |
| Audio Output Digital |
HDMI embedded audio, 24-bit, 8-Channel |
| Audio I/O |
8-Channel embedded SDI audio input
8-Channel HDMI audio output |
| User Controls |
openGear DashBoard network control software via Windows, macOS or Linux |
| Size (w x d x h) |
openGear standard form factor, front slot and rear card. Two slots required for each card. |
| Weight |
0.5 lb (0.3 kg) |
| Power |
openGear frame compatible, 12.0 watts max per card |
| Environment |
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet) |
|
