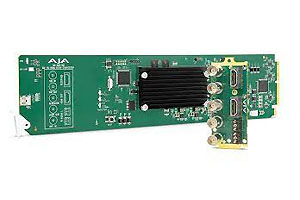

OG-ROI-SDI 3G-SDI to
3G-SDI/HDMI Scan Converter
AJA OG-ROI-SDI is an
openGear card that allows exceptionally high-quality
scan conversion of SDI inputs to 3G-SDI and HDMI
baseband video outputs. With incredible
region-of-interest image scaling as well as aspect
ratio and frame rate conversion, OG-ROI-SDI fulfills
the growing need to properly incorporate extractions
from 3G-SDI sources into 3G-SDI and HDMI feeds
without sacrificing budget or space.
Region of
Interest
Eliminate extra interface
clutter and menu bars and extract only the portion
of the computer screen you want.
OG-ROI-SDI
is fully compatible with the free Ross DashBoard
application, offering interactive selection of a
Region of Interest from the incoming computer
signal. You have full control over how that region
is scaled to the output resolution using AJA’s high
quality scaling algorithms for the cleanest picture
quality possible.
Take full
control of aspect ratio, image rotation and frame
rate conversion with on-screen controls in the
DashBoard software that shows you what your source
and output will look like, including the formats
that are coming in and the choices you have made for
the signal going out.
Audio
OG-ROI-SDI accepts
2-channel analog audio from the 2x 3-pin terminal
blocks connectors or embedded 8-channel audio from
an SDI input. The audio source and routing can be
selected in the DashBoard software and is embedded
into the SDI output. This allows computer audio to
be embedded within the SDI signal for easy,
synchronized routing.
Features:
• openGear
compatible card
• SDI to HDMI/3G-SDI
conversion with SDI loop through
• Scan
Converter
• 3G-SDI and HDMI 1.4 outputs
•
Supports SD, HD, and 3G formats (see Tech Specs for
complete list)
• Region of Interest scaling
•
Up, down, cross-conversion
• Aspect ratio
conversion
• Frame rate conversion
•
Image H/V flip and 90 degree rotation
•
Conversion between Deinterlaced and Progressive
signals
• Accepts input SDI formats up to
1920 x 1080p 60 Hz
• Loss of Input
management: Black, Freeze, or Mute
•
Supports 8-channels of embedded audio
•
2-channel analog audio output of disembedded audio
•
Genlock: Reference Input, SDI Input, or Free Run
•
Remote Ethernet configuration through Ross DashBoard
software
• Power: 7 watts
•
Hot-swappable
• Rear I/O card included
•
Two slots required for each card
•
Compatible with OG-X-FR, OG-3-FR, and DFR-8321
openGear frames
| Video Input Formats |
- Video Signals:
- (HD) 1920x1080i 50, 59.94
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1280x720p 50, 59.94, 60
- (SD) 625i, 50
- (SD) 525i, 59.94
|
| Video Output Formats |
- (HD) 1920x1080p 50, 59.94, 60, SMPTE 425-1 Level A mapping structure 1 (4:2:2 10-bit YCbCr)
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080i 50, 59.94, 60
- (HD) 1280x720p 50, 59.94, 60
- (SD) 625i 50
- (SD) 525i 59.94
|
| Color Range |
|
| Reference Source |
|
| Reference Input |
- Supported reference video inputs include:
- 1080i tri-level sync
- 1080p tri-level sync
- 720p tri-level sync
- 625i Color Black
- 525i Color Black
- 75 ohm terminating
|
| Video Input |
1x 3G-SDI BNC, SMPTE-259/292/424 |
| Video Outputs |
- 1x 3G-SDI BNC, loop through
- 1x 3G-SDI BNC, SMPTE-259/292/424
- 1x HDMI Type A, HDMI v1.4
|
| Audio I/O |
- 24-bit, 16-channel embedded SDI audio input
- 24-bit, 16-channel embedded SDI audio output
- 24-bit, 8-channel HDMI audio output
- Balanced analog audio outputs, 2x 3-Pin terminal block connectors
|
| User Interface |
openGear DashBoard network control software via Windows, macOS or Linux |
| Size (w x d x h) |
openGear standard form factor, front slot and rear card. Two slots required for each card. |
| Weight |
0.5 lb (0.3 kg) |
| Power |
openGear frame compatible, 7.0 watts max per card |
| Environment |
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
|
|
