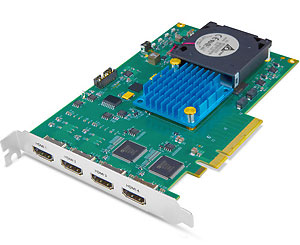

AJA Kona HDMI Multichannel 4K/HD/SD HDMI Capture Card
Product Code: KONAHDMI
Features
• 4K/UltraHD/2K/HD/SD up
to 50/60p
• 4x full-size HDMI inputs each with 8-channel embedded audio
•
Simultaneous capture of 2x 4K/UltraHD or 4x 2K/HD
• HDMI 2.0 (port 1 & 2) and
HDMI 1.4b (ports 3 & 4)
• RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR
workflows supported
|
AJA KONA HDMI is an 8-lane PCIe 2.0 multi-channel HDMI
capture card, with all of the quality and flexibility you have come to expect
from AJA. Multi-Channel HD Capture and StreamingAJA KONA HDMI is perfect for live streaming and
switching with up to 4-channels of 1080p HDMI video capture, all on one
card. 4K/UltraHD Capture up to 60pAJA KONA HDMI offers unique and powerful single
channel 4K/UltraHD capture all the way up to 60p over HDMI 2.0. HDRHDR or High Dynamic Range, provides the ability to
display a wider and richer range of colors, much brighter whites, and much
deeper, darker blacks than standard signals allow. This gives your imagery a
more ‘dynamic’ look and allows for natural true to life colors to be
communicated to your audience.
|
| Video Formats | (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50,
59.94, 60 (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (2K) 2048 x 1080PsF 23.98, 24, 25 (HD) 1080i 50, 59.94, 60 (HD) 1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 720p 50, 59.94, 60 (SD) 625i 50 (SD) 525i 59.94 |
| Video Input Digital | Port 1 and Port 2 Support up to 4K/UltraHD 60p, 4:2:2, 10-bit 30/36-bits/pixel, RGB or YUV, 6 Gbps per color component Port 3 and Port 4 Support up to 2K/HD 60p, 4:2:2, 10-bit 30/36-bits/pixel, RGB or YUV, 2.25 Gbps per color component Ports can be used individually or together simultaneously: Dual or single* stream 4K/UltraHD Quad, triple, dual, or single* stream 2K/HD/SD** Mixed stream supporting 1x 4K/UltraHD and 2x 2K/HD/SD with HFR support up to 60p, 4:2:2, 10-bit *Using AJA Control Room, industry standard NLEs. Note: Some use cases above require appropriate third-party multi-channel capture/switching software. |
| HDR | HDMI: HDR10 Support - HDR Infoframe metadata,
compatible with HDMI 2.0a/CTA-861.3 HDMI: HLG Support - compatible with HDMI 2.0b/CTA-861-G Note: HDR support is application dependent. Check with your software manufacturer for compatibility. |
| Audio Input Digital | 8-channel, 16 and 24-bit HDMI embedded audio, 48
kHz sample rate, synchronous per HDMI Input Single stream input supports up to 8-channels Quad stream input supports up to 32-channels |
| Electrical Interface | 8-lane PCIe 2.0 |
| Size (w x d x h) | 0.75" x 6.5" x 5.0" (19.05 x 165.1 x 127.0 mm) |
| Weight | 0.3 lb (0.2 kg) |
| Power | 22W typical, 25W maximum |
| Environment | Safe Operating Temperature: 0 to 40 C (32 to 104
F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet) |
