AJA OG-12GM 12G-SDI
to/from SDI Muxer/DeMuxer

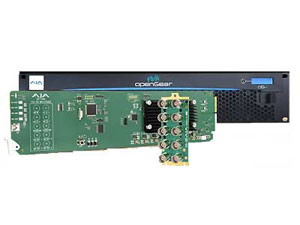

AJA OG-12GM is a compact
SDI transport openGear card that enables 12G-SDI to
quad link 3G-SDI and quad link 3G-SDI to 12G-SDI
conversion. The muxer/demuxer supports 4K, UltraHD,
2K, HD and SD workflows and conversions from quad
link SDI signals to single link SDI signals, and
vice versa at 12G, 6G, 3G and 1.5G bit rates, as
well as dual link conversions. Both Square Division
(Quadrant) and Two Sample Interleave (2SI) input and
output mappings are supported.
AJA openGear
products are designed for use in high density
openGear 2RU frames including AJA’s OG-X-FR frame,
with industry standard DashBoard software support on
Windows, macOS and Linux, offering remote control
and monitoring over a PC or local network.
Features:
• openGear compatible card
• SDI
Transport Converter for 12G, 6G, 3G and 1.5G-SDI
• Supports multiple types of Quad, Dual, and Single
type conversions
• Two Sample Interleave (2SI)
to/from Square Division (Quadrant) pixel mapping
• 3G-SDI Level A to/from 3G-SDI Level B Dual Link
(DL)
• 3G-B Dual Stream Support
• Simple Frame
Rate Conversion (FRC)
• HDR signaling metadata
pass-through and optional override
• Pass-through
of Single Link 12G, 6G, 3G, 1.5G and 270M SDI video
• Distribution Amplifier support (1x4)
• Input
signal diagnostics and timing analyzer for quad link
signals
• Automatic or manual control
•
Detailed timing analysis for validating alignment of
quad link SDI inputs
• Passes SDI embedded audio,
24-bit, up to 16-Channels
• Remote Ethernet
configuration through Ross DashBoard software
•
Power: 13 watts
• Hot-swappable
• Rear I/O
card included
• Two slots required for each card
• Compatible with OG-X-FR and OG-3-FR openGear
frames
| Video Formats |
- (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
- (2K) 2048 x 1080p 50, 59.94, 60
- (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
- (SD) 625i 50
- (SD) 525i 59.94
- YCbCr 4:2:2/4:4:4
- RGB 4:4:4, SMPTE or Full level
- 10 or 12-bit
|
| Video Input and Output Digital |
- 4x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
- Single Link 12G/6G/3G/1.5G-SDI
- Dual Link 2x6G/2x3G/2×1.5G-SDI
- Quad Link 4x3G Level A or B Dual Link/4×1.5G-SDI
|
| Supported Conversions and Functions |
- Quad 3G-SDI Level A to Single 12G-SDI
- Quad 3G-SDI Level B Dual Link to Single 12G-SDI
- Single 12G-SDI to Quad 3G-SDI Level A
- Single 12G-SDI to Quad 3G-SDI Level B Dual Link
- Quad 3G-SDI Level A to Dual 6G-SDI
- Quad 3G-SDI Level B Dual Link to Dual 6G-SDI
- Dual 6G-SDI to Quad 3G-SDI Level A
- Dual 6G-SDI to Quad 3G-SDI Level B Dual Link
- Dual 3G-SDI Level A to Single 6G-SDI
- Dual 3G-SDI Level B Dual Link to Single 6G-SDI
- Single 6G-SDI to Dual 3G-SDI Level A
- Single 6G-SDI to Dual 3G-SDI Level B Dual Link
- Quad 1.5G-SDI to Single 6G-SDI
- Single 6G-SDI to Quad 1.5G-SDI
- Dual 1.5G-SDI to Single 3G-SDI Level A
- Dual 1.5G-SDI to Single 3G-SDI Level B Dual Link
- Single 3G-SDI Level A to Dual 1.5G-SDI
- Single 3G-SDI Level B Dual Link to Dual 1.5G-SDI
- Quad 3G-SDI Level A to Quad 3G-SDI Level B Dual Link
- Quad 3G-SDI Level B Dual Link to Quad 3G-SDI Level A
- Two Sample Interleave (2SI) to Square Division (Quadrant) pixel mapping
- Square Division (Quadrant) to Two Sample Interleave (2SI) pixel mapping
- HDR VPID pass-through or override for Colorimetry and Transfer Characteristic
- Pass-through of Single Link 12 Gbps, 6 Gbps, 3 Gbps, 1.5 Gbps, and 270 Mbps SDI video
- Distribution Amplifier support (1×4)
- Input signal diagnostics
- Input timing analyzer for Quad Link signals
|
| Cable Equalization |
(Belden 1694A coax)
- 12 Gbps, 70m
- 6 Gbps, 100m
- 3 Gbps, 140m
- 1.5 Gbps, 200m
- 270 Mbps, 300m
|
| Audio Input/Output Digital |
Passes SDI embedded audio, 24-bit, up to 16-channels |
| User Interface |
openGear DashBoard network control software via Windows, macOS, or Linux |
| Size (w x d x h) |
- openGear standard form factor, front slot and rear card.
- Two slots required for each card.
|
| Weight |
0.5 lb (0.3 kg) |
| Power |
openGear frame compatible, 13.0 watts max per card |
| Environment |
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
|
|
