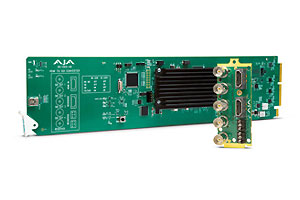

OG-HA5-4K High Quality
HDMI 2.0 to 3G-SDI Converter
Featuring four 3G-SDI
outputs, the openGear compatible AJA OG-HA5-4K
enables high quality conversion of HDMI 2.0 video
from DSLRs, mirrorless cameras, action cameras, or
prosumer 4K video cameras to 4K/UltraHD 3G-SDI for
use in professional workflows.
Designed for
use in high-density openGear 2RU frames including
AJA?s OG-3-FR 2RU frame, new DashBoard Software
support on Windows?, macOS? and Linux? offers remote
control and monitoring of the openGear architecture
and provides convenient and industry-standard
configuration, monitoring and control options over a
PC or local network.
Connectivity
An increasing number of 4K
products utilize an HDMI output connection, which
allows a full 4K signal to be passed over a single
cable. Typical professional 4K workflows use four
SDI cables to carry the full resolution image,
making it difficult to incorporate these newer
devices. AJA OG-HA5-4K is an easy-to-use converter
that bridges the gap between these two worlds for
seamless integration.
HDR
HDR or High Dynamic Range,
provides the ability to display a wider and richer
range of colors, much brighter whites, and much
deeper, darker blacks than standard signals allow.
This gives your imagery a more ?dynamic? look and
allows for natural true to life colors to be
communicated to your audience.
AJA OG-HA5-4K
provides support for analyzing HDR infoframe data
coming in over HDMI when used with DashBoard
software.
4K and UltraHD
OG-HA5-4K supports
conversion of full resolution 4K (4096×2160) as well
as UltraHD (3840×2160) from HDMI to 3G-SDI at frame
rates up to 50/60 fps, providing a great solution
for cinematic 4K productions as well as UltraHD
projects.
Features:
• openGear compatible
card
• Convert HDMI 2.0 to Quad-3G, 4K/UltraHD 60
fps at 4:4:4, 4:2:2, and 4:2:0
• Supports Two
Sample Interleave (2SI) and Square Division
(Quadrant) output pixel mapping
EDID Emulation
• Displays HDR Infoframe data coming in over HDMI in
accordance with HDMI v2.0b/CTA-861-G
• HDR
Metadata VPID Pass-through and optional override
• Simple Frame Rate Conversion (FRC)
• Embedded
audio support 8-channel 24-bit
• Embedded audio
pass-through of AC-3 (Dolby Digital Plus) and E-AC-3
compressed audio, including DD+ Atmos (aka DD+ JOC)
• Remote Ethernet configuration through Ross
DashBoard software
• Power: 10 watts
•
Hot-swappable
• Rear I/O card included
• Two
slots required for each card
• Compatible with
OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
| Video Formats |
(4K) 4096 x 2160p
(UltraHD) 3840 x 2160p
(2K) 2048 x 1080p
(HD) 1920 x 1080p
(HD) 1920 x 1080i
(HD) 1280 x 720p
(sD) 720 x 576p
(sD) 720 x 576i
(SD) 720 x 480p
(SD) 720 x 480i |
| Video Input Digital |
1x HDMI Type A connector, HDMI v2.0
YCbCr 4:2:2/4:4:4/4:2:0
RGB 4:4:4, SMPTE or Full level
8, 10, or 12-bit (HFR 4K/UltraHD 4:4:4 limited to 8 bit)
HDR Infoframe decoder as defined in CTA-861.3 and HDMI v2.0a
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60
(SD) 720 x 576p 50
(SD) 720 x 576i 50
(SD) 720 x 480p 59.94
(SD) 720 x 480i 59.94 |
| HDCP Decryption |
Not supported. By definition, SDI outputs are unencrypted. |
| Video Output Digital |
4x 3G-SDI BNC, SMPTE-259/292/424
YCbCr 4:2:2/4:4:4
RGB 4:4:4, SMPTE or Full level
10-bit
Two Sample Interleave (2SI) or Square Division (Quadrant) source mapping
4x 3 Gb SDI (Level A or B-Dual Link)
- (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (4K) 4096 x 2160PsF* 23.98, 24, 25, 29.97, 30
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (Ultra HD) 3840 x 2160PsF* 23.98, 24, 25, 29.97, 30
4x 1.5 Gb SDI
- (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
- (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
- (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
2x 3 Gb SDI (Level B-Dual Stream)
- (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
- (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
- (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
1x 3 Gb SDI (Level A or B-Dual Link)
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p** 50, 59.94, 60
1x 1.5 Gb SDI
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
- (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
1x 270 Mb SDI
- (SD) 625i 50
- (SD) 525i 59.94
*PsF is Level B-Dual Link
**1280 x 720p is Level A Only |
| Audio Input Digital |
HDMI embedded audio, 24-bit, 8-Channel |
| Audio Output Digital |
SDI embedded audio, 24-bit, 8-Channel |
| Audio I/O |
8-Channel embedded SDI audio output
8-Channel HDMI audio input |
| User Interface |
openGear DashBoard network control software via Windows, macOS or Linux |
| Size (w x d x h) |
openGear standard form factor, front slot and rear card. Two slots required for each card. |
| Weight |
0.5 lb (0.3 kg) |
| Power |
openGear frame compatible, 10.0 watts max per card |
| Environment |
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet) |
|
